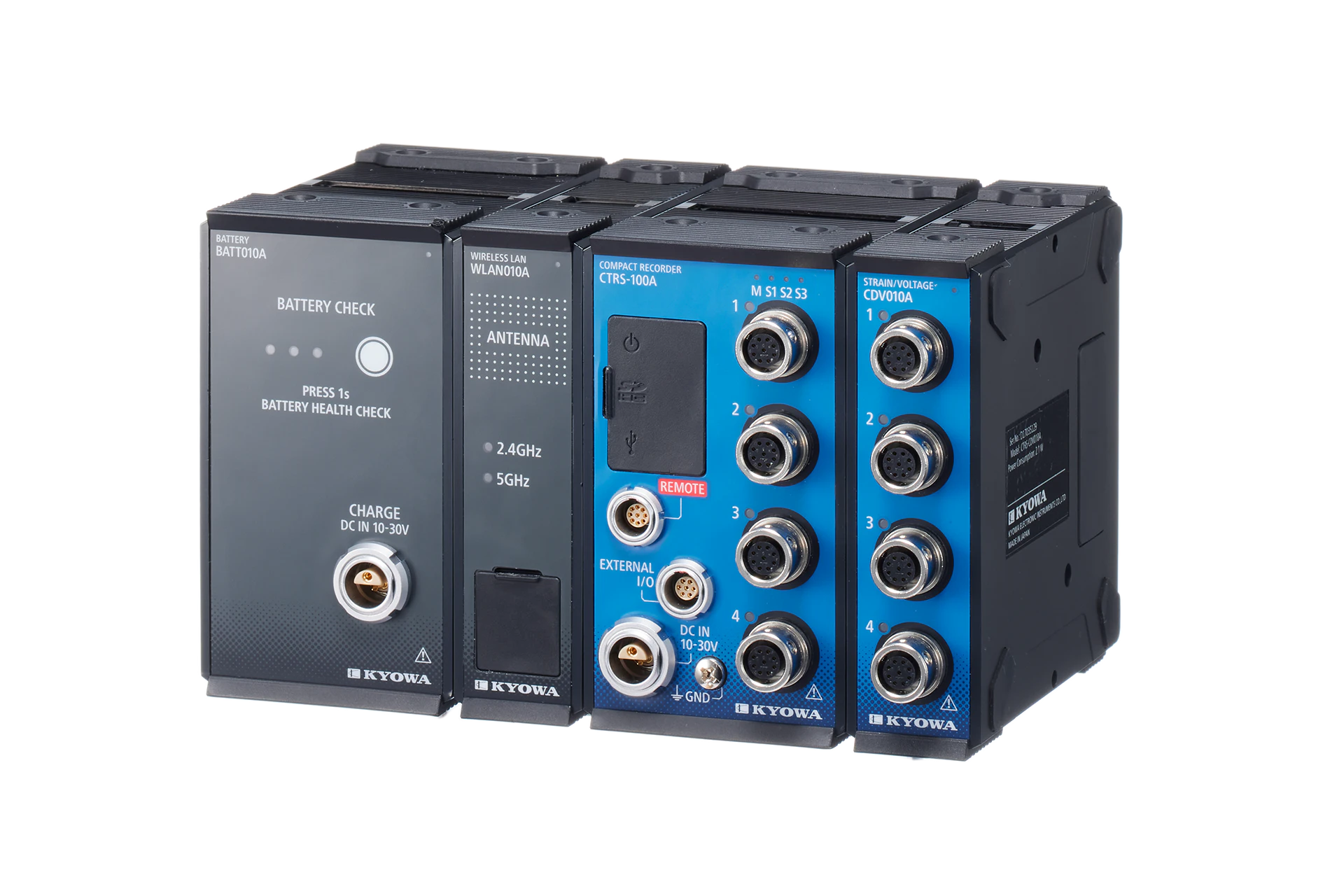

CTRS-100 Series Compact Recorder
This Compact Recorder CTRS-100 Series is a compact, lightweight and impact-resistant construction, this can be applied to measurements of various stress in environments where exposed to vibrations and impact in limited spaces such as driving test of two-wheeled vehicles and on actual ships, and to measurements on table-tops.
CTRS-100A, Compact Recorder, 4 channels
USB Connector: Micro USB Type-B
Number of Units that Can be Connected:
Measuring Unit: Up to 7 units can be connected per CTRS-100A (Total of 32 channels)
Expansion Unit: Up to 5 units can be connected per CTRS-100A.
Frequency:
- [1-2-5 series] 1, 2, 5, 10, 20, 50, 100, 200, 500, 1k, 2k, 5k, 10k, 20k, 50k, 100k Hz
- [2n series] 4, 8, 16, 32, 64, 128, 256, 512, 1024, 2048, 4096, 8192, 16384, 32768, 65536 Hz
CTRS-CDV010A, Strain/Voltage Unit, 4 channels
Measuring Target:
- Strain Measuring
- Strain gages
- Strain Transducers
- Voltage
CTRS-CVPS010A, Voltage Unit, 4 channels Isolated input circuit
Measuring Target:
- Voltage
CTRS-CTA010A, Thermocouple Unit, 4 channels
Measuring Target: Thermocouples
Measuring Range:
- K -200.0 to 1370.0°C
- T -200.0 to 400.0°C
- J -200.0 to 1200.0°C
- N -200.0 to 1300.0°C
CTRS-CAG010A, CAN Unit, 2 Ports
Communication Speed: 1000, 800, 500, 250, 125, 100, 83.3, 62.5, 50, 33.3, 25, 20, 10 kbps
CTRS-BATT010A, Lithium-ion Battery Unit
CTRS-SYNC010A, Synchroniztion Unit
CTRS-WLAN011A, Wireless LAN Unit
Supported Function:
- Collection of collected data
- Setting of measurement conditions
- Real-time monitoring
CTRS-RCU010A, Remote Control Unit
