Siglent
SDS1000CML+ Series
Digital Storage Oscilloscopes

  • 100, 150 MHz bandwidth models
  • Real-time sampling rate up to 1 GSa/s, Equivalent-time sampling rate up to 50 GSa/s
  • Memory Depth up to 2 Mpts
  • Trigger types: Edge, Pulse, Video, Slope, Alternate
  • Waveform math functions:+, -, *, /, and FFT
  • 6 digit frequency counter

Description

Product Overview

SIGLENT’s SDS1000CML+ Digital Oscilloscopes are dual-channel oscilloscopes, available in 100, and 150 MHz bandwidth models. The SDS1000CML+ includes a 2 Mpts memory depth that helps to ensure accurate waveform resolution and to capture longer signal lengths. With its 7-inch TFT-LCD (800*480) screen, there is adequate screen space to help better see and analyze waveform details. Along with a 1 GSa/s sampling rate, SDS1000CML+ digital oscilloscopes support 32 parameters measurements and common mathematical operations to speed up complex/repetitive measurements.

Key Features

    • Supports multi-language display and embedded help
    • Screensaver from 1 minute to 5 hours
    • Digital filter and waveform recorder function
    • Shortcut storage function key
    • 7-inch TFT-LCD display with 800 * 480 resolution
    • Multiple interfaces: USB Host, USB Device (USBTMC), LAN (VXI-11), Pass / Fail
Models Available:

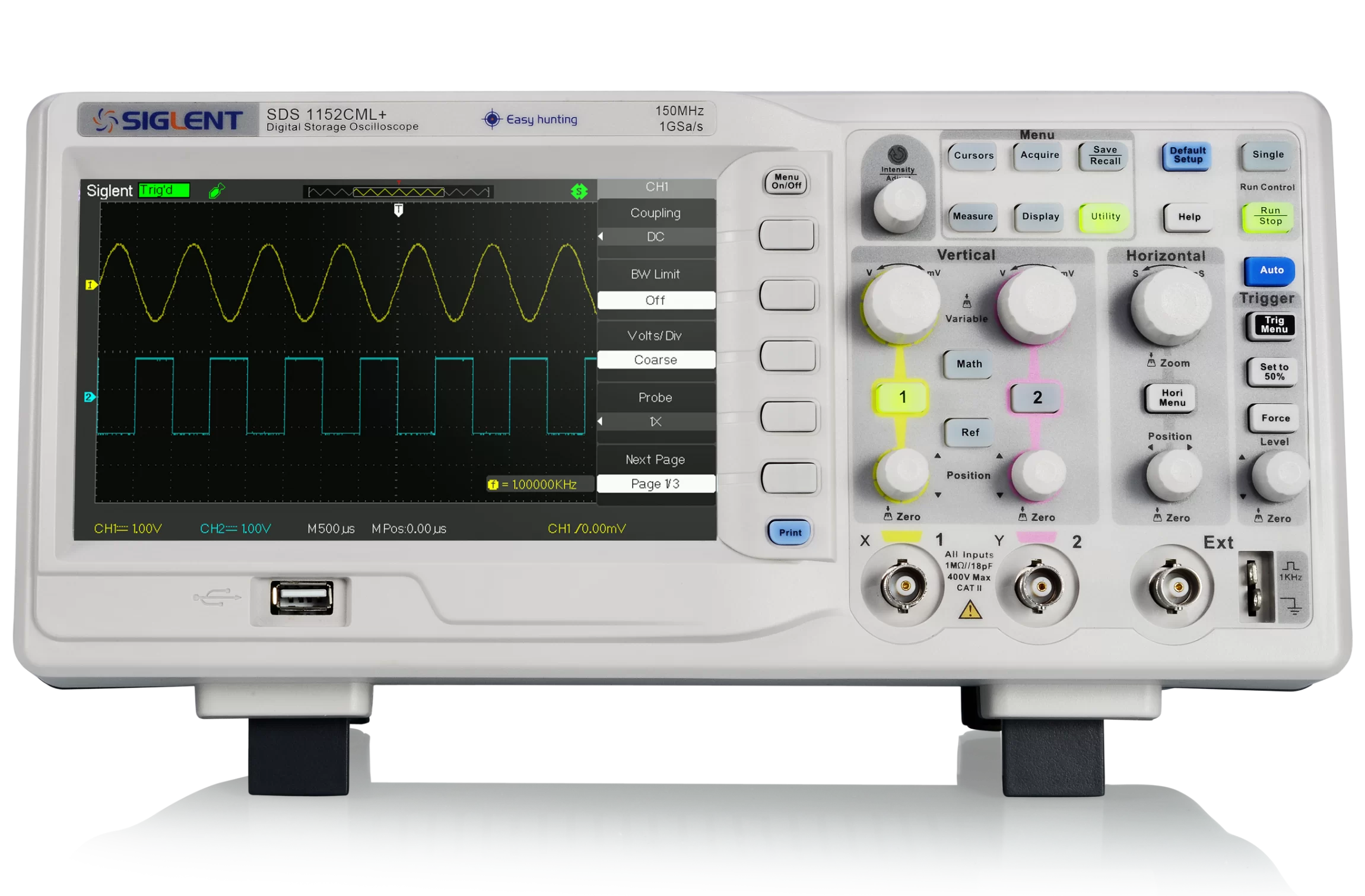

SDS1152CML+
SDS1102CML +
