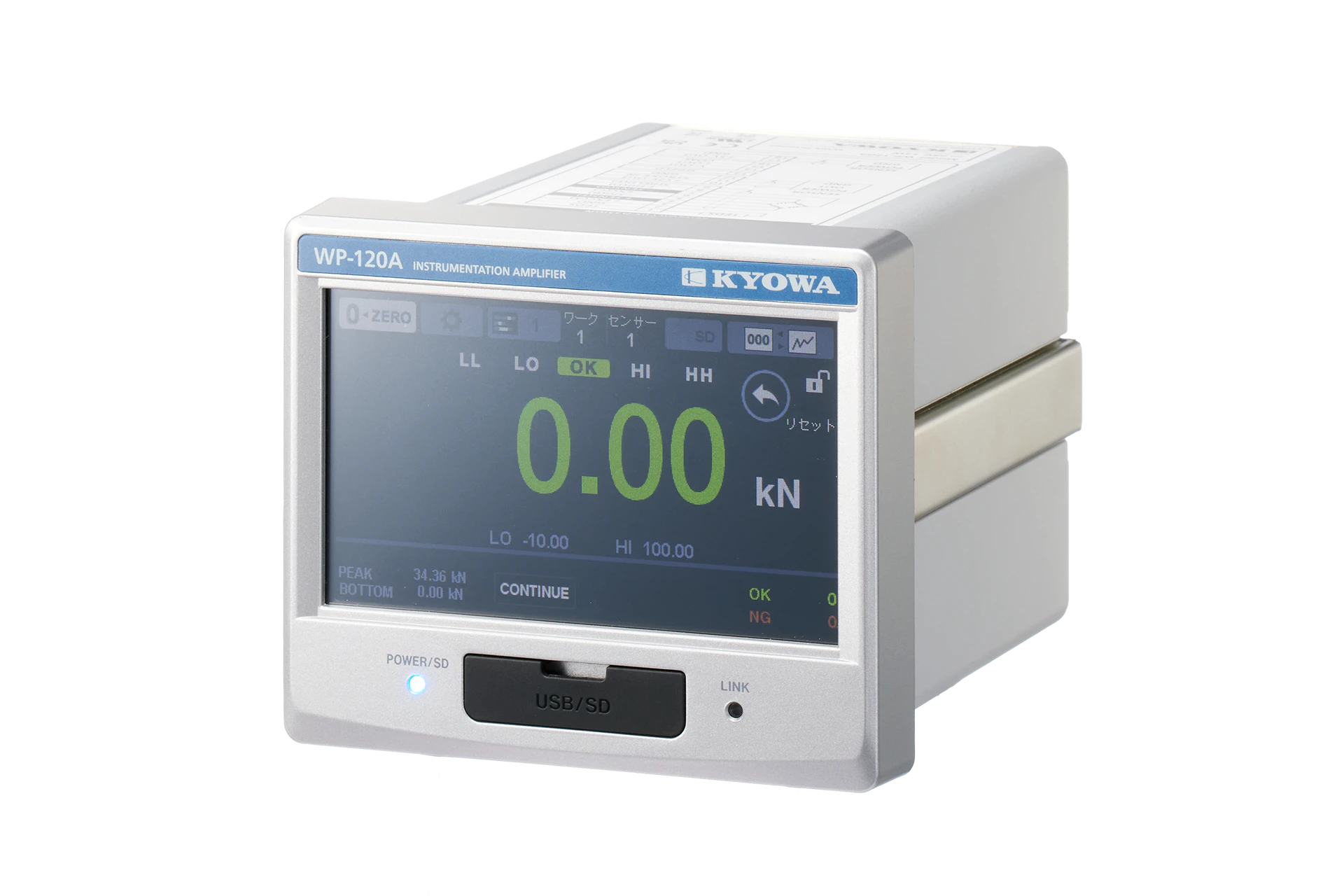

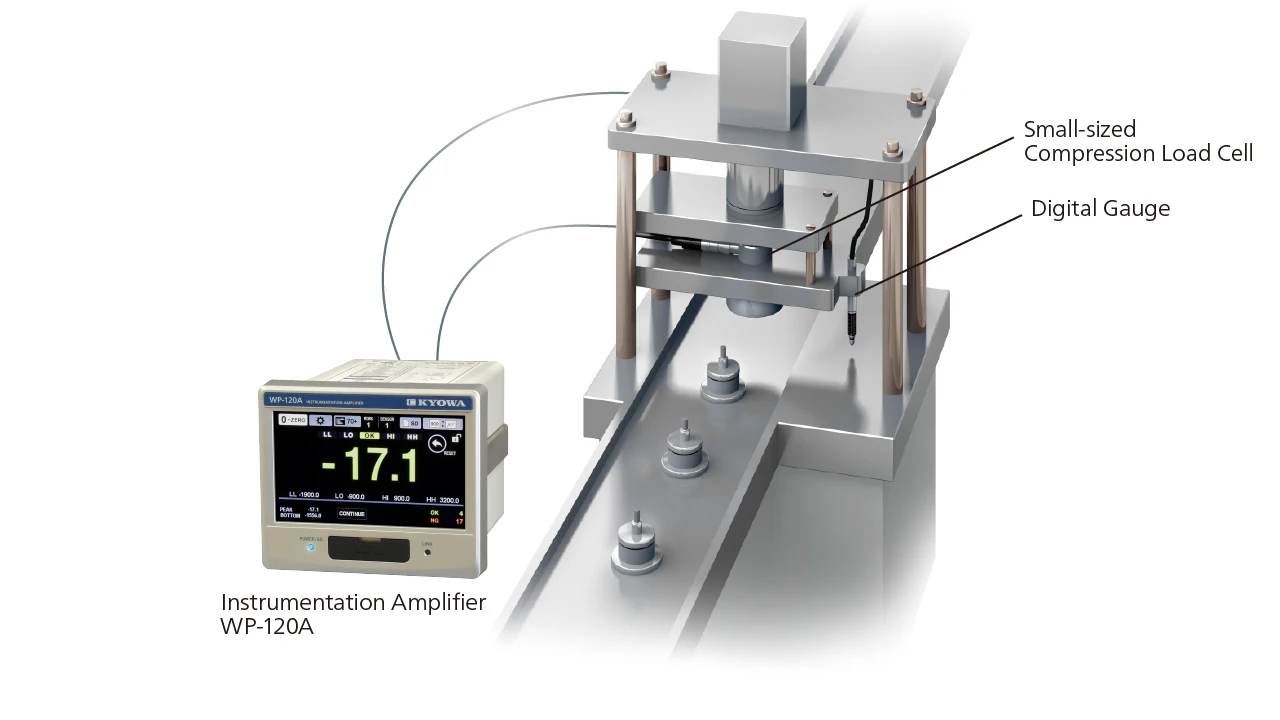

WP-120A Instrumentation Amplifier

DC, 2.5/5/10 V, ±10%
(30 mA current maximum, can be used with remote sensing)

Strain gauge sensor -3.2 mV/V to 3.2 mV/V

Calibration Range : 0.1m V/V to 3.0 mV/V
Calibration Method : Equivalent Input / Actual Load / TEDS
Linearize Function : Five-point tracking

Linearity : Within 0.01% F.S. +1 digit (when input is 3.0 mV/V)
Zero Drift : Within 0.5 μ V/°C (input conversion value)
Gain Drift : Within ±0.005% F.S./℃

Low Pass : OFF/3/10/30/100/300/1000 Hz (-6 dB/oct)
Moving Average : 0 / 2 to 2048 times
Auto Digital : Only digital value display (constant judgement)

Sampling Rate : 5000 times per second, 25000 times per second
Resolution : 24-bit (binary)

IEEE1451.4, Supports 4K bit products, class 2 mix mode interface

A/B phase or A phase, differential square wave (RS-422 conformance)

2 MHz

15,000,000

Equivalent Input / Actual Load

0 / 2 to 2048 times

5 V(±10%), 150 mA Max.

±5.2 V

Calibration Range : 0.1 to 5.2 V
Calibration Method : Equivalent Input / Actual Load

Zero Drift : Within 0.005%F.S./°C
Gain Drift : Within 0.02%F.S./°C

Low Pass : 10/30/100/300 Hz (-6 dB/oct)
Moving Average : 0 / 2 to 2048 times

Resolution : 24-bit (binary)

12 V DC(±10%), 250 mA Max.

24 V DC(±10%) 13 W, 100 to 240 V AC (AC adapter is optional)

Temperature : 0°C to 40°C (Operating) / -20°C to 60°C (Storage)
Humidity : 85% RH or less (without condensation)

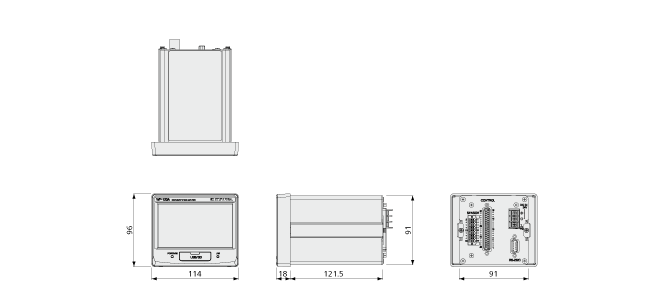

Approx. 114 x 96 x 140 mm (protrusions not included)

About 960 g

EMC : FCC (class A)

Safety : CE marking, UL61010-1, UKCA marking

4.3 inch LCD color resistive touch panel

-32000 to +32000

Digital load value, Waveform, Archive data, Setting

Y-axis
Time:
80 ms*/170 ms*/400 ms/800 ms/2.0 s/4.0 s/10.0 s/30.0 s/60.0 s/120.0 s *
cannot be selected when the sampling frequency is set to 5 kHz.

Displacement:
2000/4000/6000/8000/10000/15000/20000/30000

Y-axis
Load (STD) / Load and displacement (biaxially)

Band Judgement : Offset reference band / Designated value band
Comparison Judgement : Load : HH / HI / OK / LO / LL
Displacement : HI / OK / LO
Hold Setting : Constant comparison, sampling, peak, bottom, peak to peak, maximum / minimum, inflection point and average value
Beep Function : Sounding when judgements are not OK (ON / OFF Switchable)

Number of Works : 16 (Work can be copied)
Switching : External input signal / manual

Built-in memory (up to 70) or SD cards

Output Range : Isolated, Current (4 – 20 mA), Voltage (-10 V to +10 V )
Conversion Rate : Same as A/D converting rate
Resolution : Current output: about 1/43000, Voltage output: about 1/59000 (when set to ±10 V)
Impedance : 350 Ω or less (Current output) / 2k Ω or more (Voltage output)

RS-232C (D-sub 9-pin), USB

Input Signal : Differential pulse displacement sensor (A phase, B phase), Back light On/Off, Touch panel lock, Reset, Work select, Hold zone select, Clear, Judgement On/Off, Measurement Start/End, Preset displacement, Digital zero

* Signals are input when shorted/opened between any input terminal and the COM terminal.

Output Signal : Load judgement (HH/HI/OK/LO/LL), Displacement judgement (HI/OK/LO), Load cell error, Unit error, Measurement Completed, Trigger (1, 2), Band judgement (HI/OK/LO)

* NPN open collector (Sync type)
* Maximum Current: 20 mA / Voltage: 30 V

Load cell check (static strain / interruption detection), Contact terminal check

Date (YYYY/MM/DD, etc.) / time can be set

SD / SDHC (2 to 32GB, class 10 recommended)

AC adapter UNI324-2410-CT

1.10

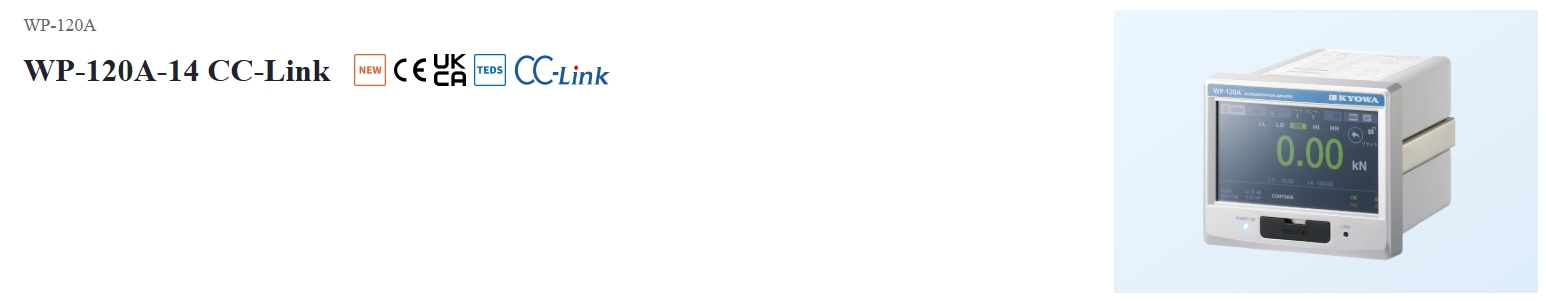

Remote device station

2 stations, and 4 stations

10 Mbps, 5 Mbps, 2.5 Mbps, 625 kbps, and 156 kbps

1 to 63

CC-Link specialty cables

About 1040 g

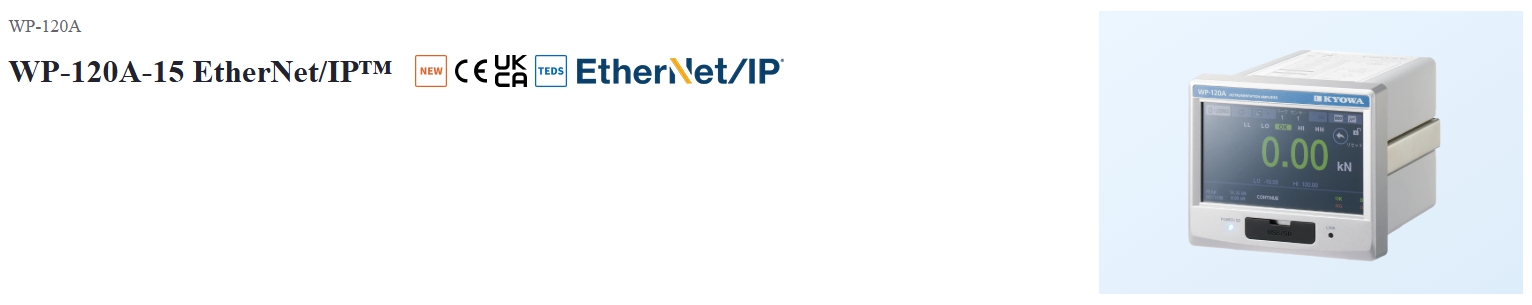

EtherNet/IP and USB/RS232C can be used for transmission with this unit. When using EtherNet/IP for control, however, discontinue control by USB/RS232C, and when using USB/RS232C for control, discontinue control by EtherNet/IP. Operation cannot be guaranteed when controlled by both at the same time.
