WORKSWELL

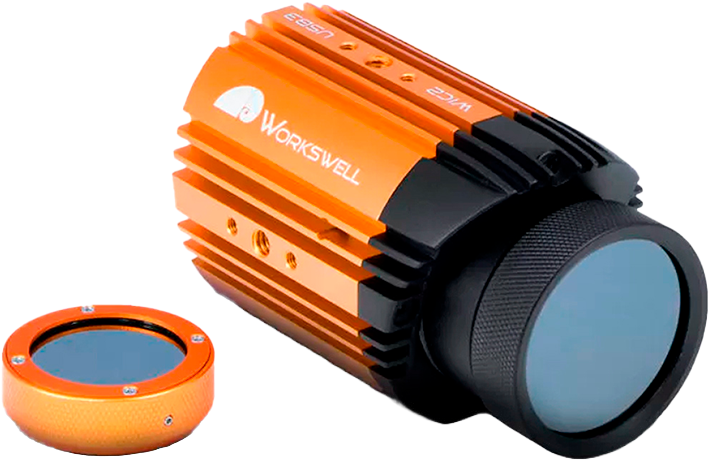

WIC Series

STATIONARY RADIOMETRIC THERMAL CAMERA

  • Easily attachable to a tripod or a production line
  • Small and compact
  • Robust product design
  • High ingress protection rate with a special case
  • High-resolution thermal camera with possibility to focus from 5cm and up
  • Objective lens visual field from 13° – 69° (6.8mm – 19mm)
  • Full operability of the thermal camera via CorePlayer software or development libraries (SDK)
  • Precise calibration, including GAIN and FFC calibration
Categories: , ,
Contact Sales Spec Sheet

Description



STATIONARY RADIOMETRIC THERMAL CAMERA

The WIC thermal camera is a highly sensitive imager designed to monitor a wide variety of industrial and R&D initiatives. With a thermal sensitivity of up to ≤0.03°C (30mK, 0.054°F), this is one of the most advanced cameras on the market. Easy to integrate into a control system, the WIC can handle a USB3 interface that is ideal for laboratory applications and PCB analysis. It can also be outfitted with GigE for industrial applications and manufacturing processes. The WIC comes in two flavors: the WIC 336, which offers a resolution of 336x256px, and the WIC 640, which boasts 640x512px

APPLICATION



ONE THERMAL CAMERA FOR ALL OF YOUR NEEDS

Temperature measurement is the second most common measurement in industry today. WIC thermal cameras are already enabling contact-free temperature measurement in hundreds of different applications around the world.

Workswell WIC Welding
LASER WELDING
Workswell WIC Soldering
SOLDERING
Workswell WIC Lamination
LAMINATING
Workswell WIC Glass
WINDSCREEN HEATING

FOR EXAMPLE

Workswell WIC Welding
Workswell WIC Soldering
Workswell WIC Laminating

TECHNICAL INFORMATION & DOCUMENTS



Type WIC 336 WIC 640
Resolution 336 x 256 px 640 x 512 px
Sensitivity 0.03°C (30mK, 0.054°F) 0.03°C (30mK, 0.054°F) on demand
Temperature range -25°C…+150°C (-13°F…+302°F)
-40°C…+550°C (-40°F…+1022°F)
optional temperature range +400 – 1 500 °C (752 °F to 2 732 °F)		 -25°C…+150°C (-13°F…+302°F)
-40°C…+550°C (-40°F…+1022°F)
optional temperature range +400 – 1 500 °C (752 °F to 2 732 °F)
Accuracy ±2% or ±2°C (±3.6°F) ±2% or ±2°C (±3.6°F)
Frame rate 9Hz, 30Hz or 60Hz 9Hz, 30Hz or 60Hz
Spectral range 7.5 – 13.5 µm 7.5 – 13.5 µm
Optional lenses 6.8 mm – 19 mm 9 mm – 19 mm
Focusing Manual Manual
Power supply via USB3 cable or PoE (GigE type WIC) via USB3 cable or PoE (GigE type WIC)
Communication USB3 or GigE USB3 or GigE
Analog video PAL, NTSC (USB3 type WIC) PAL, NTSC (USB3 type WIC)
Software Workswell CorePlayer Workswell CorePlayer
SDK Windows, Linux x86, Linux ARM, Labview SDK, Matlab Simulink SDK, Dewesoft SDK Windows, Linux x86, Linux ARM, Labview SDK, Matlab Simulink SDK, Dewesoft SDK
Calibration Yes (with certification) Yes (with certification)
