SMART RADIOMETRIC THERMAL CAMERA

  • An in-built webserver for the camera setting and process visualisation
  • TCP/IP interface for communication with a superior system
  • Digital inputs/outputs enabling triggering and alarm outputs
  • Temperature measurement up to 1500 °C (2732 °F)

The Workswell SMARTIS thermal camera can be operated and configured independently without the need for a direct connection to a PC or a superior unit. The thermal camera is offered in resolutions of 336 x 256 px and 640 x 512 px. A LWIR (Long Wave InfraRed) microbolometer with the spectral range of 7.5 – 13.5 μm and different lenses.

Description

ONE THERMAL CAMERA FOR ALL OF YOUR NEEDS

Temperature measurement is the second most common measurement in industry today. SMARTIS thermal cameras are already enabling contact-free temperature measurement in hundreds of different applications around the world.

LASER WELDING
SOLDERING
LAMINATING
WINDSCREEN HEATING

FEATURES AND CONFIGURATION POSSIBILITIES

  • An in-built webserver for the camera setting and process visualisation
  • TCP/IP interface for communication with a superior system
  • Digital inputs/outputs enabling triggering and alarm outputs
  • Temperature measurement up to 1500 °C (2732 °F)

The Workswell SMARTIS thermal camera can be operated and configured independently without the need for a direct connection to a PC or a superior unit. The thermal camera is offered in resolutions of 336 x 256 px and 640 x 512 px. A LWIR (Long Wave InfraRed) microbolometer with the spectral range of 7.5 – 13.5 μm and different lenses.

Workswell SMARTIS
Workswell SMARTIS

MEASUREMENT & CONNECTIVITY

The Workswell SMARTIS thermal camera is designed for process automation and machine vision but can also be used for continuous measurements of temperature in metrological and research applications.

The SMARTIS thermal camera has been designed for use in process automation so that it can autonomously control a separate smaller process however, could also become a part of the more extensive control system. Therefore, it has been equipped with a TCP/IP interface (Ethernet 100Mb/sec, RJ-45) which is complemented with digital inputs and analogue outputs (current loop 0-24 mA/12 V).

The measurement scope of the thermal camera ranges from -25 °C to 550 °C (-13 °F to 1022 °F), optionally up to 1500 °C (2732 °F). Metrologic accuracy (±2% or ±2°C (±3.6°F) ) and sensitivity (up to 50 mK, i.e. 0.05 °C (0.09 °F) ) have stood as priorities in the thermal camera’s development.

BUILT-IN WEBSERVER & SDK

The Workswell SMARTIS thermal camera contains an built-in webserver allowing for easy setup of the thermal camera as well as measurement functions, inputs and outputs and image streaming options all to be controlled remotely.

An SDK for integrating the thermal imager into your devices is available. SMARTIS Ethernet SDK is a set of commands, intended to control the SMARTIS camera over the Ethernet con-nection without the need of a web browser. The SMARTIS runs a TCP/IP server for the control. The opened server is similar to telnet protocol and can beused with telnet terminal software.

SMARTIS Webserver
SMARTIS Interfaces

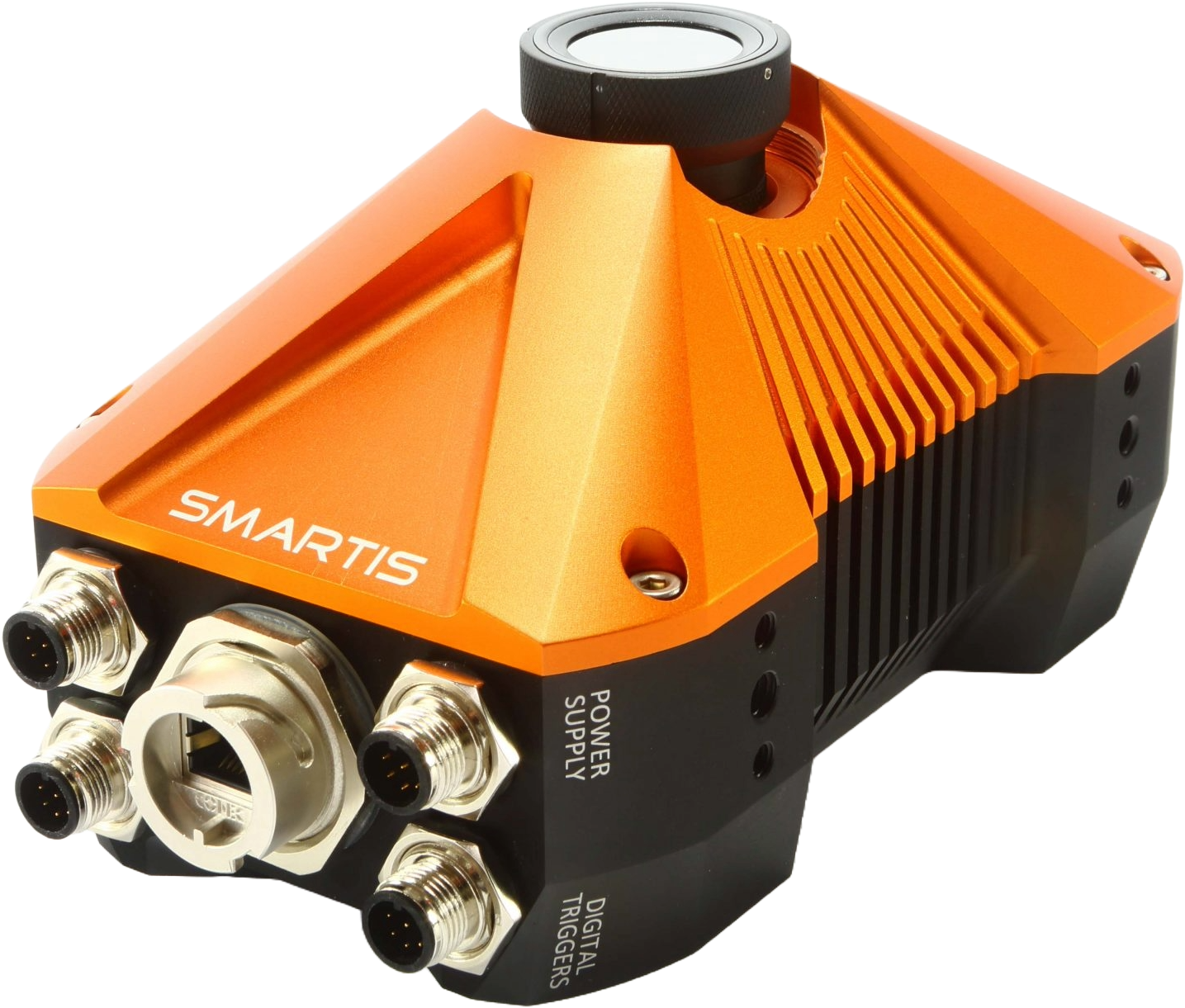

SMARTIS INTERFACES

  • 4x digital input/output for trigger
  • Power supply
  • Ethernet TCP/IP with a RJ-45 connector for communication with PLC, but also with the in-built webserver
  • 4x current output (0-24 mA/12 V current loop)
  • 7x digital output (with an open collector)

TECHNICAL INFORMATION & DOCUMENTS



SMARTIS 336 SMARTIS 640
Resolution 336 x 256 pixels 640 x 512 pixels
Image Frequency 9Hz, 30Hz or 60Hz 9Hz, 30Hz
Temperature ranges -25°C to +150°C (-13°F to +302°F), -40°C to +550°C (-40°F to +1 022°F), optional with external filter +400°C to +1 500°C (+752°F to +2 732°F) and 50°C to 1000°C (122°F to 1832°F)
Temperature sensitivity 0.05°C (50mK, 0.09°F)
Accuracy ±2% or ±2°C (±3.6°F)
Spectral Range 7.5 – 13.5 μm
Calibration Yes, the system includes the calibration certificate
Detector Type Uncooled VOx microbolometer
Optics (FOV) 17°, 25°, 35°, 45° 32°, 45°, 69°
Focus Continuous Manual (fixed focusable, min focus distance depends on lens)
Networking Ethernet 100Mb/sec, RJ-45, Metal cable gland protection
Analog output 4-channel isolated Current loop (0-24mA) / Voltage (±12VDC, M12 circular thread)
Camera configuration Built-in WEBserver for easy and fast sensor configuration, Google Chrome or Firefox browser compatible, no external software required
Vizualization Realtime video streaming, Pallete settings, Overlay elements, Digital zooming, Numeric and statistical indicators, Input and Output overview panel
ROI User definable measurement area (Point, Line, Polyline, Rect, Polygon, Circle) Multiple product selection for ROI presets (Manual or via Ethernet)
Dimensions and weight 185 x 100 x 105 mm, 1.3 kg, Durable aluminum two – milled body
