WORKSWELL
MEDICAS

THERMAL BODY TEMPERATURE SCREENING

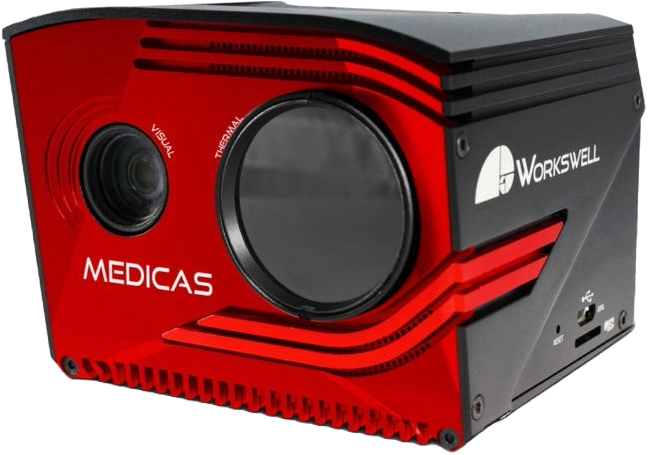

Workswell MEDICAS is a thermal imaging camera for human febrile temperature screening with resolution 640×512 px, temperature sensitivity 0,03 °C (0.054 °F) and uncertainty ±0.2 °C (±0.36 °F).

Workswell MEDICAS solution is based on a real-time continuous calibration using the Workswell BB90 black body, which is a variant of the Workswell BB200 black body as a radiation source to achieve best accuracy and thermal stability. Camera is exportable worldwide without the licence. For clear visualization, Workswell MEDICAS works with three levels: normal temperature, elevated temperature and fever temperature.

Categories: , , ,
Contact Sales

Description

IEC AND ISO COMPLIANT

GDPR COMPLIANT

The camera is compliant with ISO/TR 13154:2017, meets the requirements of IEC and follows the WHO
guidelines for elevated body temperature screening.

Human temperature is analyzed real-time without the need of data storing. Administrator has a possibility to set up video or image recording if needed.



ISO COMPLIANT MEASUREMENT

PRE-SCAN PHASE MODE

Only different installation setup of MEDICAS camera and Blackbody BB200 allowsto meet all ISO and IEC requirements and standards. High resolution 640 px enables to measure in the eyes to achieve high accuracy.

Pre-scan phase mode allows measuring in the range of 3 - 11 meters (2.6 ft - 36 ft) but for accurate temperature measurement is required to follow the correct procedure and measure according to ISO/TR 13154:2017.

LED AND SOUND WARNING INTEGRATED

The thermal camera Workswell MEDICAS is equipped with visual and acoustic alarm (beeper). If the set temperature limit is exceeded, the event is alarmed optically by an LED on the front of the thermal camera and acoustically by a built-in loudspeaker. The alarm level is adjustable by admin as well as the alarms (LED and sound alarm can be activated separately).
