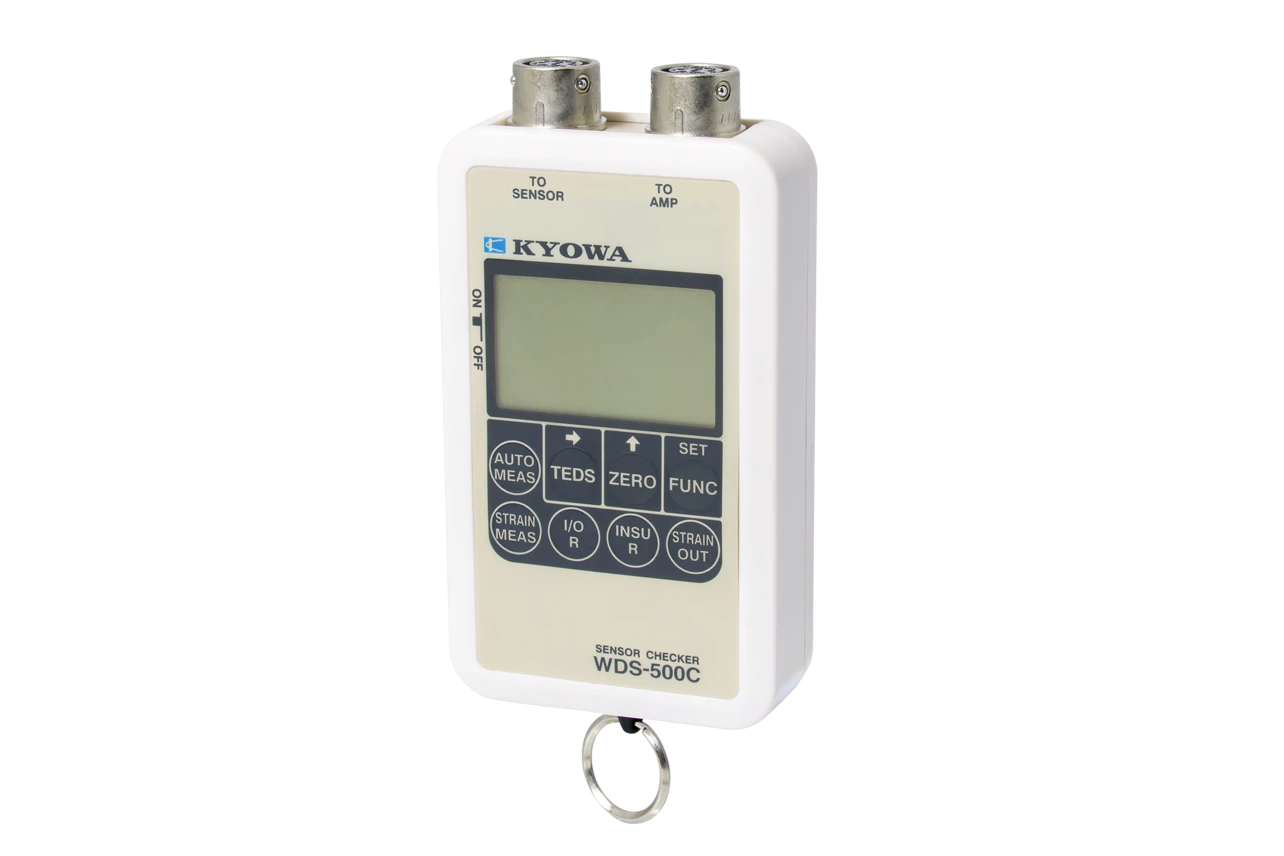

Description
Features
- Easily check sensors and measuring instruments with one device
- Equipped with a backlight
- Measure strain, input/output resistance, and insulation resistance with a single press of a button
- Integrated diagnostics of strain measurement, input/ output resistance, and insulation resistance in automatic measurement mode
- Check measuring instruments with strain outputa
Specifications
Channels
|
1
|
Applicable Instruments
|
Strain-gage transducers (Remote sensing not supported), strain amplifiers
|
Display
|
Black and white dot matrix 128 × 64 dots (With back backlight)
|
Sampling Speed
|
Approx. 2 times/s
|
Auto Power OFF
|
Selectable from 1 to 99 min or none
|
Low Power Display
|
Displays BAT when voltage is low
|
Operating Temperature
|
5 to 40°C
|
Operating Humidity
|
20 to 85% (Non-condensing)
|
Power Supply
|
2 AA size batteries
|
Continuous Operation
|
Approx. 8 h (350 Ω transducer strain measurement, intermittent bridge excitation, with display off)
|
Weight
|
Approx. 175 g (Excluding batteries)
|
Dimensions
|
69 W × 115 H × 28 D mm (Excluding protrusions)
|
Strain Measurement
Compatible Transducer
|
Strain gage transducer
|
Compatible Bridge Resistance
|
60 to 1000 Ω
|
Measuring Range
|
±5 mV/V (±10000 ×10-6 strain)
|
Bridge Excitation
|
Approx. 2 VDC (Selection between intermittent and continuous impression)
|
Display Digit
|
5 digits
|
Display Accuracy
|
[mV/V] display: Within ±(0.2% of reading +3 digits)
[×10-6 strain] display: Within ±(0.2% of reading +5 digits)
|
Measuring Modes
|
Strain mode: Where input strain quantity is indicated in mV/V or ×10-6 strain; zero compensation possible
|
IO Resistance Measurement
Measuring Range
|
0 to 2000 Ω
|
Accuracy
|
Within ±(0.2% of reading +5 digits)
|
Display
|
Less than 400 Ω: 1 decimal place
400 Ω or more: 1 decimal place is hidden
|
Conduction Check
|
The electronic buzzer sounds when the resistance is 10 Ω or less (with the buzzer function ON).
|
Insulation Resistance Measurement
Measuring Range
|
0 to 300 MΩ
|
Applied Voltage
|
Approx. 20 VDC
|
Display Accuracy
|
Within ± (15% of reading +10 digits)
|
Insulation Check
|
Electronic buzzer sounds when less than 100 MΩ (Uses strain input / output cable)
|
Strain Output
Output Range
|
[mV/V] display: 0.000 to ±5.000 mV/V
(0.005 mV/V steps)
[×10-6 strain] display: 0 to ±10000 ×10-6 strain
(10 ×10-6 strain steps)
|
Input Bridge Power
|
12 VDC or less
|
Carrier Frequency Range
|
1k to 28 kHz
|
Output Accuracy
|
DC Amplifier:
[mV/V] display: Within ±(0.5% of set value +0.020)
[×10-6 strain] display: Within ±(0.5% of set value +40)
Output Accuracy:
[mV/V] display: Within ±(5% of set value +0.020)
[×10-6 strain] display: Within ±(5% of set value +40)
|
IO Resistance
|
Approx. 350 Ω
|
Automatic Measurement Functions
Check Contents
|
Measures Input strain, I/O resistance, and Insulation resistance in sequence and displays the results.
|
TEDS Information Indication Function
Indicated Contents
|
Model of transducer, Kyowa original serial number, rated capacity, engineering unit, rated output, input resistance and serial number of TEDS format
|
IO Connector
|
Round connector: PRC03-23A10-7F,
Compatible Plug: PRC03-12A10-7M10.5
|
Standard Accessories
|
2 AA batteries, instruction manual
|
Optional Accessories
|
Input cable U-16 (4-conductor, terminated with alligator clips)
Silicon cover
Soft case WDS-500-CASE (With shoulder strap)
|
*Specifications and design are subject to change without notice.
*Please contact us for information on product warranties.

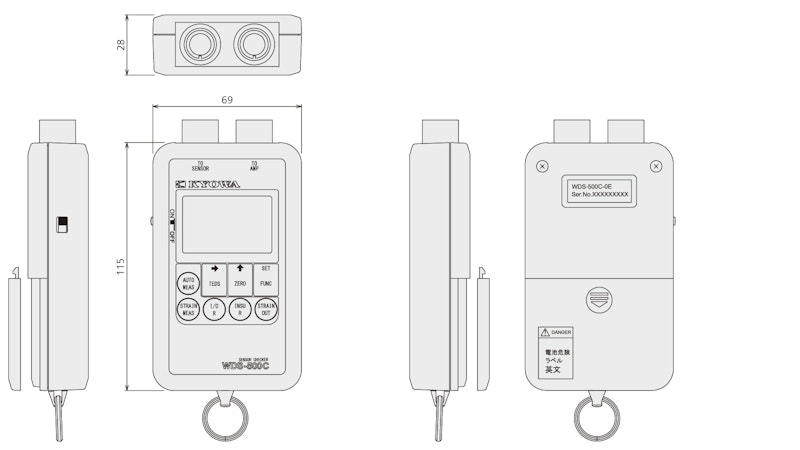

Dimensions
