VarioCAM HD Z security

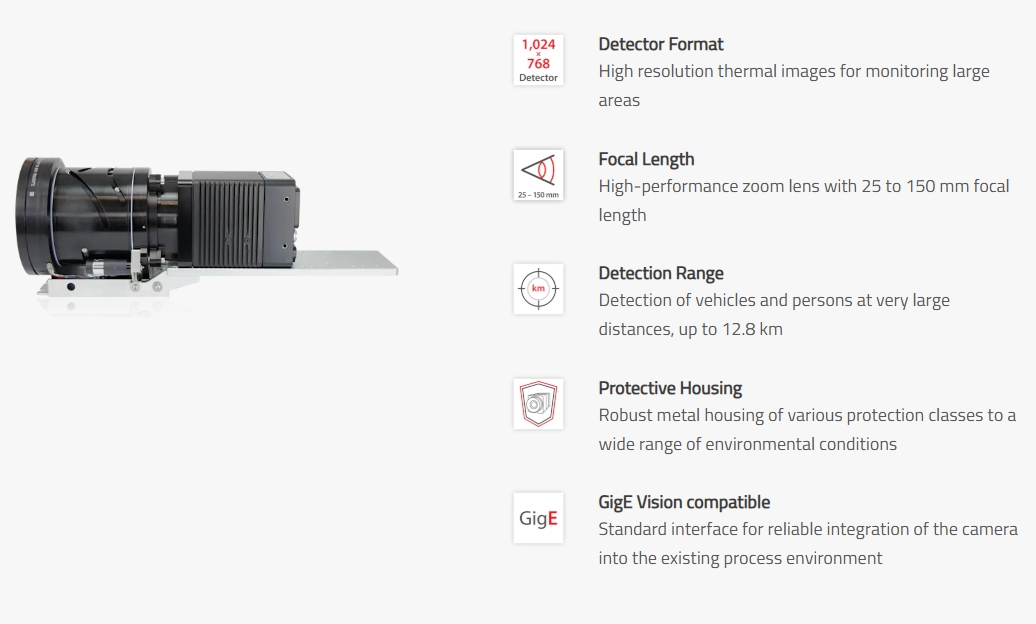

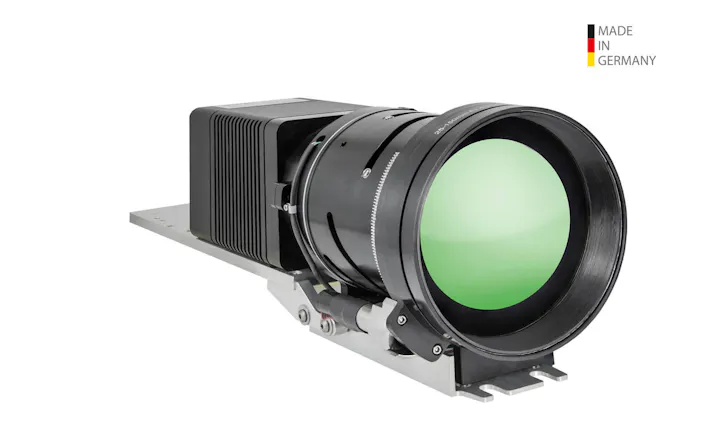

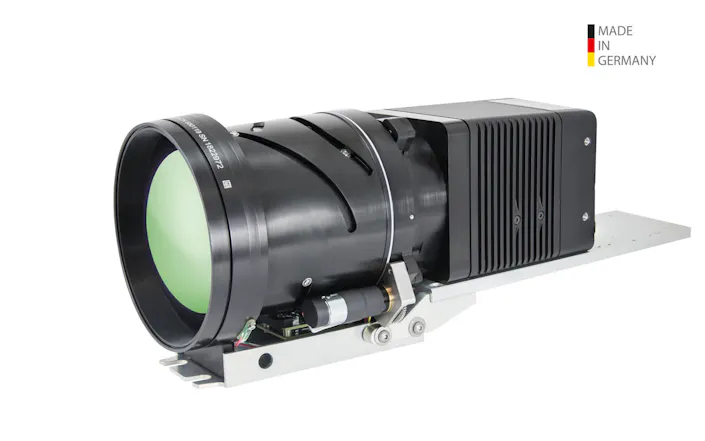

The high-resolution infrared camera system VarioCAM® HD Z security by InfraTec is the world’s first commercially available radiometric thermal imaging camera providing a motorised 6× infrared zoom lens for the spectral range of (7.5 … 14) μm. Equipped with an uncooled FPA detector, it provides brilliant 16 bit thermal images of the highest quality with (1,024 × 768) IR pixels. This combination of HD format thermal images and the enormously efficient zoom lens opens the door to surveillance and monitoring tasks across medium and long distances with an unprecedented attention to detail for users – even in the case of adverse visual conditions and at night. The equipment with high-quality supplementary components, as for example ATEX-conform protective housings, pan-tilt heads as well as CCTV cameras, supports the efficient use of this system 24 hours a day.

Due to different equipment options, the system can be configured just as needed for various tasks: Automatic threshold detection and signalling as well as digital real-time image acquisition via Gigabit Ethernet are just two of the numerous camera functions. By interacting with the powerful IROD monitoring software, an efficient and easy-to-use 24/7 monitoring system is created, which can also be integrated into established network structures. The extremely robust system design allows low-service continuous operation over many years, even under adverse environmental conditions such as exposure to dust, humidity, heat and cold.
