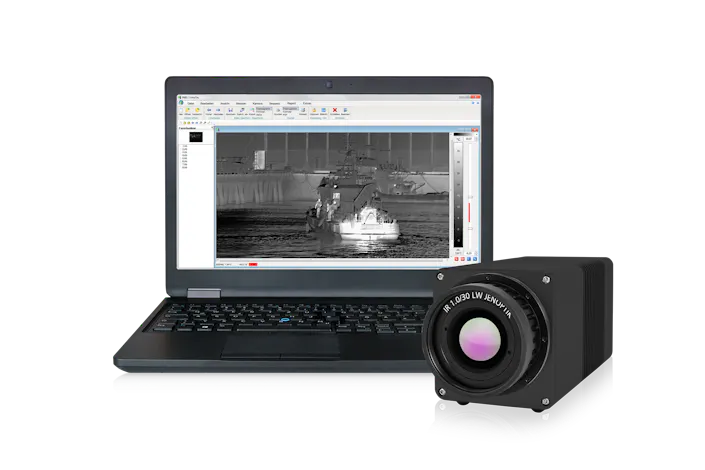

Vari­oCAM HD head security 900

Thermal infrared camera system for security and surveillance applications

  • Uncooled FPA detector with (1,024 × 768) IR pixels
  • Noiseless long-term observations
  • Personnel detection range up to 6.1 km
  • Vehicle detection range up to 10.7 km
Categories: , ,
Contact Sales Spec Sheet

Description

Features of Vari­oCAM® HD head security

The thermographic high-resolution system VarioCAM® HD head security is based on an uncooled microbolometer FPA detector of the latest generation with (640 x 480) or (1,024 x 768) IR pixels and was conceived for demanding monitoring and measurement tasks in stationary or vehicle-mounted operation. Images with resolutions of up to 3.1 Megapixels can be taken in combination with the integrated MicroScan feature, which was designed for continuous operation.

The VarioCAM® HD head security generates brilliant 16-bit thermographic images of highest quality and offers unprecedented measurement ranges and efficiency, especially during day and night detection and identification of distant persons and vehicles. The various sets of equipment make it easy to adjust the setup to the respective measurement task: The application range includes automatic threshold recognition and signalling up to digital realtime image acquisition via Gigabit-Ethernet. The all-weather light metal housing (IP67) allows trouble-free and inexpensive operation under harsh weather conditions.

The big standard temperature range, a complete optical assortment as well as the extensive equipment and the powerful IRBIS® 3 software for thermographic data acquisition and evaluation make the VarioCAM® HD head security an ideal tool for monitoring and investigation. With the application-specific configuration, this stationary thermographic system is even suited for tasks, which require continuous and automatic operation.
