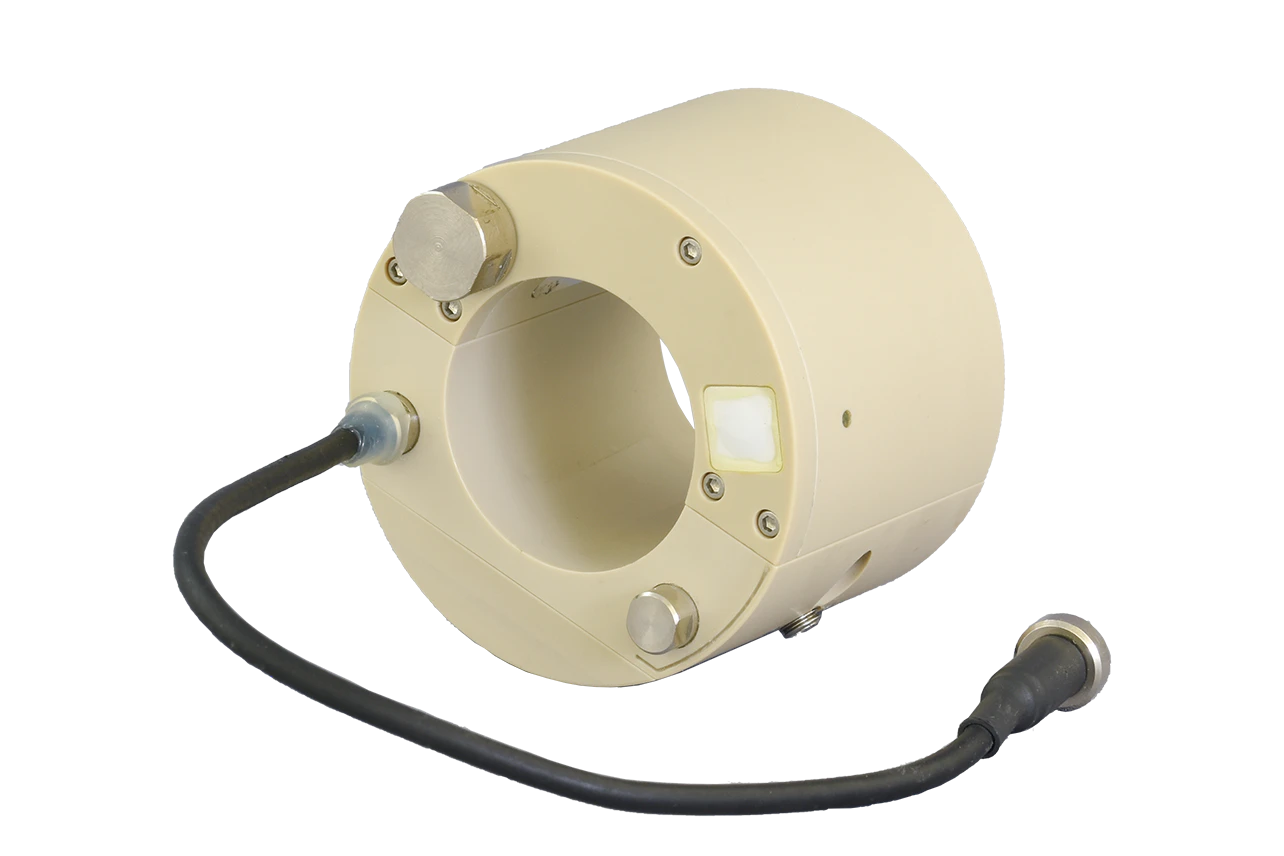

Transmitter Collar System

Transmitter Collar System

This system wirelessly converts strain gage output to measure drive shaft torque. It supports various purposes including measuring torque during vehicle operation, measuring regenerative torque or maximum torque from initial speed for electric vehicles, measuring slip torque, or performing other vehicle evaluation tests. Channels: 1

Categories: ,
Contact Sales

Description

Features

  • Wireless strain measurement of drive shafts
  • Direct shaft installation (inner φ20 to 32 mm)
  • Degree of protection: IP54 equivalent
  • Built-in battery

Specifications

Measuring Targets
Strain gages (Full bridge system) 120 to 1000 Ω
Channels
1
Measuring Range
±1000, ±2500, ±5000, ±10000, ±25000×10-6 strain
Max. Rotation Speed
2000 rpm
Frequency Response
DC to 4800 Hz
AD Resolution
16-bit
Sampling Frequency
4.8 kHz
Radio Communication Frequency Band
2.4 GHz band
Operating Temperature
-15 to 60°C
Built-in Batteries
Li-ion battery
Degree of Protection
IP54 (JIS C 0920/IEC 60529) equivalent
Dimensions
φ57 ×42 mm (Excluding protrusions)
Weight
Approx. 120 g

*Specifications and design are subject to change without notice.

*Please contact us for information on product warranties.
