Product Overview
In order to develop, test and optimize these more complex systems, the measurement technology must exceed the desired system performance. The SSG6000A is designed to provide high performance signal quality that meets the stringent requirements of the latest microwave and millimeter wave testing while extending customer value in size, speed, and cost.
Key Features
- Frequency up to 13.6 GHz/ 20 GHz/ 40 GHz
- Level setting range: -130 dBm ~ 24 dBm
- Excellent Phase Noise: -135 dBc / Hz @ 1 GHz, 20 kHz offset (typ.)
- Very low sub harmonic: < –80 dBc
- Level error ≤ 0.7 dB (typ.)
- Standard AM modulation with internal, external or Int+Ext source
- Standard OCXO and step attenuator (0 to 110 dB, 10dB step)
- Pulse modulation on/off ration > 80 dBc (typ.) and the rise/fall time < 15 ns (typ.) (option)
- Pulse train generator has pulse width of 20 ns ~ 300 s and as many as 2047 different pulses (option)
- Web browser remote control on PC and mobile terminals

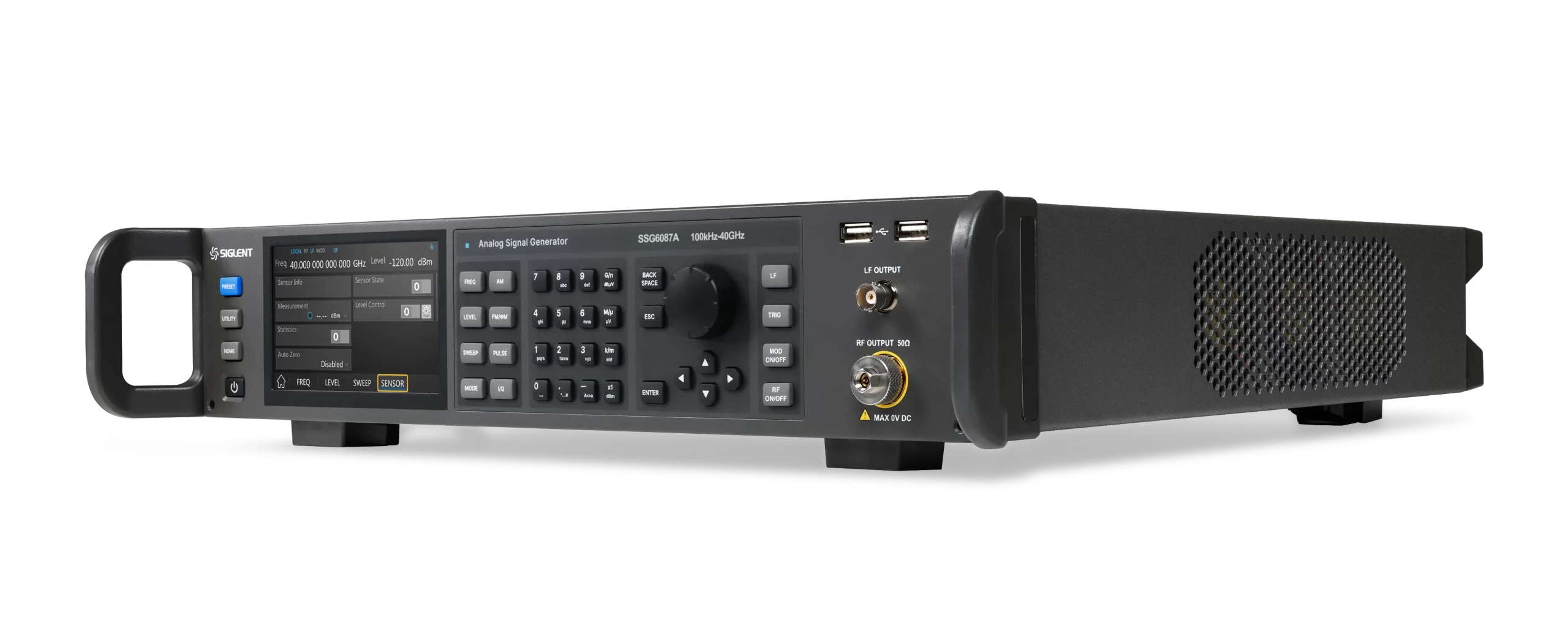

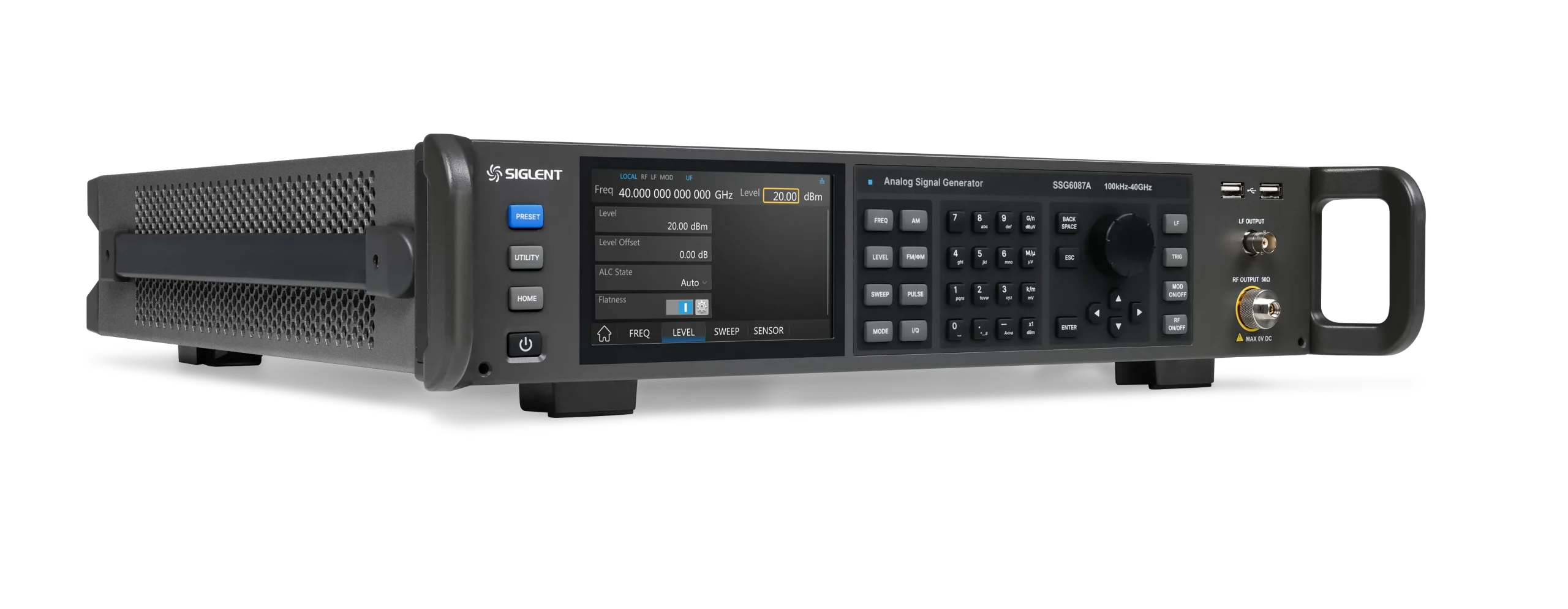

- 5 inch TFT capacitive touch screen, mouse and keyboard supported

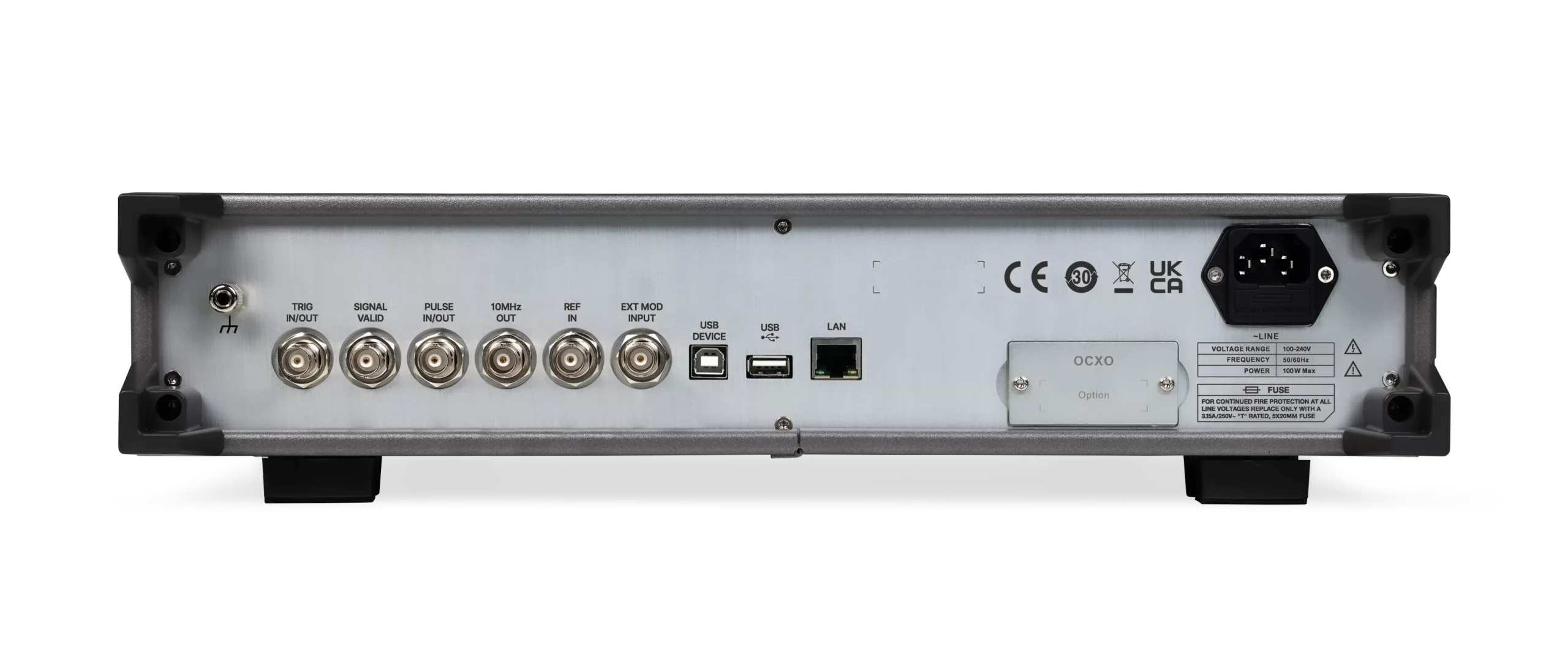

- Standard interface includes USB Host, USB Device (USB TMC), LAN (VXI-11, Socket, Telnet). Optional interface: GPIB
