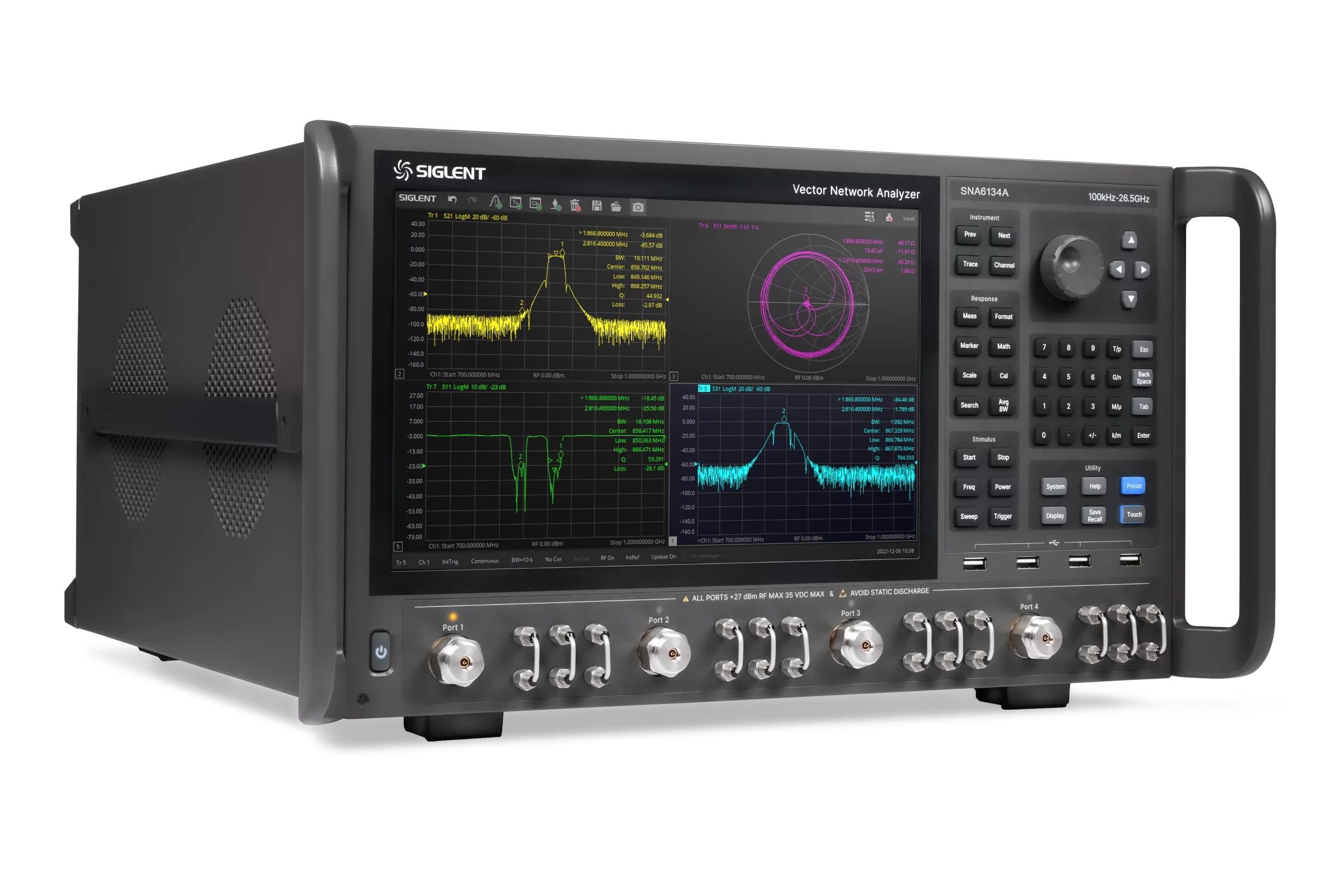

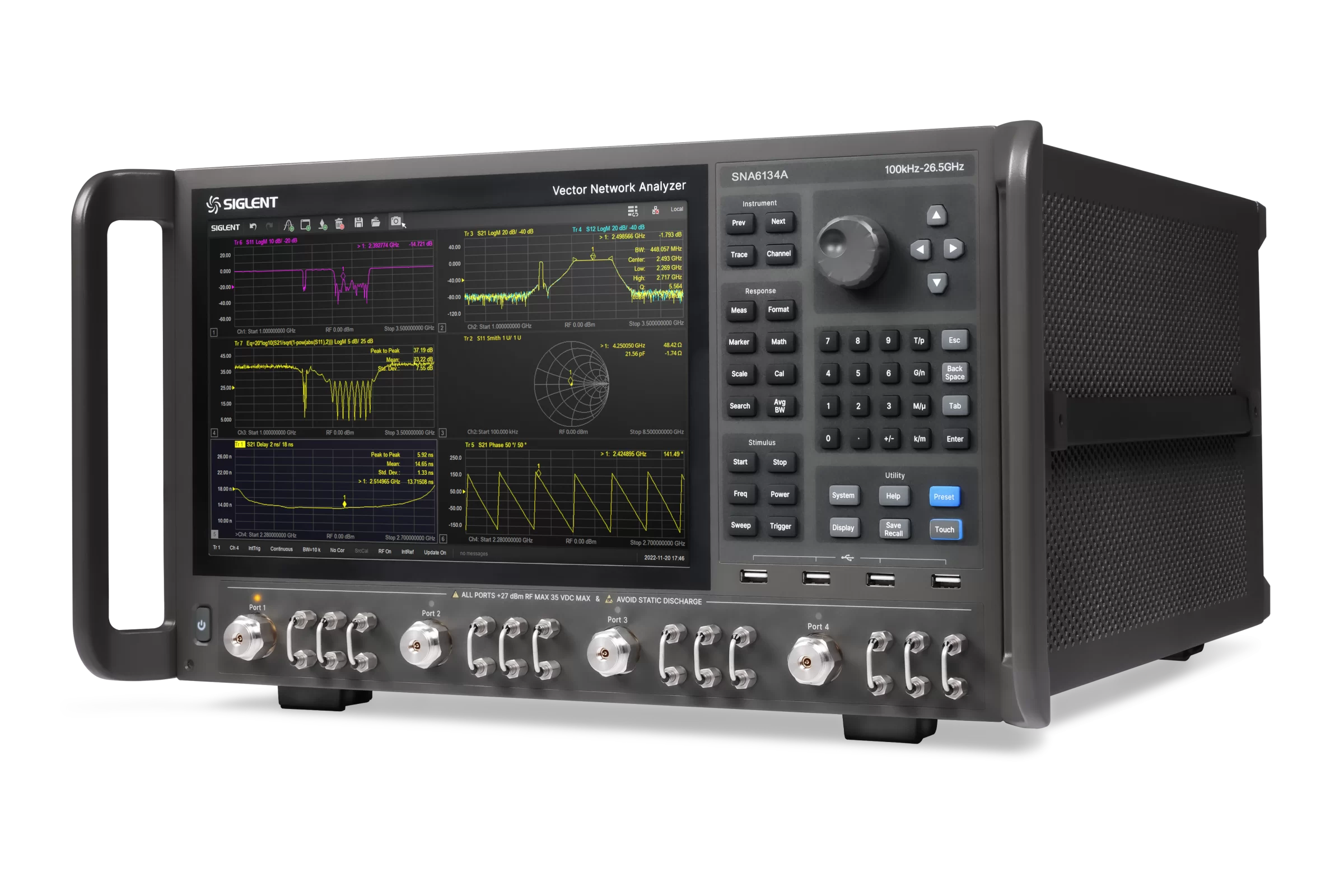

SNA6000A Vector Network Analyzer
SNA6000A Vector Network Analyzer - Image 2
SNA6000A Vector Network Analyzer - Image 3

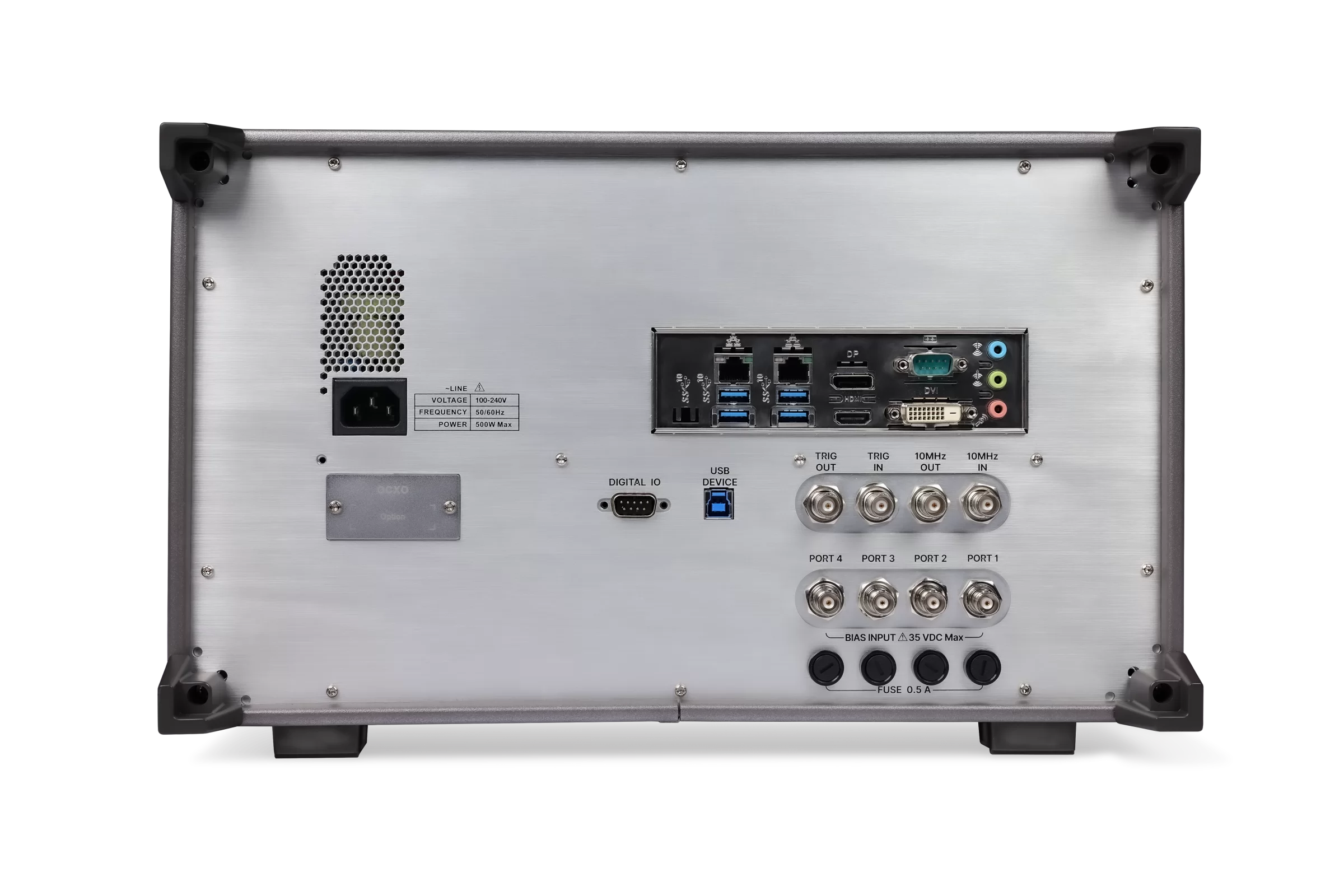

SNA6000A Vector Network Analyzer - Image 4
SNA6000A Vector Network Analyzer - Image 5

SNA6000A Vector Network Analyzer

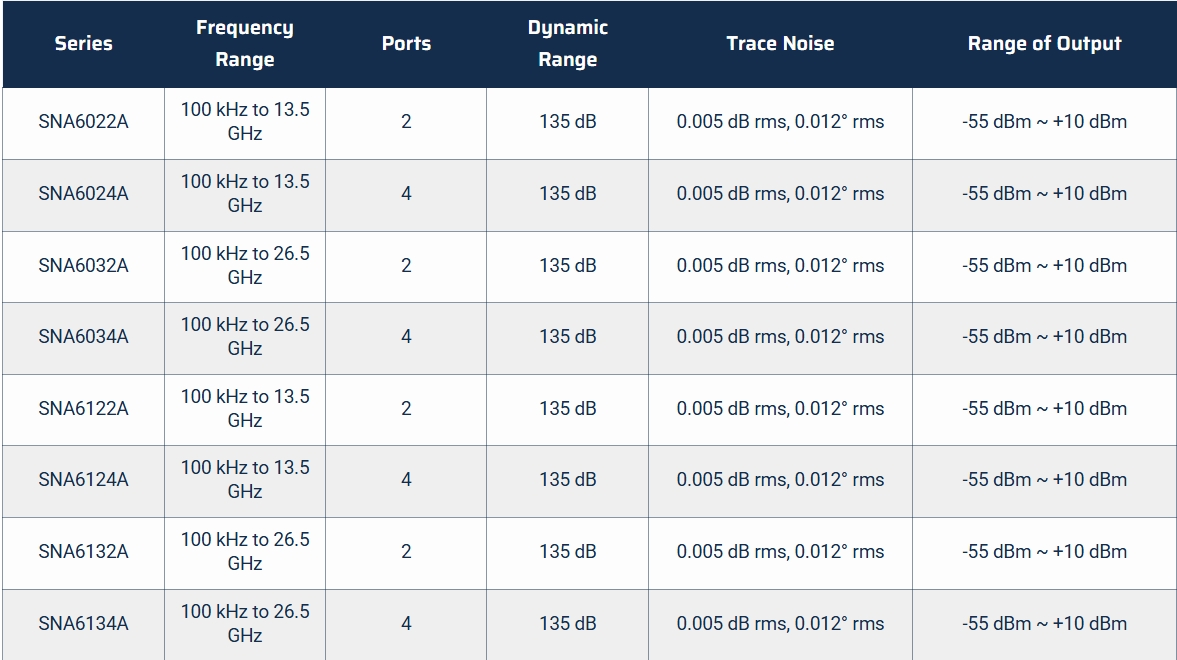

  • Frequency Range: 100 kHz to 13.5 GHz and 100 kHz to 26.5 GHz
  • Range of IFBW: 1 Hz to 10 MHz
  • Dynamic Range: 135 dB
  • Setting Range of Output Level: -55 dBm to +10 dBm
  • Standard Bias-Tee connection and pulse hardware
  • 4-port models include standard second source
  • Jumpers / DRA (Source, Ref and Meas) standard on SNA61xxA models
Categories: ,
Contact Sales Spec Sheet

Description

Product Overview

The rapid development of radio technologies increases the need for high-performance measurement technology. The SNA6000A series meets these requirements with impressive specifications and numerous useful, powerful functions. The SNA6000A series represents a versatile, powerful and user-friendly solution for the measurement and analysis needs in modern electronics. The series contains a total of eight models, which are available in bandwidths of 13.5 GHz and 26.5 GHz. Both a 2-port and a 4-port model are available for each bandwidth. All models are available in both a standard version and an extended version with Direct Receiver Access (DRA). SNA6000A is based on a flexible and integrated system which provides high performance and future proofs the platform for future expansion and innovation.
Watch Product Video

Key Features

  • 100 MHz bandwidth
  • Real-time sampling rate up to 1 GSa/s
  • The newest generation of SPO technology
    • Waveform capture rates up to 100,000 wfm/s (normal mode) and 400,000 wfm/s (sequence mode)
    • Supports 256-level intensity grading and color temperature display modes
    • Record length up to 14Mpts
    • Digital trigger system
  • Intelligent trigger: Edge, Slope, Pulse Width, Window, Runt, Interval, Time out (Dropout), Pattern
  • Serial bus triggering and decoding (Standard), supports protocols IIC, SPI, UART, CAN, LIN
  • Video trigger, supports HDTV
  • 10 types of one-button shortcuts, supports Auto Setup, Default, Cursors, Measure, Roll, History, Display/Persist, Clear Sweep, Zoom and Print
  • Segmented acquisition (Sequence) mode, divides the maximum record length into multiple segments (up to 80,000), according to trigger conditions set by the user
  • Automatic measurement function for 38 parameters as well as Measurement Statistics, Zoom, Gating, Math, History and Reference functions
  • History waveform record (History) function (maximum recorded waveform length is 80,000 frames)
  • 128 k pts FFT, supports Peaks and Markers
  • Math functions (FFT, addition, subtraction, multiplication, division, integration, differential, square
    root)
  • Large 7 inch TFT LCD display with 800 * 480 resolution
