Spec Sheet Description
Product Overview

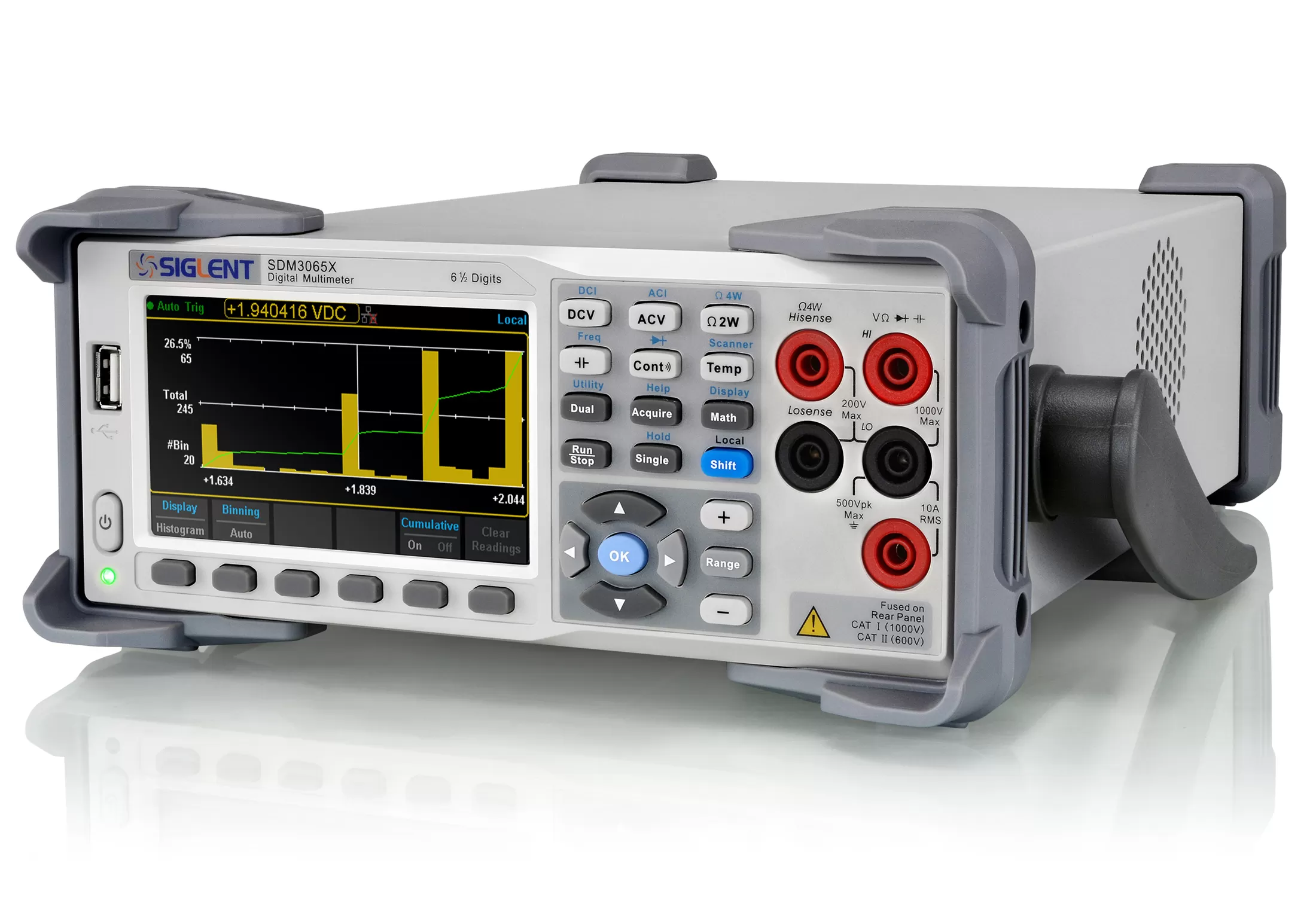

The SDM3065X / SDM3065X-SC is a 6 ½ digit DMM(digital multimeter with 2,200,000 counts) incorporating a dual –display. The SDM3065X series is especially well-suited for the needs of high-accuracy and high-precision applications measurement.
The SIGLENT SDM3065X-SC includes a multiplexer that provides multi-point measurement capabilities. The scanner
features 12 multi-purpose + 4 current channels and supports the following measurement functions: DCV, ACV, DCI, ACI, 2WR, 4WR, CAP, FREQ,
DIODE, CONT and TEMP ( RTD and Thermocouple ). It provides a convenient and versatile solution for test applications that require multiple
measurement points or signals and is an ideal tool for R&D burn-in and production testing.
NOTE: The scanner is included on new SDM3065X-SC products only. It cannot be added to SDM3065X instruments at a later time.
Key Features
- Supports double display, Chinese and English Menu
- File management (support for U-disc and local storage)
- Built-in cold terminal compensation for thermocouple
- Comes with easy, convenient and flexible any sensor measurement control software :EasyDMM
- Math Function: Max, Min, Average, Standard Deviation, dBm/dB, Relative Measurement, Pass/Fail Histogram, Trend Chart, Bar Meter,etc.
