Product Overview

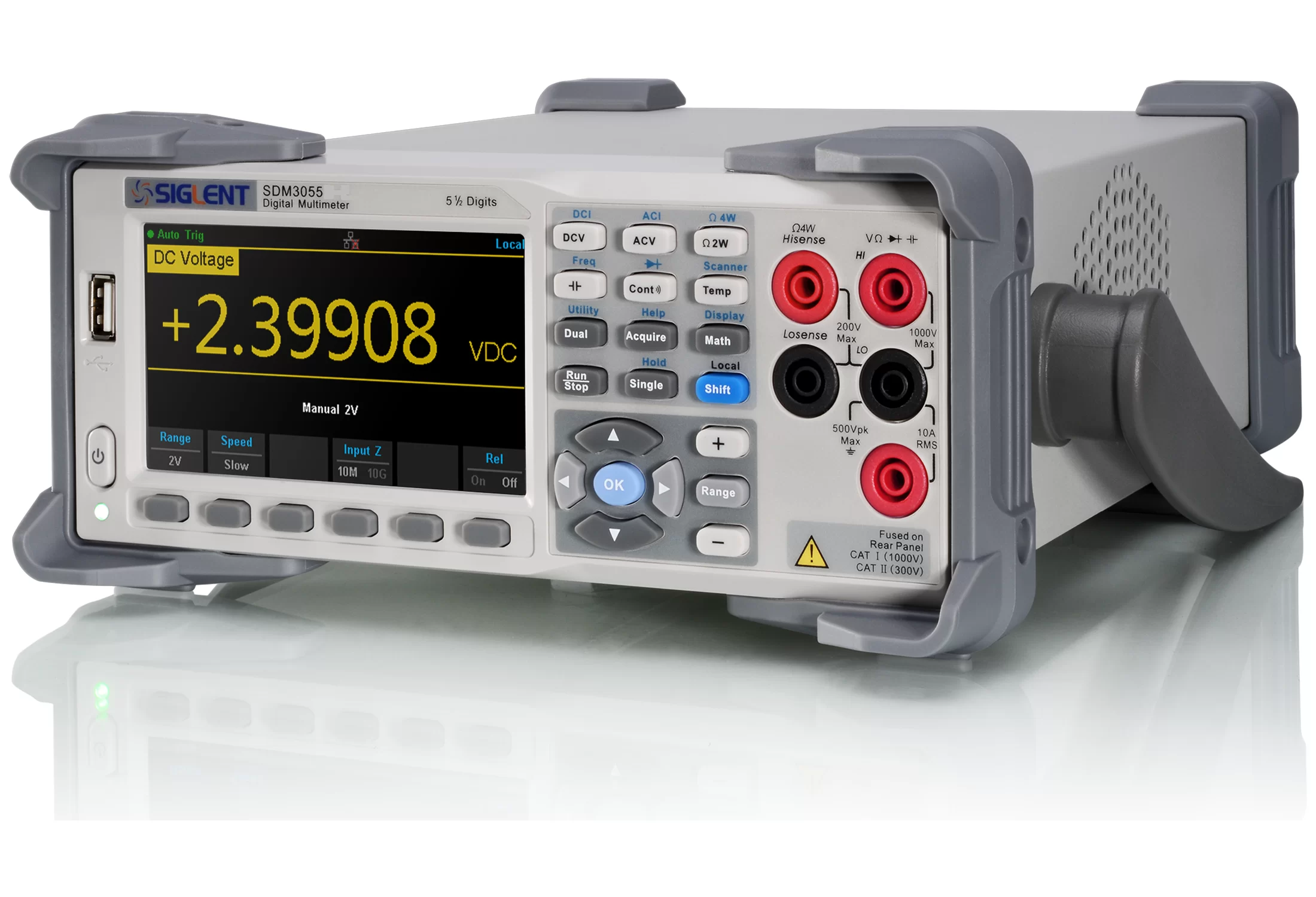

The SDM3055 / SDM3055-SC is a digital multimeter designed with 5 ½ digits readings resolution and dual-display, especially ftting to the needs of high-precision, multifunction and automatic measurement.
The SIGLENT SDM3055-SC includes a multiplexer that provides multi-point measurement capabilities. The scanner
features 12 multi-purpose + 4 current channels and supports the following measurement functions: DCV, ACV, DCI, ACI, 2WR, 4WR, CAP, FREQ,
DIODE, CONT and TEMP ( RTD and Thermocouple ). It provides a convenient and versatile solution for test applications that require multiple
measurement points or signals and is an ideal tool for R&D burn-in and production testing.
NOTE: The scanner is included on new SDM3055-SC products only. It cannot be added to SDM3055 instruments at a later time.
Key Features
- Built-in cold terminal compensation for thermocouple temperature measurements
- With easy, convenient and flexible PC software: EasyDMM
- Standard interfaces: USB Host, LAN ( Optional Accessories USB-GPIB Adapter )
- Support remote control operation via SCPI commands. Compatible with commands of main stream multimeters
