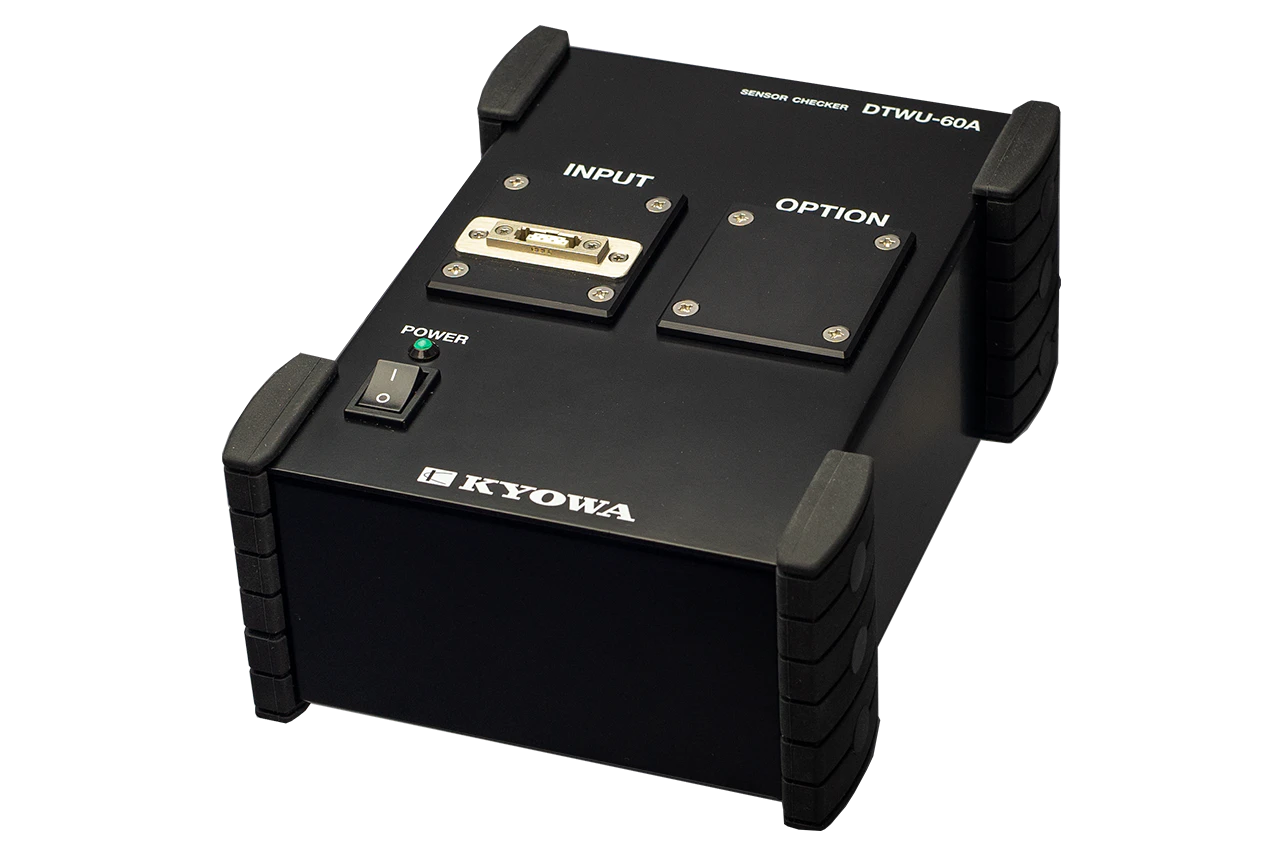

Specifications

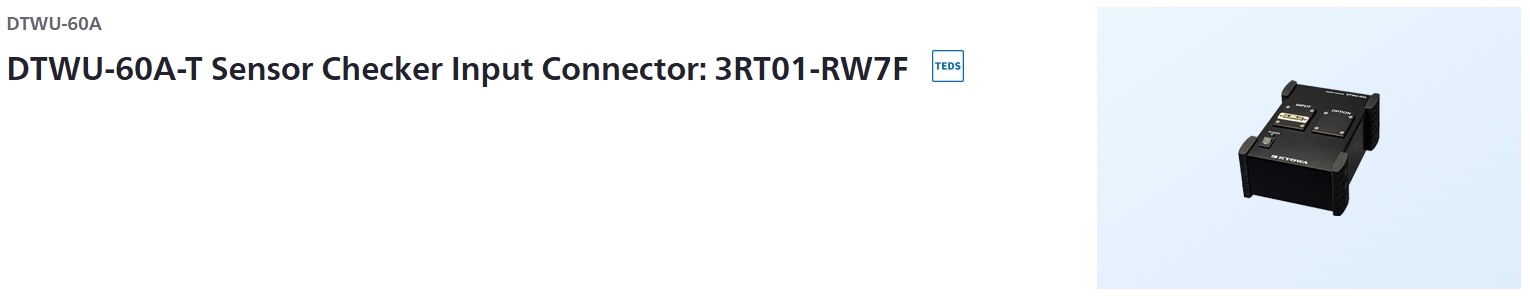

Input Connector
|
3RT01-RW7F
(Applicable plug 3RT01-PE7M,TAJIMI ELECTRONICS made)
|
Operating Temperature
|
0 to 50°C
|
Operating Humidity
|
20 to 80% (Non-condensing)
|
Storage Temperature
|
-10 to 60°C
|
Storage Humidity
|
10 to 90% (Non-condensing)
|
Power Supply
|
10 to 16 VDC (Using the provided AC adapter)
|
Current Consumption
|
Max. 150 mA
(At power supply 12 VDC, bridge excitation 10 V,
load resistance 350 Ω)
|
Dimensions
|
Approx. 120 W × 66 H × 180 D mm
(Excluding protrusions)
|
Weight
|
Approx. 0.9 kg
|
Input
Analog Input
Channels
|
1
|
Input Format
|
Balanced differential input
|
Input Resistance
|
Bridge sensor measurement: Approx. (50 MΩ + 50 MΩ)
Voltage measurement: Approx. (100 kΩ + 100 kΩ)
|
Input Voltage
|
±20 V
|
Gain
|
×0.1 to 0.9 (×0.1-step)
×1 to 5000 (×1-step)
|
Gain Accuracy
|
Within ±0.5%FS
|
Balance Adjustment
|
Gain
×0.1 to 0.9: Within ±20 V
×1 to 9: Within ±2 V
×10 to 99: Within ±200 mV
×100 to 5000: Within ±20 mV
|
Bridge Excitation
Voltage Apply Method
|
Each channel on/off switchable.
|
Voltage
|
10, 5, 2 VDC, within ±0.1%
|
Bridge Configuration
|
Full bridge system
|
Bridge Resistance
|
120 Ω to 5 kΩ
|
Current
|
Within 30 mA
|
LPF
Transfer Characteristics
|
5th order Butterworth
|
Cutoff Frequencies
|
200 Hz fixed
|
AD Conversion
Resolution
|
16 bits
|
Sampling Frequencies
|
1 kHz fixed
|
TEDS Function
|
|
IEEE1451.4 (Mixed Mode Transducer Interface Class2) compliant
|
Measurement Functions
Initial Measurement
|
|
Strain-gage transducer, voltage, potentiometer, and IR-TRACC
|
I/O Resistance Measurement
Resistance Range
|
0 to 5000 Ω
|
Resistance Accuracy
|
±(0.5% of reading+5 Ω)
|
Insulation Resistance Measurement
Range
|
0 to 300 MΩ
|
Accuracy
|
±(5% of reading+1 MΩ)
|
Applied Voltage
|
Approx. 15 VDC
|
|
|
Disconnection Check
*I/O resistance measurement, insulation resistance measurement, and disconnection check are provided for strain-gage transducers.
*Specifications and design are subject to change without notice.
*Please contact us for information on product warranties.
