SDS1000X-U Series Super Phosphor Oscilloscopes

  • 100 MHz bandwidth
  • Real-time sampling rate up to 1 GSa/s
  • Record length up to 14 Mpts
  • Serial bus triggering and decoder supports protocols I2C, SPI, UART, CAN, LIN
  • Advanced measurements on full memory (14 Mpts)
  • Large 7-inch TFT-LCD display with 800 * 480 resolution

Description

Product Overview

SIGLENT’s SDS1000X-U Super Phosphor Oscilloscopes are available in one bandwidth, 100 MHz. SDS1000X-U Oscilloscopes have a maximum sample rate of 1 GSa/s and a maximum record length of 14 Mpts. For ease of use, the most commonly used functions can be accessed with its user-friendly front panel design.

The SDS1000X-U series employs SPO (Super Phosphor Oscilloscope) technology that provides excellent signal fidelity and performance. It comes with an innovative digital trigger system with high sensitivity and low jitter, and a waveform capture rate of 400,000 frames/sec (sequence mode). The SDS1000X-U also employs a 256 level intensity grading display function and a color temperature display mode not found in other models in this class.

Another powerful addition is the new 128 k point FFT math function that gives this digital oscilloscope a very high-frequency resolution when observing signal spectra. Siglent’s SDS1000X-U also supports searching and navigating. The features and performance of the SDS1000X-U cannot be matched anywhere else in this price class.

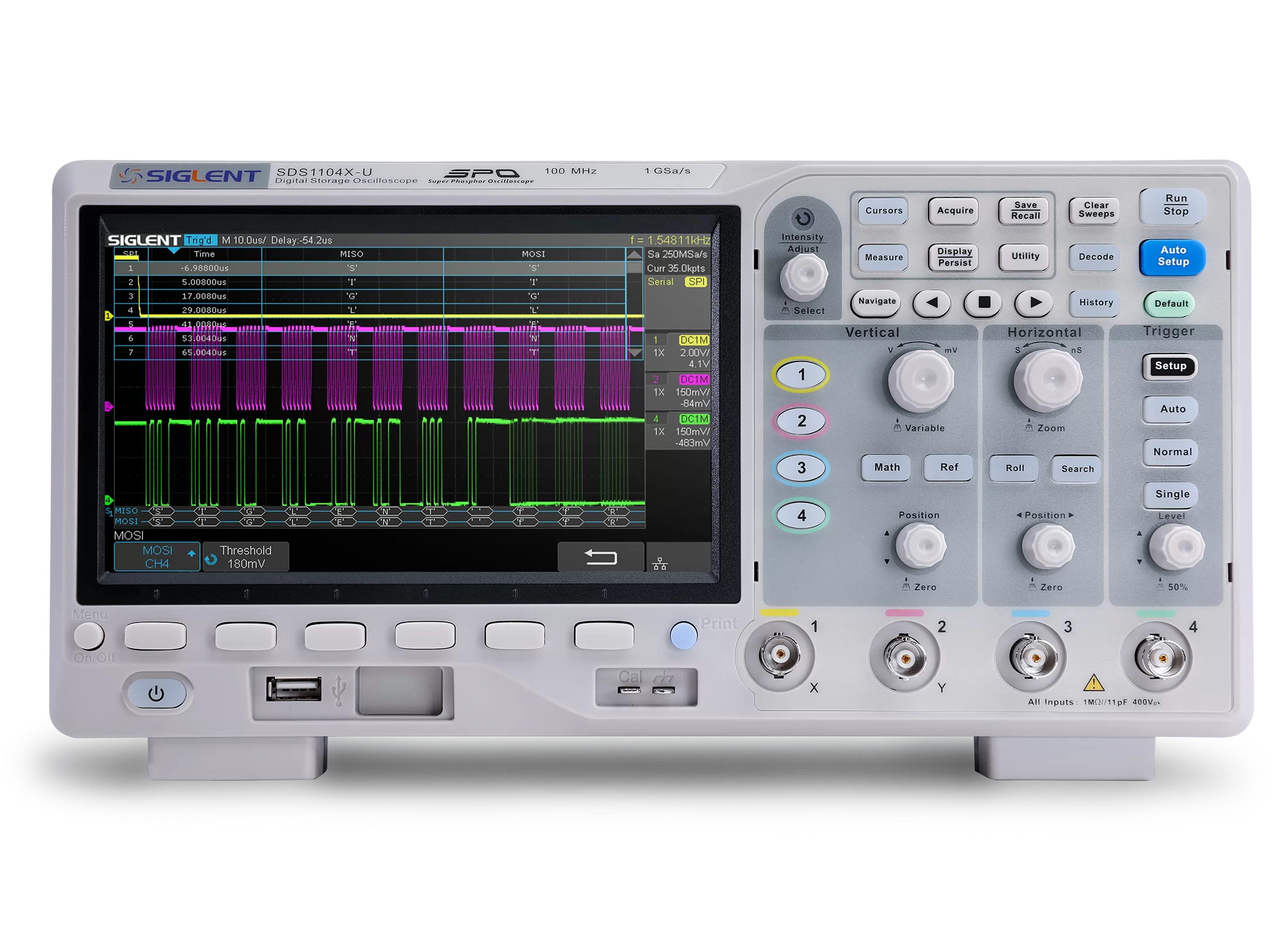

SDS1104X-U



Watch Product Video

Key Features

  • 100 MHz bandwidth
  • Real-time sampling rate up to 1 GSa/s
  • The newest generation of SPO technology
    • Waveform capture rates up to 100,000 wfm/s (normal mode) and 400,000 wfm/s (sequence mode)
    • Supports 256-level intensity grading and color temperature display modes
    • Record length up to 14Mpts
    • Digital trigger system
  • Intelligent trigger: Edge, Slope, Pulse Width, Window, Runt, Interval, Time out (Dropout), Pattern
  • Serial bus triggering and decoding (Standard), supports protocols IIC, SPI, UART, CAN, LIN
  • Video trigger, supports HDTV
  • 10 types of one-button shortcuts, supports Auto Setup, Default, Cursors, Measure, Roll, History, Display/Persist, Clear Sweep, Zoom and Print
  • Segmented acquisition (Sequence) mode, divides the maximum record length into multiple segments (up to 80,000), according to trigger conditions set by the user
  • Automatic measurement function for 38 parameters as well as Measurement Statistics, Zoom, Gating, Math, History and Reference functions
  • History waveform record (History) function (maximum recorded waveform length is 80,000 frames)
  • 128 k pts FFT, supports Peaks and Markers
  • Math functions (FFT, addition, subtraction, multiplication, division, integration, differential, square
    root)
  • Large 7 inch TFT LCD display with 800 * 480 resolution
