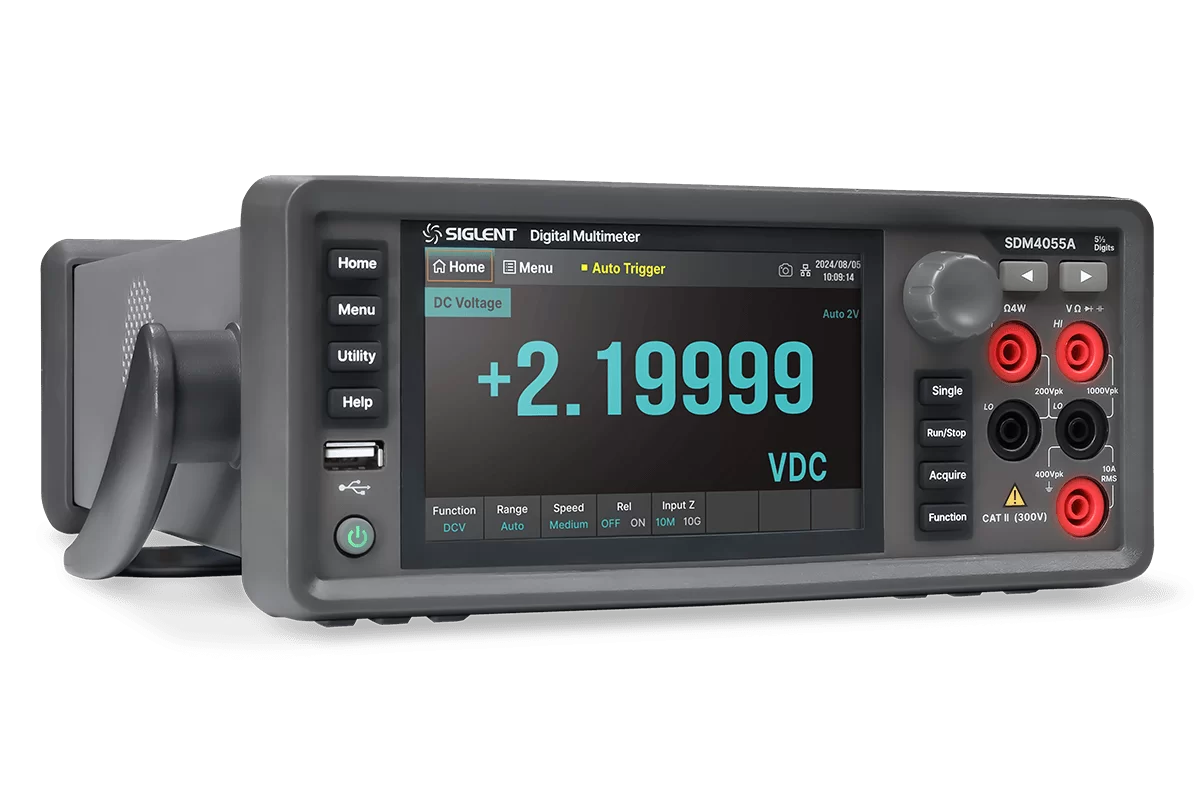

SDM4055A 5½ Digits Dual-Display Digital Multimeters

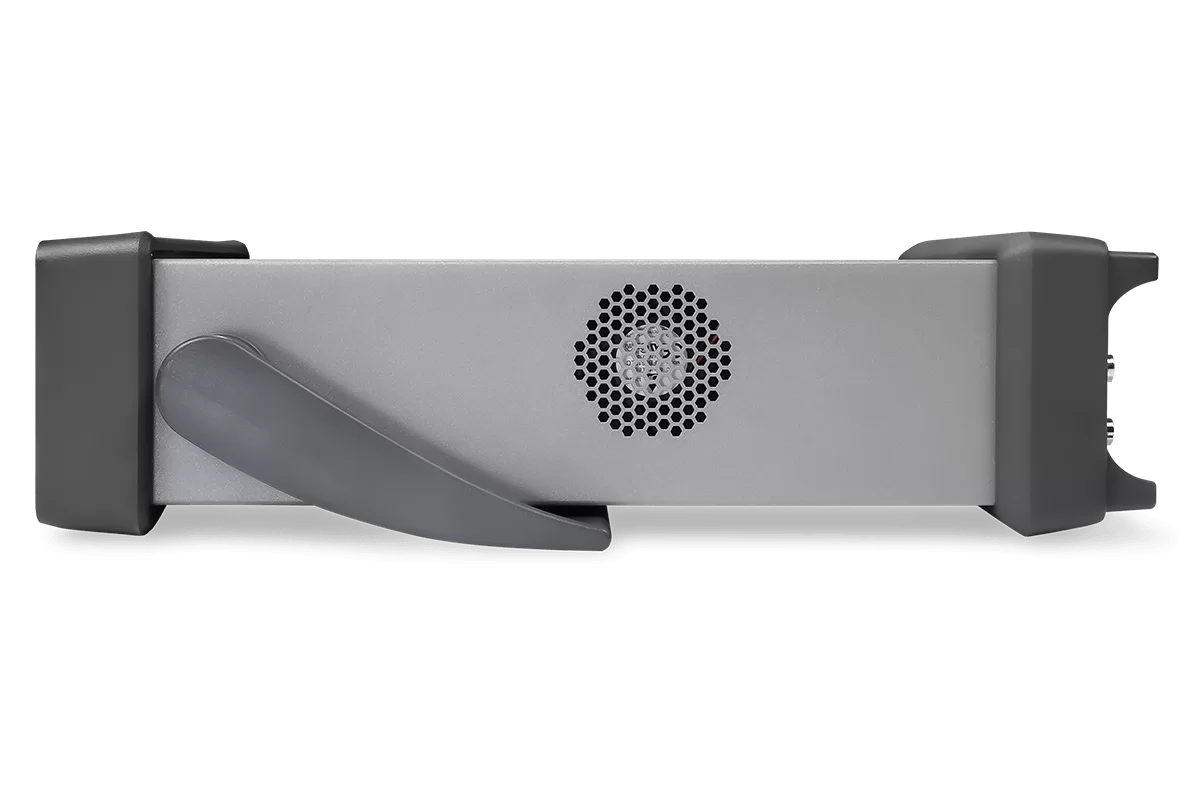

SDM4055A 5½ Digits Dual-Display Digital Multimeters - Image 2

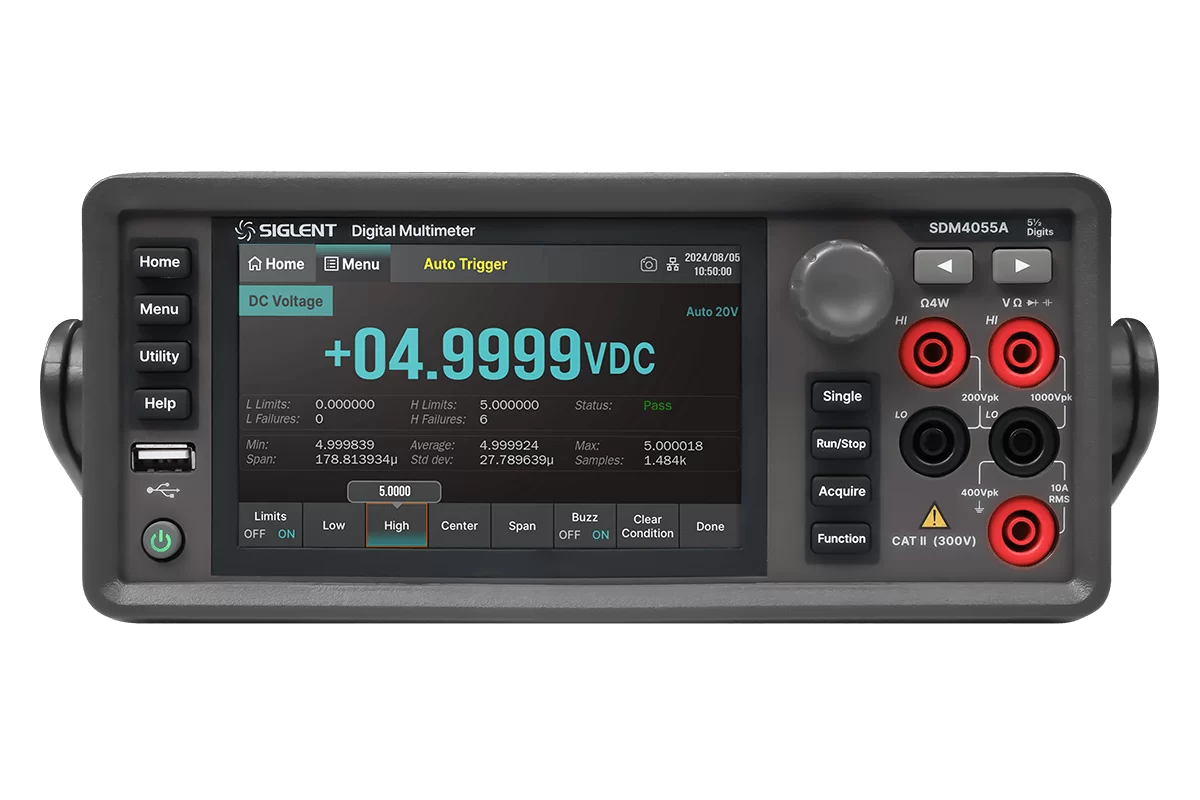

SDM4055A 5½ Digits Dual-Display Digital Multimeters - Image 3

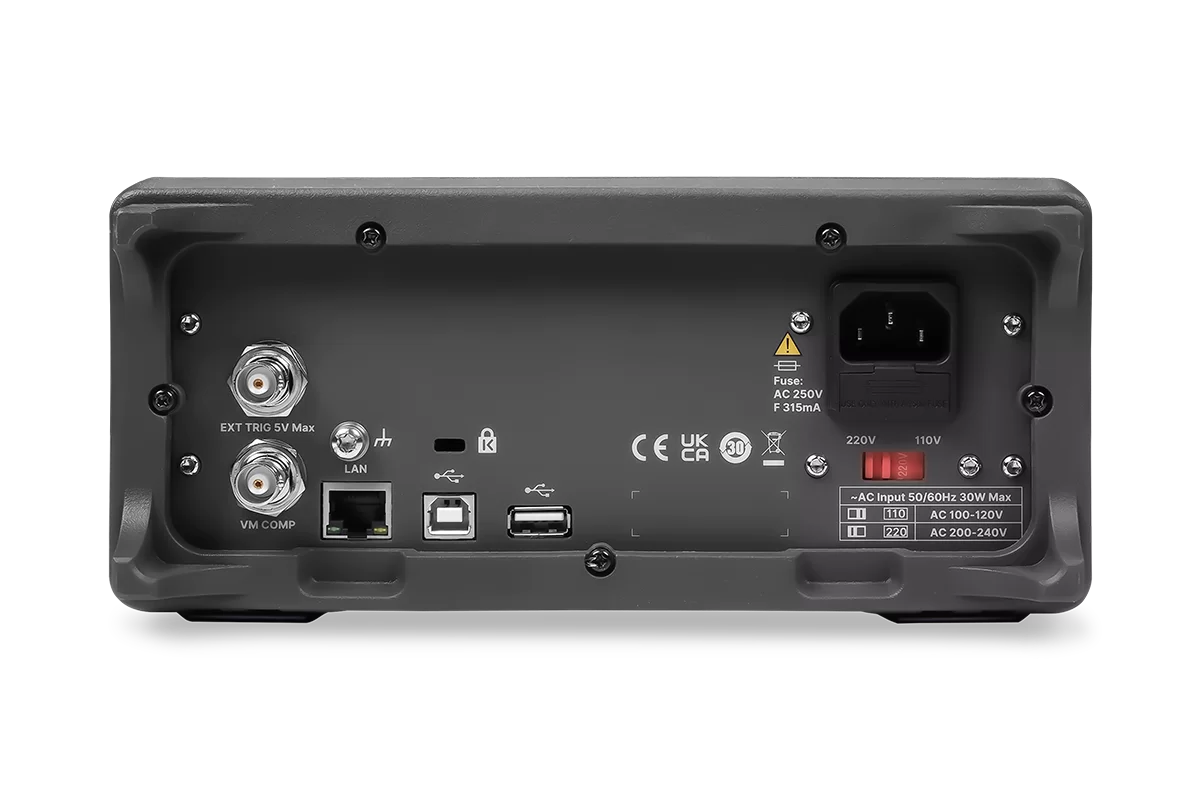

SDM4055A 5½ Digits Dual-Display Digital Multimeters - Image 4

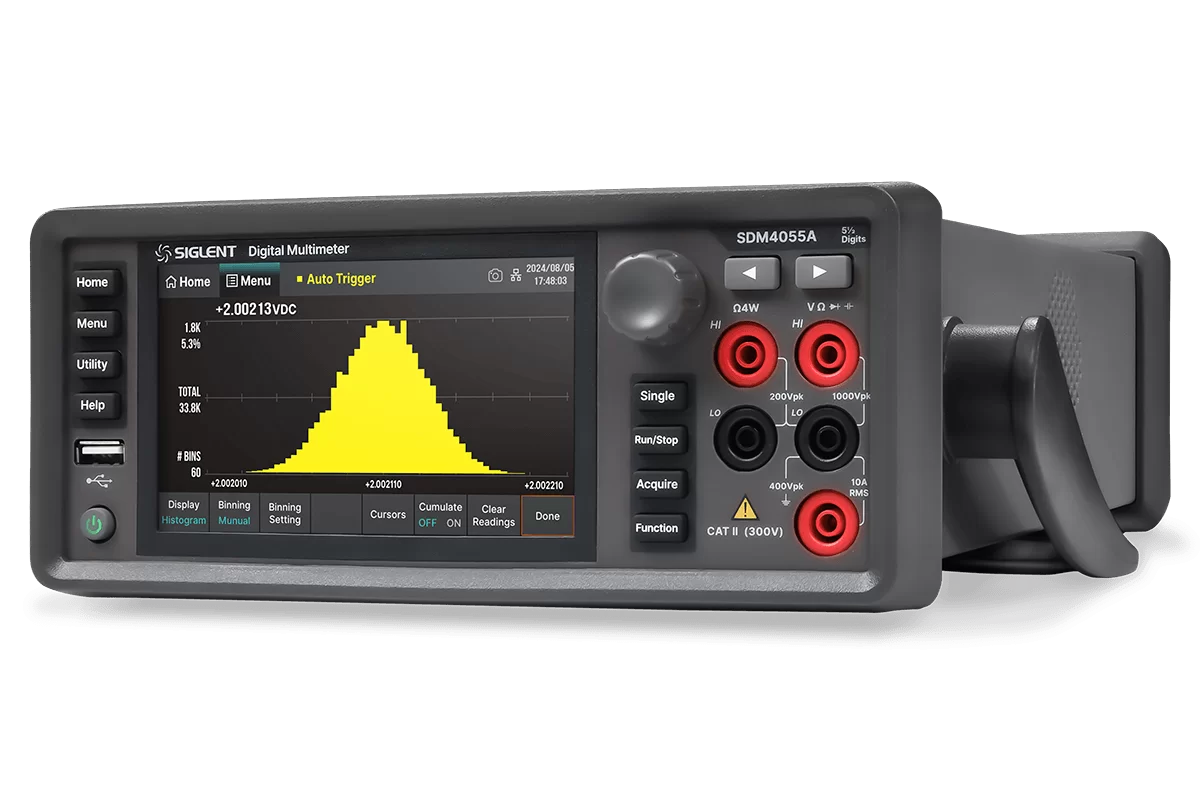

SDM4055A 5½ Digits Dual-Display Digital Multimeters - Image 5

SDM4055A 5½ Digits Dual-Display Digital Multimeters

  • Real 5½ digits readings resolution (220,000 counts)
  • Reading rate from 5 rdgs/s to 4.8k rdgs/s
  • 512 MB RAM, capable of saving up to 2M readings for caching
  • Equipped with EasyDMM-X host computer control and sampling software
  • 5-inch true color TFT-LCD display
Category:
Contact Sales Spec Sheet

Description

Product Overview

The SDM4055A digital multimeter is designed with 5½-digit reading resolution and dual-display, especially suited to the needs of high-precision, multifunction and automatic measurement.

Key Features

  • True-RMS AC Voltage and AC Current Measurements
  • 256 MB Nand Flash, supports storage of various types of files such as readings, images, configuration files
  • Support automatic switching between 10 A high current and 3 A low current measurement modes, and can test up to 30 A when paired with an external shunt
  • Support standard SCPI remote control commands, equipped with EasyDMM-X host computer control and sampling software
  • Communications interface: USB Device (optional USB-GPIB adapter), USB Host, LAN
