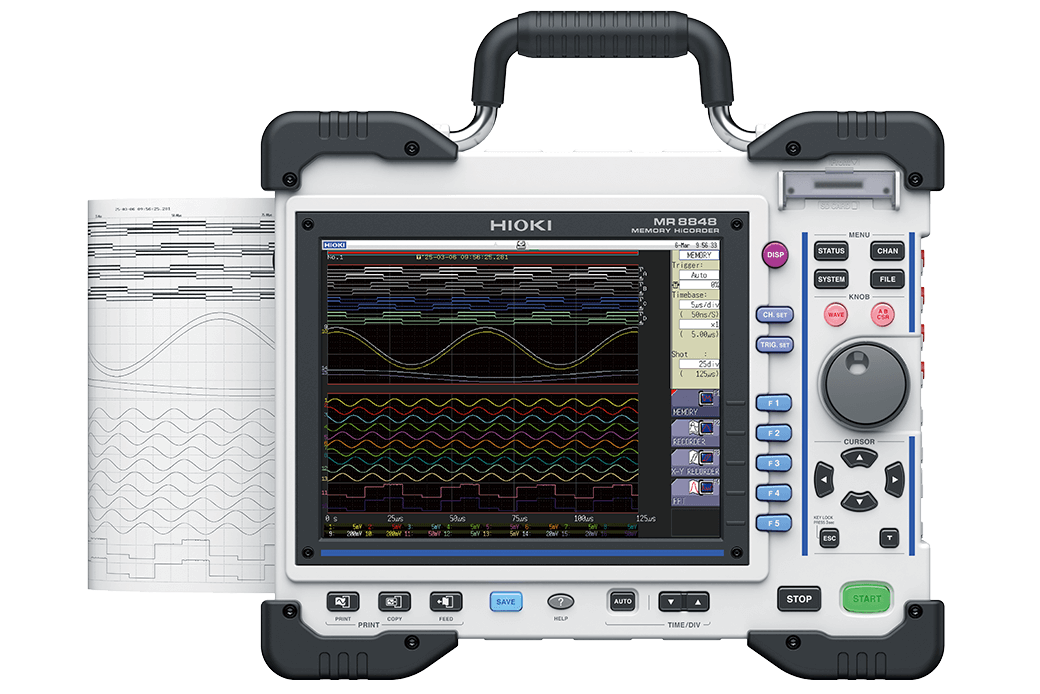

Measurement functions
|
Memory function (waveform recording), Recorder function (peak/trough recording), X-Y Recorder function, FFT function
|
Max. number of channels
|
16 ch analog + 16 ch logic
32 ch analog + 16 ch logic (when U8975 or U8978 × 8 is attached)
10 ch analog + 64 ch logic (when main unit logic + Logic Unit 8973 × 3 is attached)
20 ch analog + 64 ch logic (when U8975 or U8978 × 5 + main unit logic + Logic Unit 8973 × 3 is attached)
|

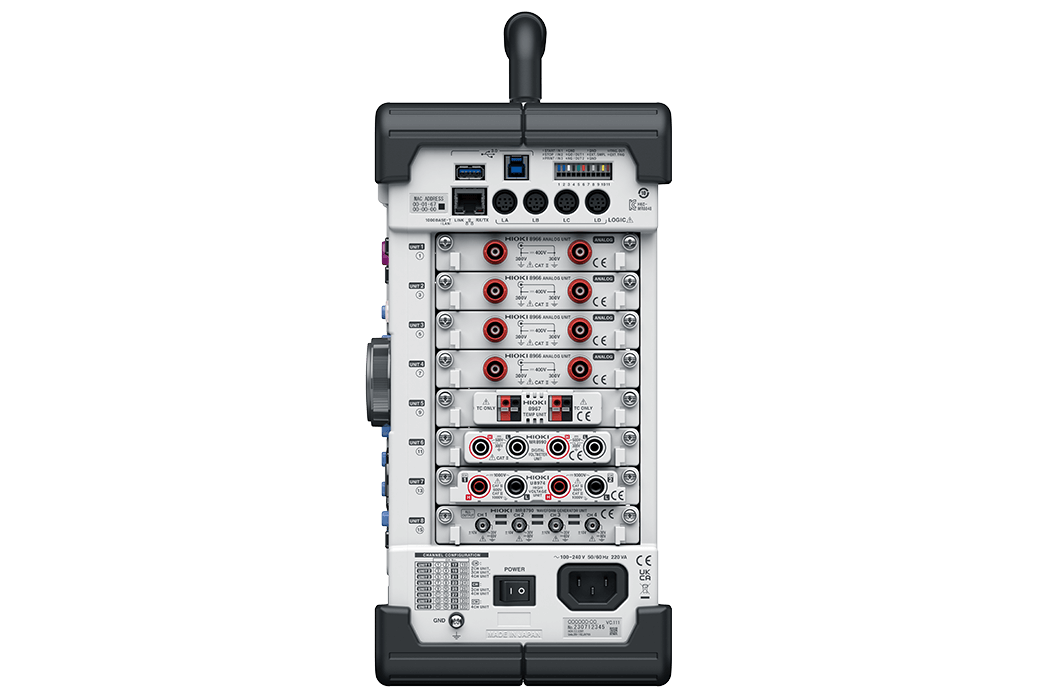

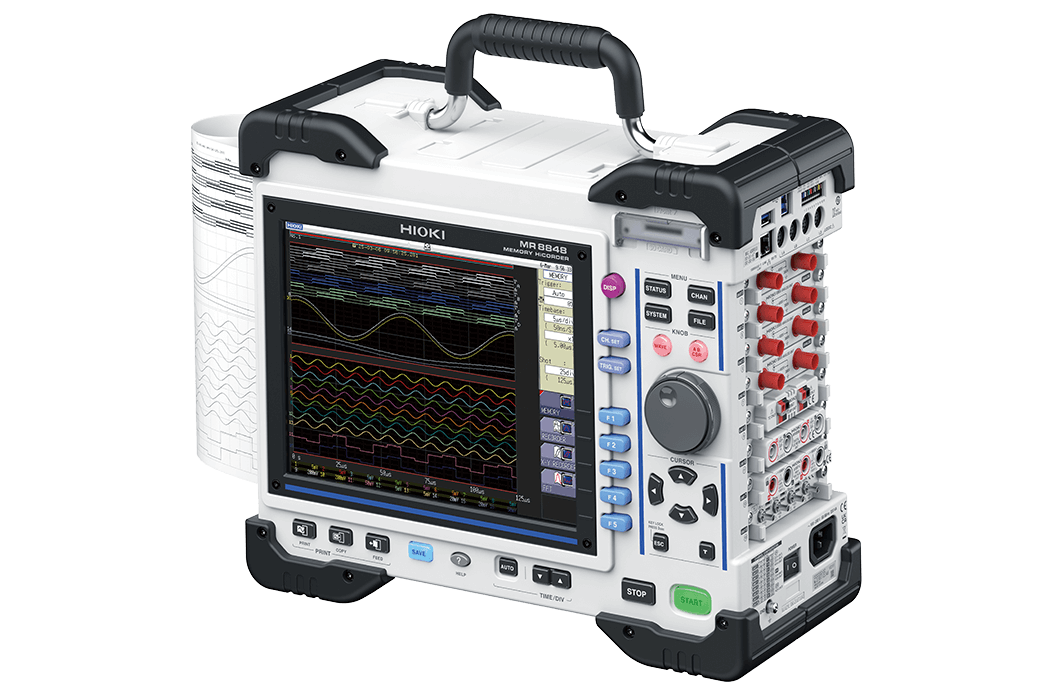

Module slots
|
Up to 8 modules
Restrictions:
Current Unit 8971: up to 4 modules can be installed.
Logic Unit 8973: up to 3 modules can be installed.
3CH Current Unit U8977: up to 3 modules can be installed.
|
Number of main unit logic channels
|
16 (The GND of the logic probe input connector is common with the main unit GND)
When the Digital Voltmeter Unit MR8990 is installed in Unit 1 and 2, the main unit logic cannot be used.
Following restrictions when using the main unit logic (when logic measurement is turned ON):
– The measurement resolution of the modules installed in Unit 1 and 2 will be limited to 12 bits.
– Frequency modules installed in Unit 1 and 2 cannot be used.
|
Max. sampling speed
|
20 MS/s for simultaneous use of all channels (when using the Analog Unit 8966)
10 MS/s for external sampling
|
Memory capacity
|
Total 512 megawords (no memory expansion)
(16 megawords/ch using 32 analog channels, 256 megawords/ch using 2 analog channels)
|
Power supply
|
100 V to 240 V AC, 50/60 Hz, 10 V to 28 V DC (when using the DC Power Unit 9784)
|
Max. rated power
|
130 VA (220 VA when using the Printer Unit U8351)
|
External interfaces
|
LAN, USB, external control terminals
|
External storage
|
SD card slot, built-in drive (1 TB, factory-installed option), USB flash drive
|

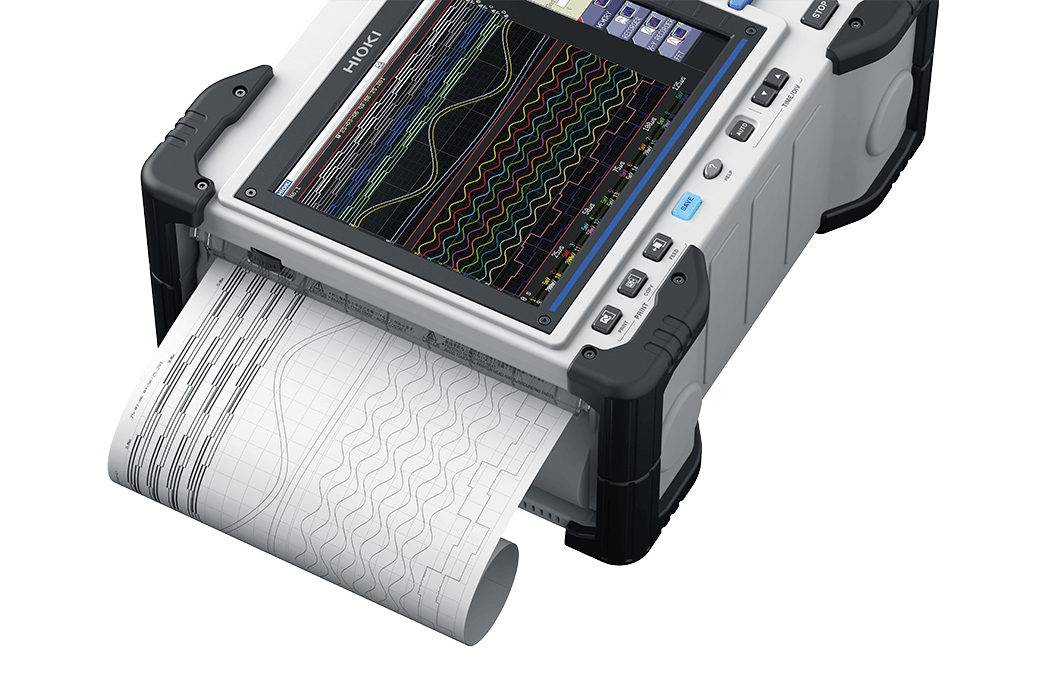

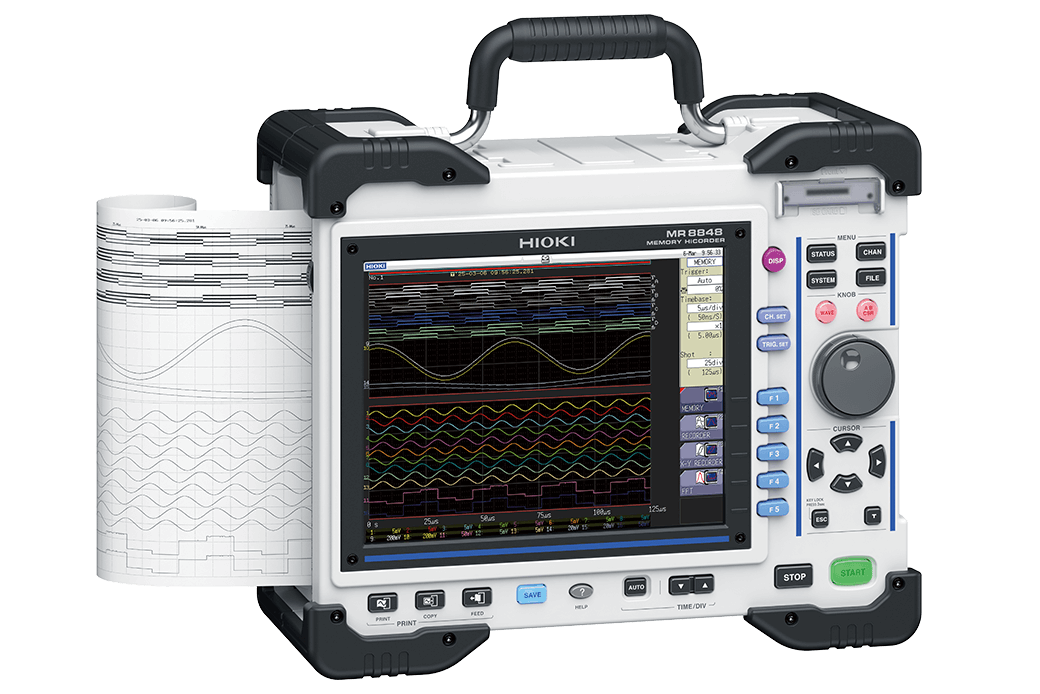

Printer
|
When the factory-installed option Printer Unit U8351 is installed.
Thermal recording method, use the Recording Paper 9231, recording speed 50 mm/s
|
Other functions
|
Trigger, numerical calculation, waveform calculation, storage partitioning, cursor measurement, monitor, position display (VIEW), waveform evaluation, waveform generation
|
Dimensions and weight
|
Approx. 351W × 261H × 140D mm (13.8W × 10.3H × 5.5D in.) (excluding protrusions)
Approx. 365W × 307H × 160D mm (14.4W × 12.1H × 6.3D in.) (including protrusions)
Approx. 6.9 kg (15.2 lbs.) (main unit only)
Approx. 7.4 kg (16.3 lbs.) (when the Printer Unit U8351 is installed)
|
Included accessories
|
Startup Guide × 1, Operating Precautions × 1, input cord label × 1, power cord × 1, Recording Paper (when Printer Unit U8351 is installed) × 1, roll paper attachment (when Printer Unit U8351 is installed) × 2
|
