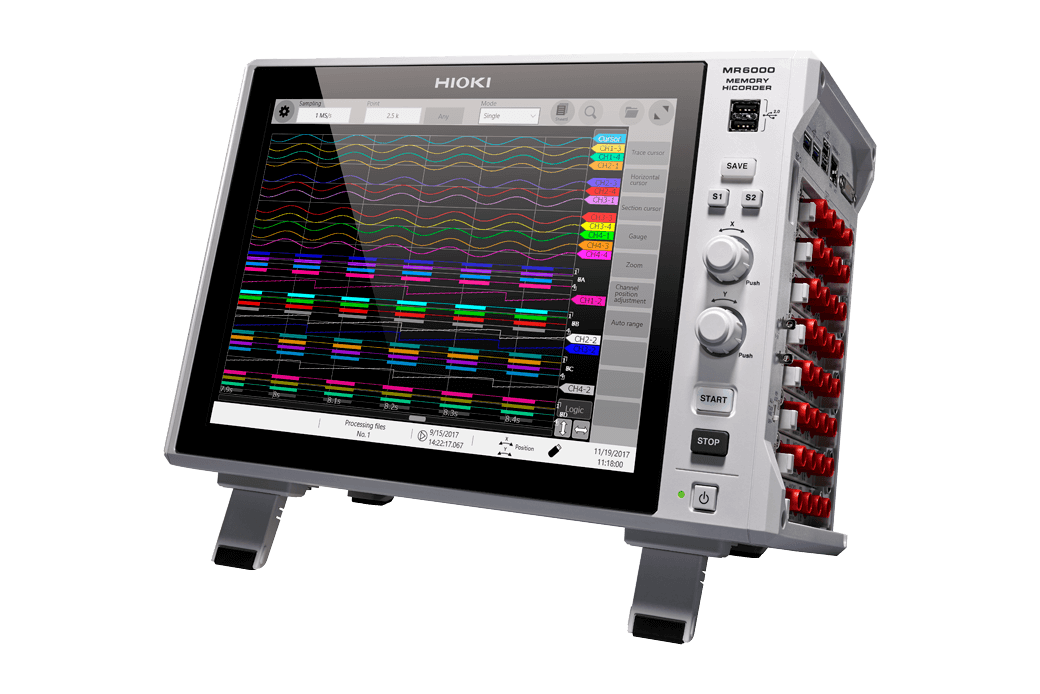

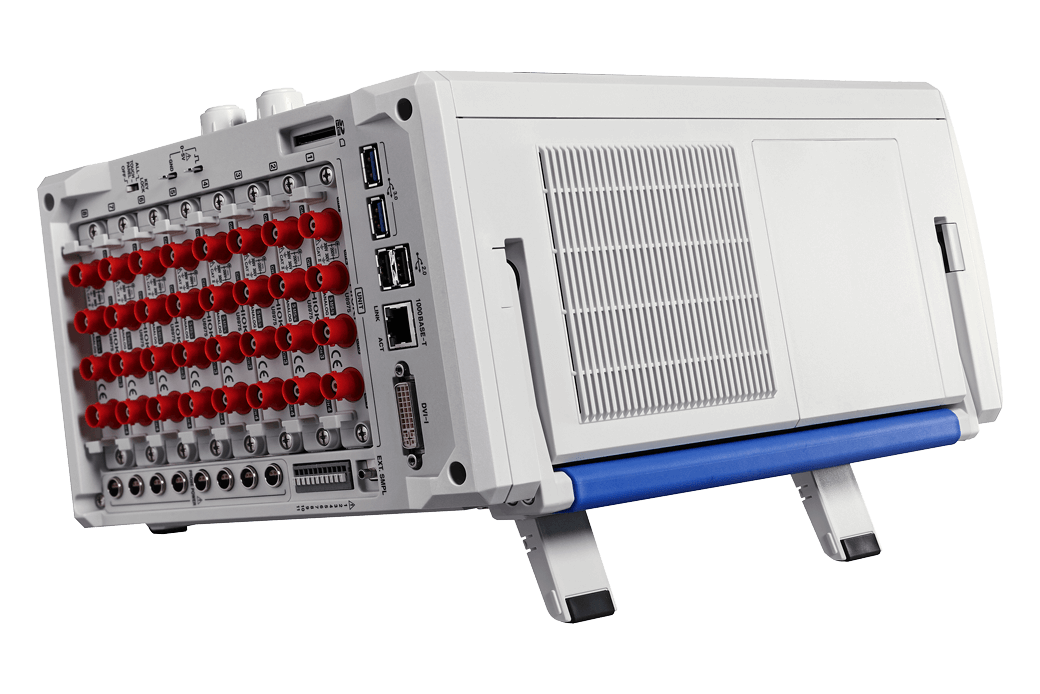

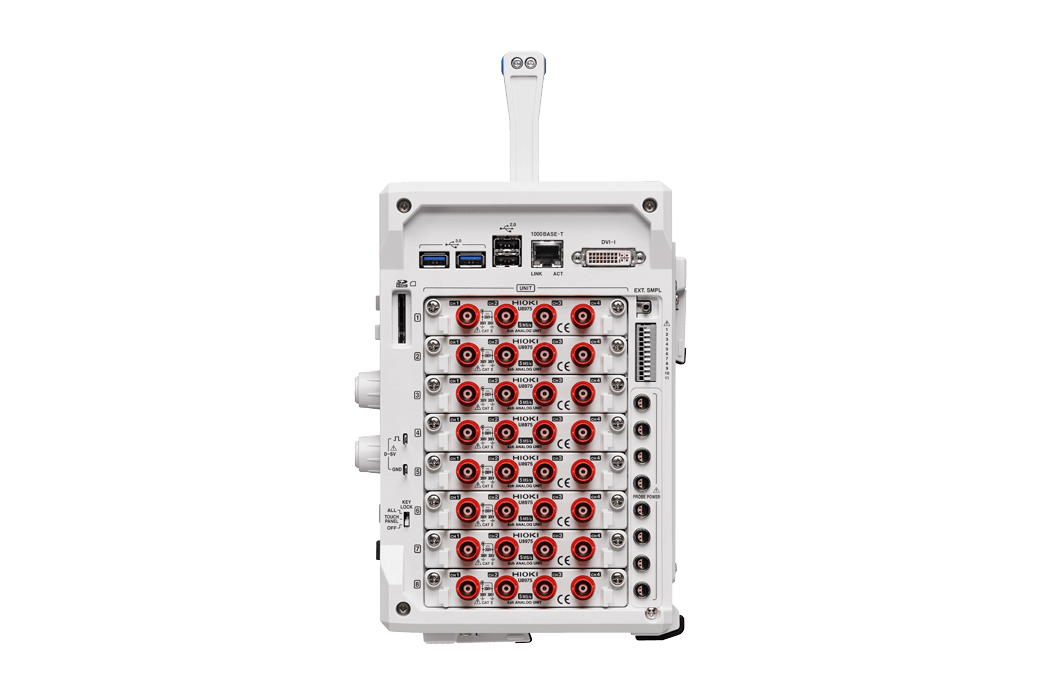

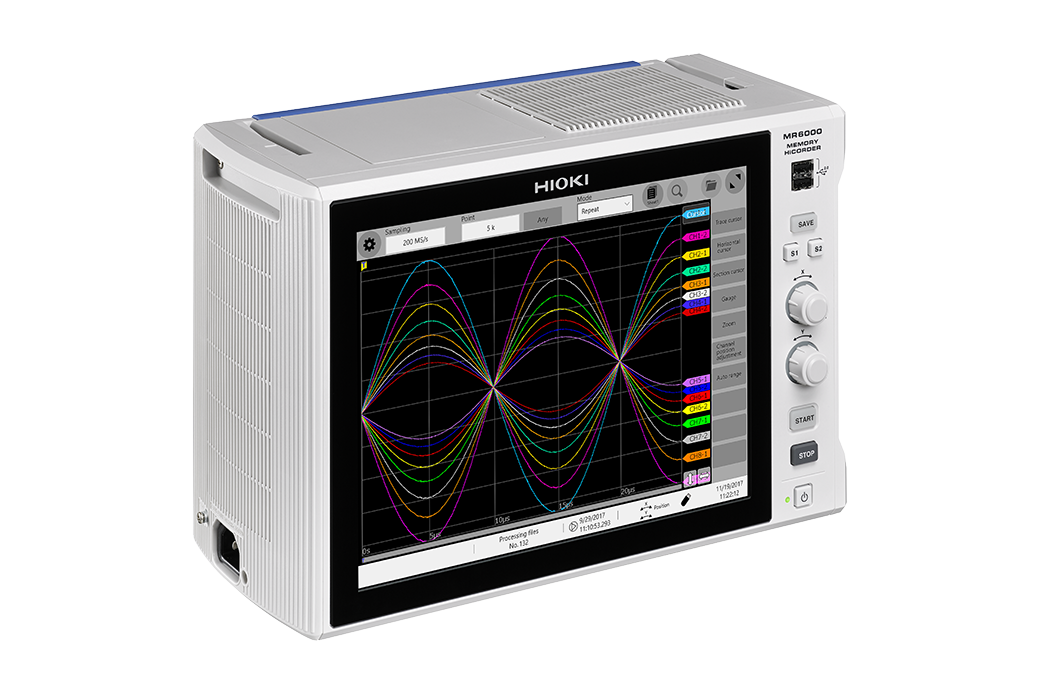

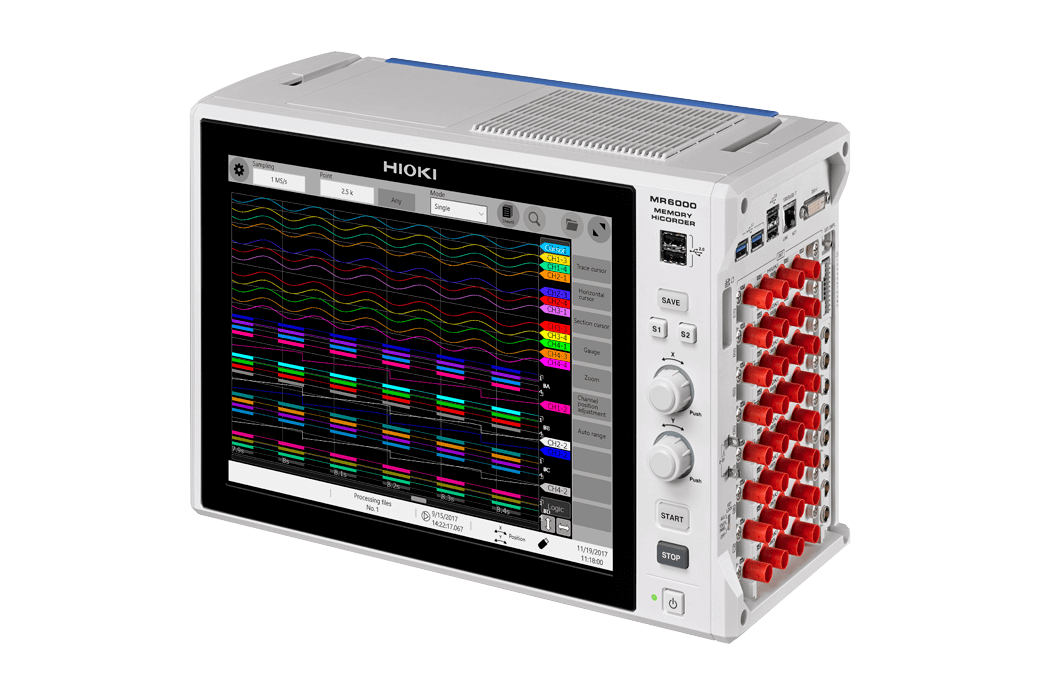

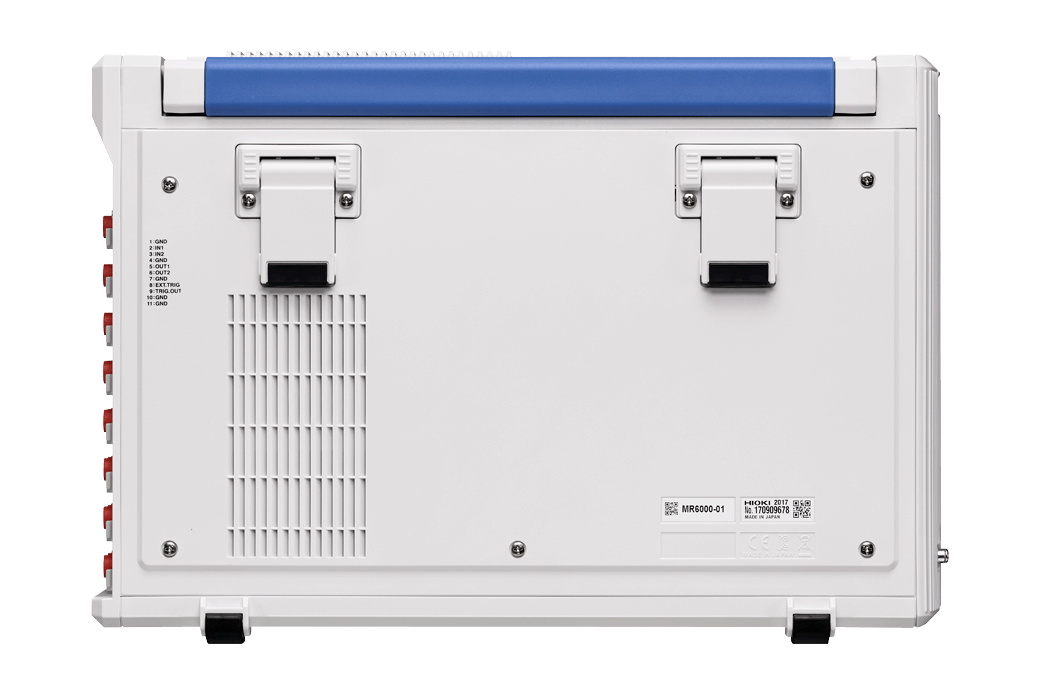

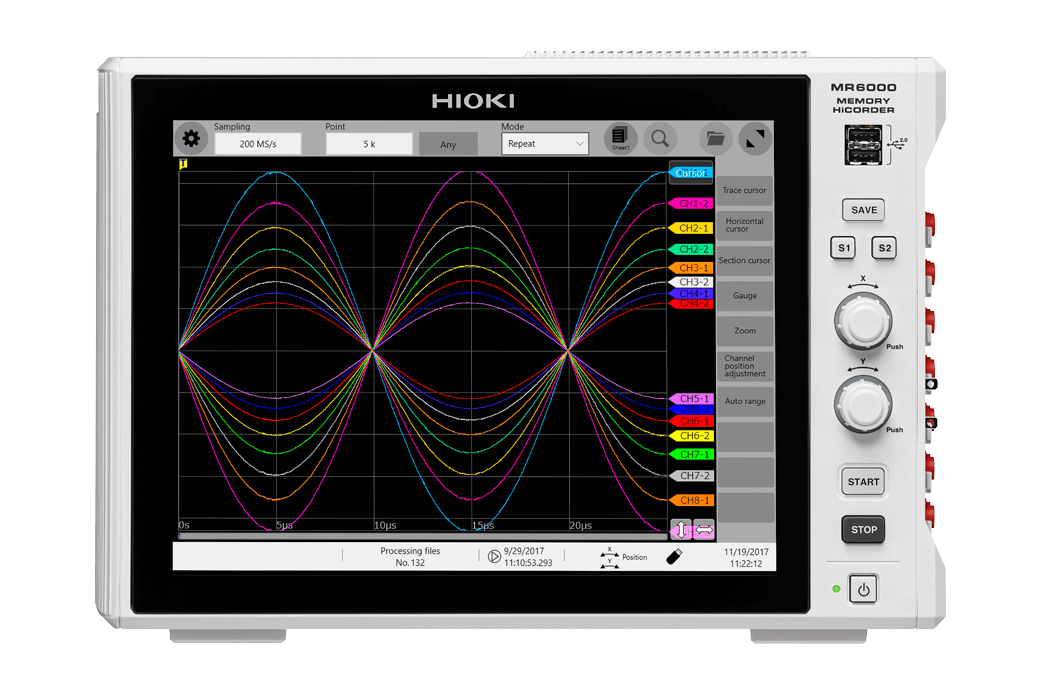

MEMORY HiCORDER MR6000

The MR6000 overcomes all barriers to reach new ground and meet challenges that are yet to be seen. World class specifications, operability and design – Hioki’s newest memory recorder has been re-engineered from top to bottom, delivering unprecedented performance that will change how you look at waveform recording.

Description

Basic specifications

Accuracy guaranteed: 1 year

	MR6000	MR6000-01
Additional function	N/A	Real-time waveform calculation, Digital Filter calculation.
Number of input units	Max. 8 units
Number of channels	Max. 32 analog channels (when using the U8975), or 128 logic channels (when using the 8973)
Measurement ranges (20 div full-scale)	10 mV to 400 V f.s., 12 ranges (when using the U8976), Resolution : 1/1600 of range 4 V to 200 V f.s., 6 ranges (when using the U8975), Resolution : 1/32000 of range
Max. allowable input	1000 V DC / 700 V AC (when using the U8974), 200 V DC (when using the U8975), 400 V DC (when using the U8976)
Frequency characteristics	DC to 30 MHz (when using the U8976), DC to 2 MHz (when using the U8975)
Max. sampling rate	200 MS/s, all channnels simultaneously (when using the U8976) External sampling: 10 MS/s
Recording methods	Normal: Normal waveform recording Envelope: Record maximum and minimum values every fixed period
Storage memory capacity	1 G-words
Removable storage	SD memory card ×1, USB memory ×7, SSD/HDD (built in the main unit) ×1 FTP transmission (to LAN-connected computer) *Use only Storage Media sold by HIOKI.
Display	12.1 inch XGA-TFT color LCD (1024 × 768 dots)
External interfaces	LAN, USB, SD, SATA, Monitor output
Power supply	100 to 240 V AC (50/60 Hz) (300 VA max.)
Dimensions and mass	353 mm (13.9 in)W × 235 mm (9.25 in)H × 154.8 mm (6.09 in)D, 6.5 kg (229.3 oz) (main unit only)
Included accessories	Power cord ×1, Quick start manual ×1, Precautions conserning use ×1, Application disk (CD-R) ×1, Instruction manual (CD-R, detail and calculation) ×1 , Blank panel (for blank slots only)

MEMORY HiCORDER MR6000

Description

Basic specifications

Accuracy guaranteed: 1 year

MR6000

MR6000-01

Additional function

N/A

Real-time waveform calculation, Digital Filter calculation.

Number of input units

Max. 8 units

Number of channels

Max. 32 analog channels (when using the U8975), or 128 logic channels (when using the 8973)

Measurement ranges (20 div full-scale)

10 mV to 400 V f.s., 12 ranges (when using the U8976), Resolution : 1/1600 of range

4 V to 200 V f.s., 6 ranges (when using the U8975), Resolution : 1/32000 of range

Max. allowable input

1000 V DC / 700 V AC (when using the U8974), 200 V DC (when using the U8975), 400 V DC (when using the U8976)

Frequency characteristics

DC to 30 MHz (when using the U8976), DC to 2 MHz (when using the U8975)

Max. sampling rate

200 MS/s, all channnels simultaneously (when using the U8976)

External sampling: 10 MS/s

Recording methods

Normal: Normal waveform recording

Envelope: Record maximum and minimum values every fixed period

Storage memory capacity

1 G-words

Removable storage

SD memory card ×1, USB memory ×7, SSD/HDD (built in the main unit) ×1

FTP transmission (to LAN-connected computer) *Use only Storage Media sold by HIOKI.

Display

12.1 inch XGA-TFT color LCD (1024 × 768 dots)

External interfaces

LAN, USB, SD, SATA, Monitor output

Power supply

100 to 240 V AC (50/60 Hz) (300 VA max.)

Dimensions and mass

353 mm (13.9 in)W × 235 mm (9.25 in)H × 154.8 mm (6.09 in)D, 6.5 kg (229.3 oz) (main unit only)

Included accessories

Power cord ×1, Quick start manual ×1, Precautions conserning use ×1, Application disk (CD-R) ×1, Instruction manual (CD-R, detail and calculation) ×1 , Blank panel (for blank slots only)
