MAS-30A G Meter

MAS-30A G Meter

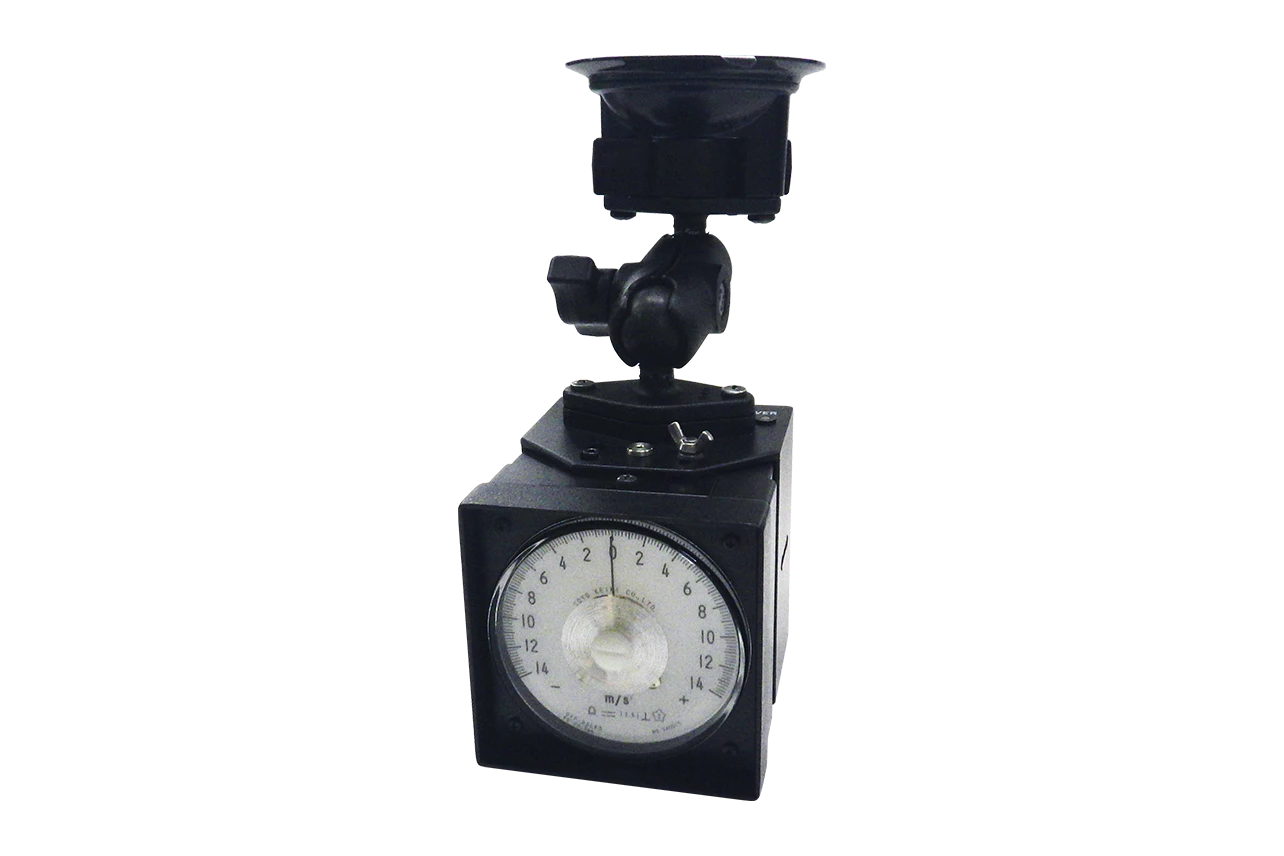

This contains a built-in accelerometer and displays acceleration/deceleration on an analog meter while driving. It can be used to measure acceleration when driving/braking or measure ride comfort.

Categories: ,
Contact Sales

Description



Features

  • Actual vehicle testing support
  • Attaches to glass via suction for checking from the driver’s seat
  • Backlit for visibility even at night

Specifications

General Performance
Measuring Range
Please contact us.
Output Voltage
Please contact us.
Low-pass Filter
Cutoff: 10 Hz ±10%
Damping: -12 ±2 dB/oct.
Meter
Wide-angle analog meter, class 2.5, with LED backlight
Angle adjustable range: approximately 20° left and right against the main unit
Acceleration
Direction Front-back against the main unit
Power Supply
10 to 30 VDC
Power Consumption
With backlight OFF: Approx. 0.6 W
With backlight ON: Approx. 1.0 W
Ambient Conditions
Operating Temperature
0 to 50°C
Operating Humidity
20 to 80% (Non-condensing)
Impact Resistance
58.8 m/s2 （6 G)
Weight
Approx. 710 g

*Specifications and design are subject to change without notice.

*Please contact us for information on product warranties.
