Major Properties
| Materials Resistive element | P-type Si |
|---|---|
| Materials Base | Polyimide |
| Operating temperature in combination with major adhesives after curing (°C) | EP-340：-50 to 150 ºC CC-33A：-50 to 120 ºC |
| Operating temperature in combination with major leadwire cables (°C) | Silver-plated copper wires: -50 to 150 ºC |
| Self-temperature-compensation (°C) | ー |
| Applicable linear expansion coefficients (×10-6/℃) | ー |
| Strain limits at normal temp. (approx. %) | 0.15 |
| Fatigue lives at normal temp. (times) | 2×106（±1000 μm/m) |

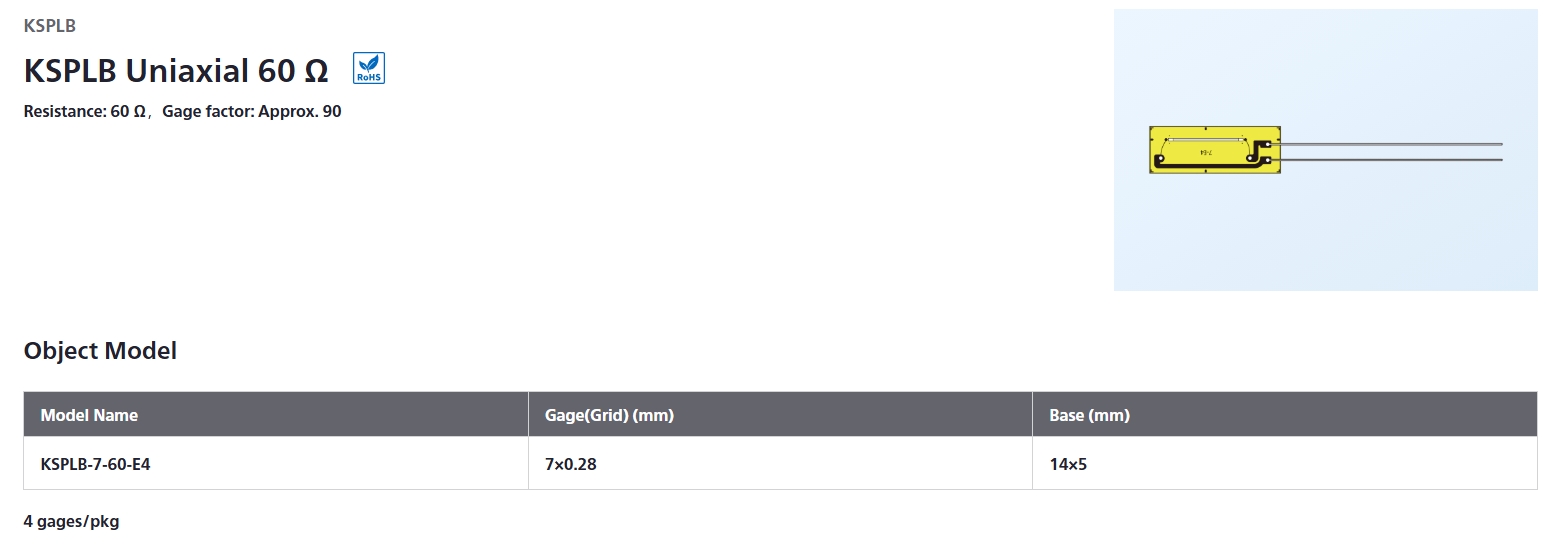

How to order
*Silver-covered copper wires 25 mm long
*4 gages/pkg
