Major Properties
| Materials Resistive element | P type Si |
|---|---|
| Materials Base | Paper base + phenol-epoxy |
| Operating temperature in combination with major adhesives after curing (°C) | CC-33A: -50 to 120ºC CC-36: -30 to 100ºC |
| Operating temperature in combination with major leadwire cables (°C) | Silver-covered copper wires: -50 to 150ºC |
| Self-temperature-compensation (°C) | ー |
| Applicable linear expansion coefficients (×10-6/℃) | ー |
| Strain limits at normal temp. (approx. %) | 0.3 |
| Fatigue lives at normal temp. (times) | 2×106 (±1000μm/m) |

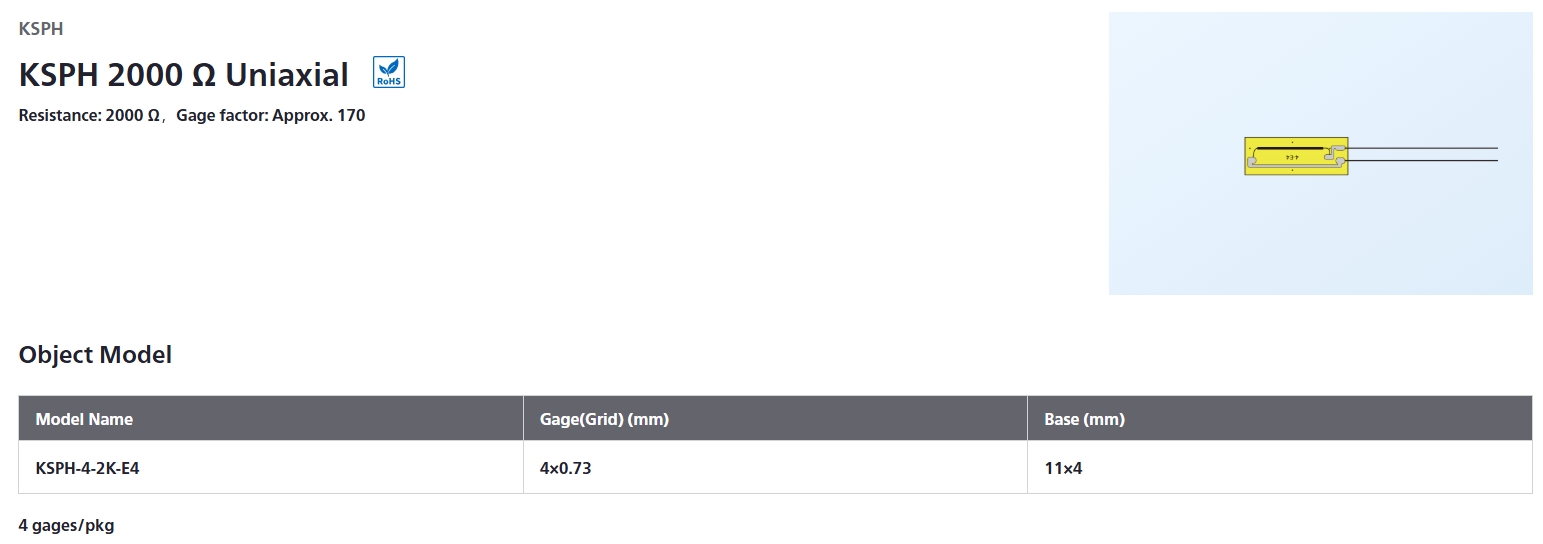

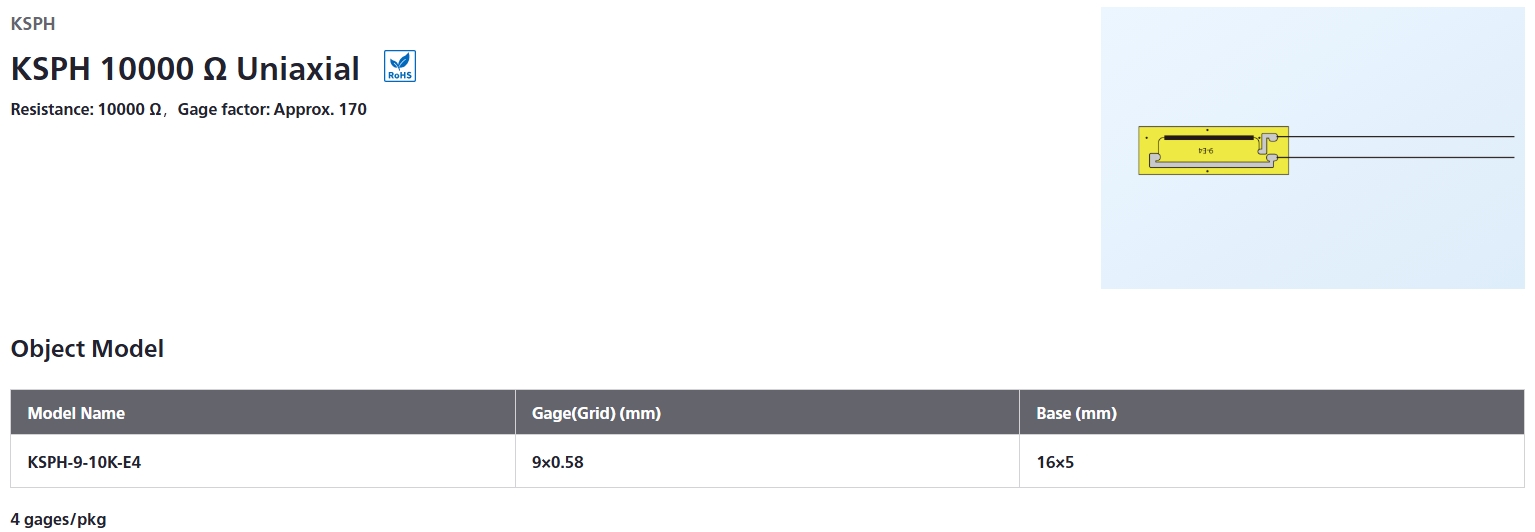

How to order
*Silver-covered copper wires 25 mm long
*4 gages/pkg
