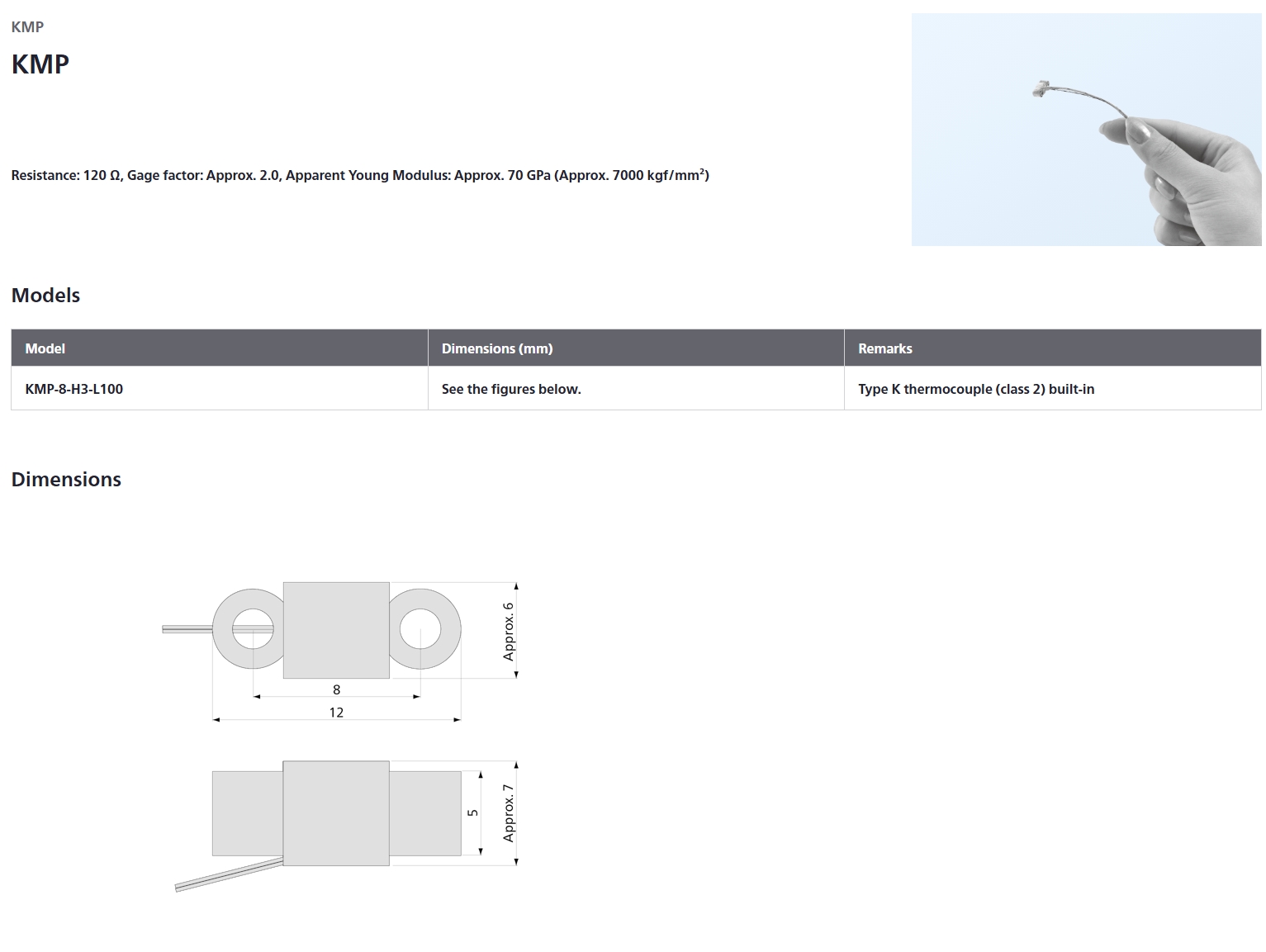

KMP Embedded Gage

These sensors are embedded in resin to measure hardening shrinkage and internal strain of the resin. They are compact and can be used inside resin with complex shapes, making them suitable for applications such as measuring internal stress when used in combination with a metallic material and a material such as epoxy resin. *These gages were invented by Mitsubishi Electric Corporation and are sold as products by Kyowa.

Description

Major Properties

Materials Resistive element	－
Materials Base	Aluminum
Operating temperature in combination with major adhesives after curing (°C)	Embedment: 20 to 150°C
Operating temperature in combination with major leadwire cables (°C)	－
Self-temperature-compensation (°C)	20 to 120°C
Applicable Linear Expansion Coefficients ×10-6/°C	－
Strain limits at normal temp. (approx. %)	－
Fatigue lives at normal temp. (times)	－

How to order

*Polyester-coated copper wires 1 m long

*1 gages/ pkg
