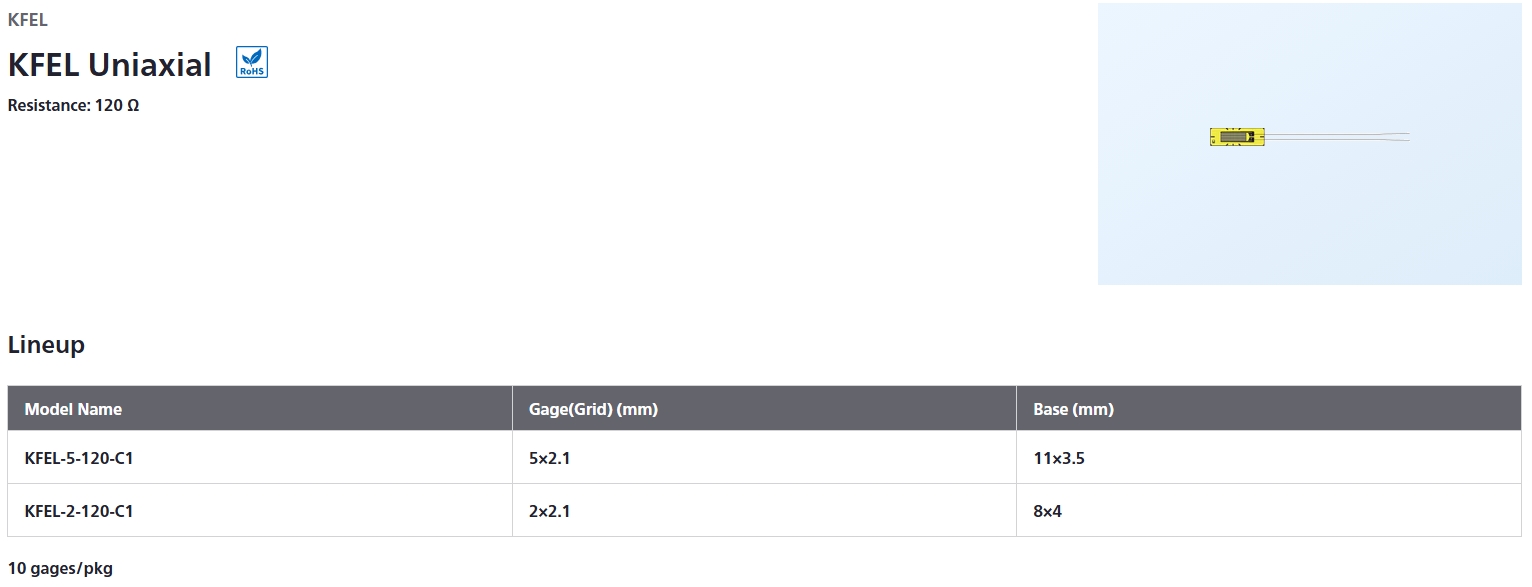

Major Properties
| Materials Resistive element | CuNi alloy foil |
|---|---|
| Materials Base | Polyimide |
| Operating temperature in combination with major adhesives after curing (°C) | CC-36: -10 to 80ºC |
| Operating temperature in combination with major leadwire cables (°C) | Polyester-coated copper wire: -10 to 80ºC Vinyl-coated flat cable (L-6, L-7): -10 to 80ºC |
| Self-temperature-compensation (°C) | ー |
| Applicable linear expansion coefficients (×10-6/℃) | ー |
| Strain limits at normal temp. (approx. %) | 15 |
| Fatigue lives at normal temp. (times) | 1×106 (±1500μm/m) |
Types, lengths and codes of lead-wire cables pre-attached to KFEL
| Model | 2 polyester-coated copper wires | Vinyl-coated flat 2-wire cables | Vinyl-coated flat 3-wire cables | ||
|---|---|---|---|---|---|
| Gage Pattern | C1, D34, D35 | C1 | D34, D35 | C1 | D34, D35 |
| 15 cm | N15C2 | L15C2R | L15C2S | L15C3R | L15C3S |
| 30 cm | N30C2 | L30C2R | L30C2S | L30C3R | L30C3S |
| 1 m | N1M2 | L1M2R | L1M2S | L1M3R | L1M3S |
| 3 m | – | L3M2R | L3M2S | L3M3R | L3M3S |
| 5 m | – | L5M2R | L5M2S | L5M3R | L5M3S |
| Operating Temperature | -10 to 80℃ | ||||
| Remarks | Twisted for ≥ 50 cm | L-6, L-9 for ≥ 6 m | L-7, L-10 for ≥ 6 m | ||
*For other lead-wire cable lengths, contact us.
*Notes on pre-attached lead-wire cables

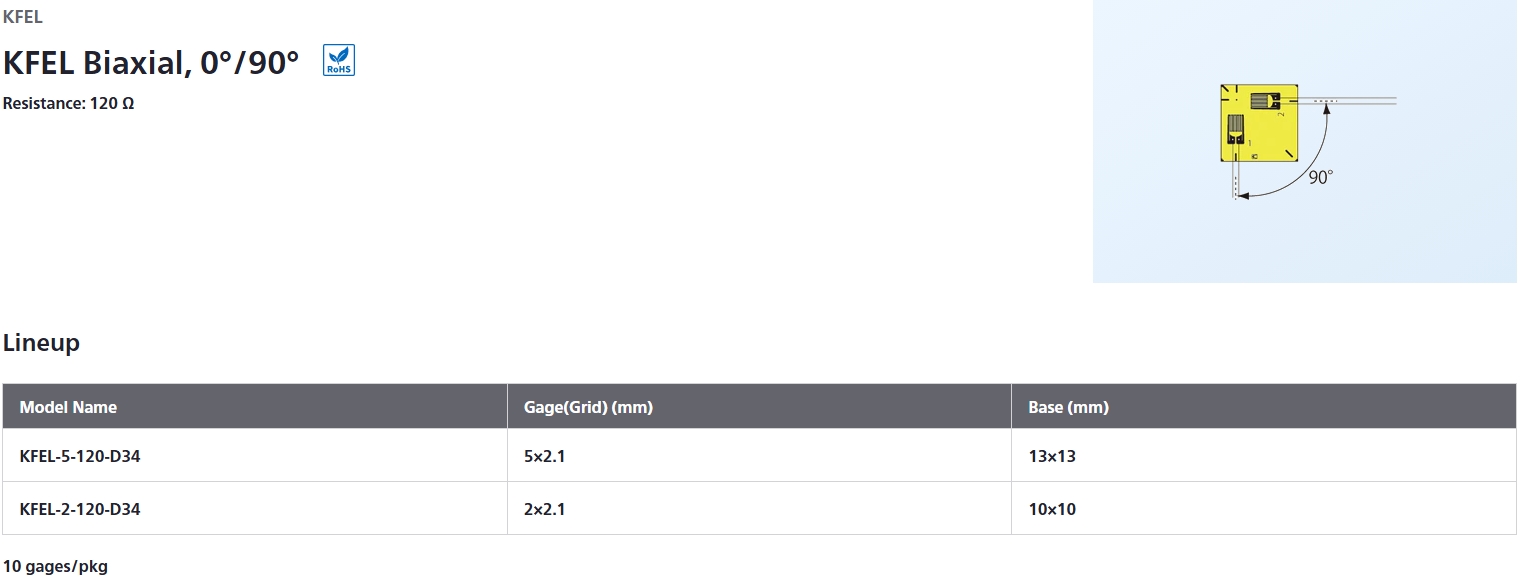

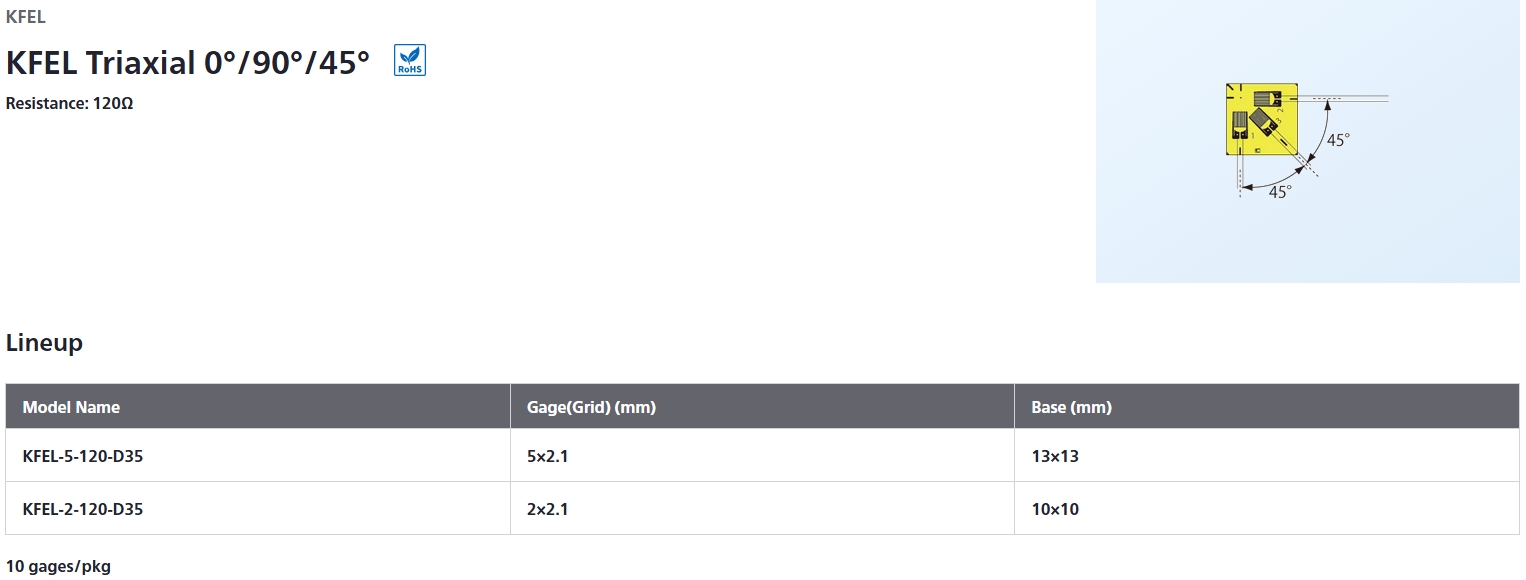

In the case of a biaxial gage and triaxial gage, 2-wire cables are color-coded with red, white and green stripes for 0°, 90° and 45°, respectively and 3-wire cables, with red, yellow and blue stripes for 0°, 90° and 45°, respectively. The letter code is S in common.
How to order
When ordering, suffix the lead-wire cable code to the model number with a space in between.
E.g.
KFEL-5-120-C1 with a vinyl-coated flat 2-wire cable 10 m long pre-attached
→ KFEL-5-120-C1 L10M2R
KFEL-5-120-D35 with a vinyl-coated flat 3-wire cable 5 m long pre-attached
→ KFEL-5-120-D35 L5M3S
If no lead-wire cable code is suffixed, the gage is delivered with gage leads only.
(Silver-covered copper wires 25 mm long)
