ImageIR 9300 Z

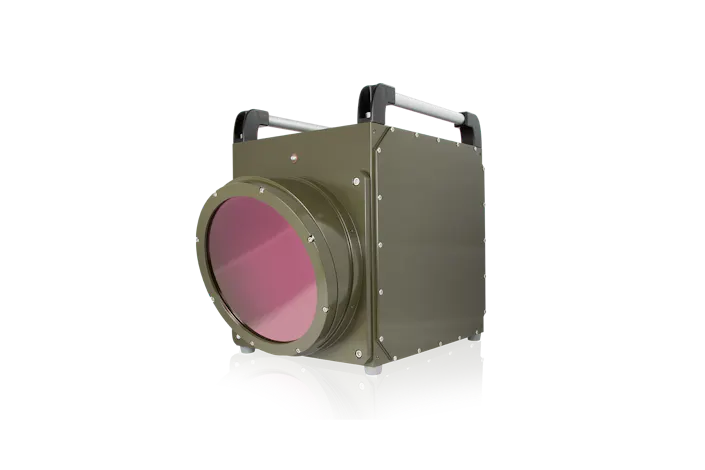

The high-end infrared camera ImageIR® 9300 Z with 30× zoom lens allows effortless handling of complex reconnaissance and surveillance tasks.

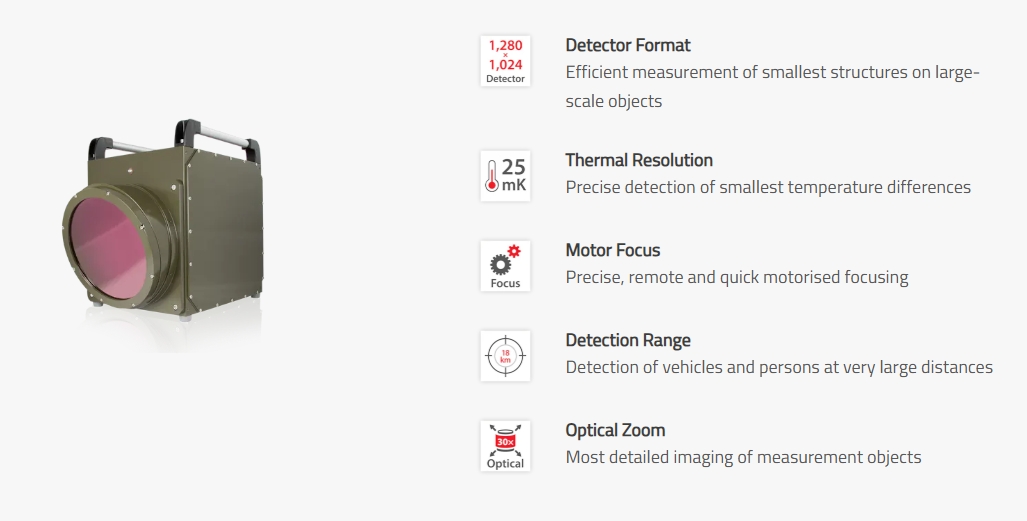

  • High detection ranges
  • Large detector format of (1,280 × 1,024) IR pixels
  • Large pitch size for high sensitivity and very short integration times
  • Very high thermal resolution for outstanding image quality
  • Robust and precise motorized zoom mechanism and extremely powerful 30x zoom optics
Categories: , ,
Contact Sales Spec Sheet

Description

Infrared Detector Inter­face Boosts Camera Full-frame Rate

With the cameras ImageIR® 9300 Z of the infrared camera series ImageIR® InfraTec presents a sophisticated long range infrared camera system in combination with an incredibly powerful zoom lens. State-of-the-art InSb detector technology with a resolution of (1,280 × 1,024) IR pixel offers most sensitive, high-resolution imaging capacity for 24/7 operation even through fog, smoke, day and night. Frame rates of up to 100 Hz support demanding imaging, tracking and monitoring tasks. The detection range of these infrared camera models is outstanding: vehicles can be detected up to 18 km and persons up to 15 km.

The rugged and exact power zoom together with the high-performance 30× zoom lens achieves a continuously adjustable field of view from (39.8 × 32.3)° down to (1.3 × 1.0)° with a detector format of (1,280 × 1,024) IR pixels. Therefore, also objects being far away can be displayed with a high-resolution infrared image. The customisable software interface offers time coded real-time playback.
