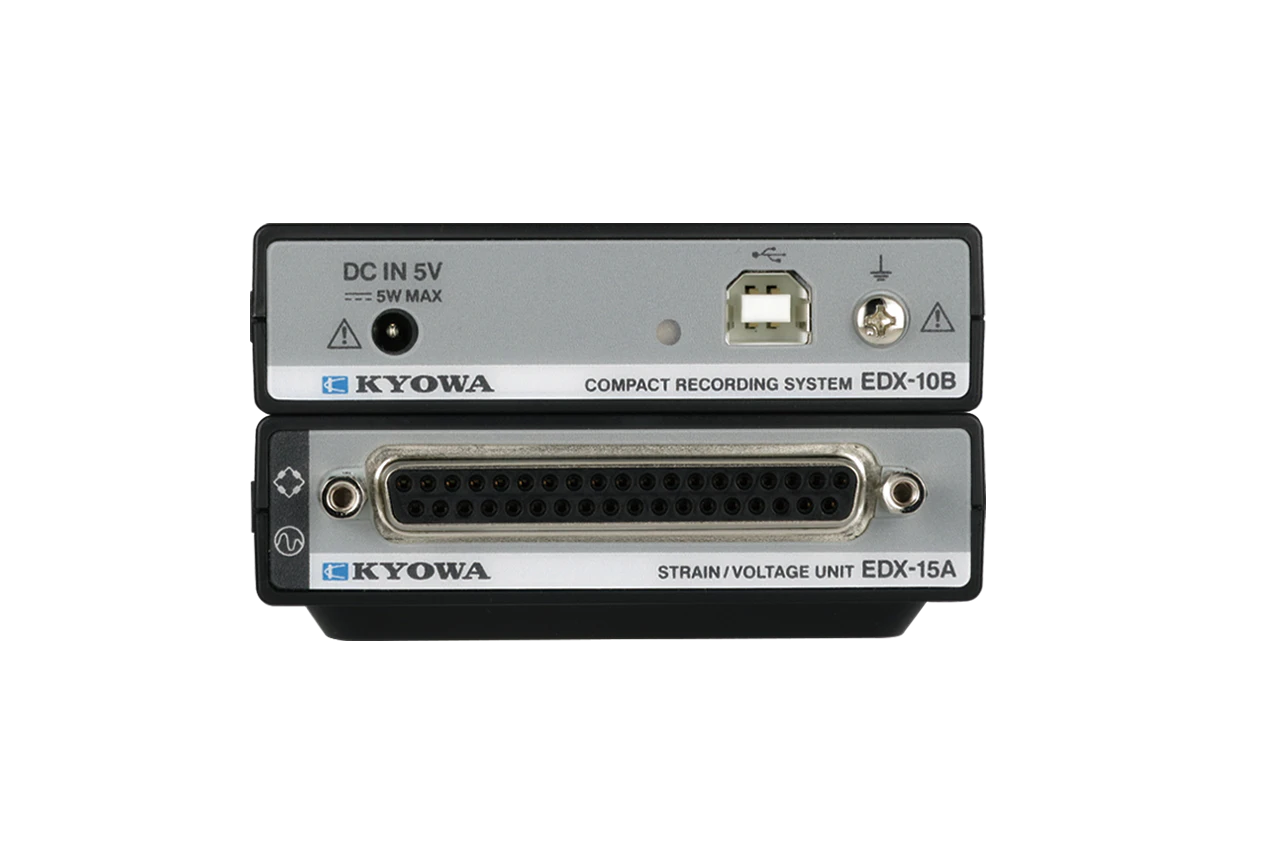

EDX-10 Series Compact Recording System

This is a measuring instrument that can perform measurements simply by being connected to a PC via USB interface. Its ability to be stored in a desk drawer or business bag makes it ideal for small-scale measurements. Channels: Max. 16

Categories: ,
Contact Sales Spec Sheet

Description

Features

  • Compact design with support for power supply from PC
  • Synchronous 4-channel sampling at max. 20 kHz (For one measuring unit)
  • USB bus power-compatible*
  • Stack-type connection not required for synchronous cables, reducing wiring
  • Wide variety of input cables and input adapters

*For details, see specifications of EDX-10B.

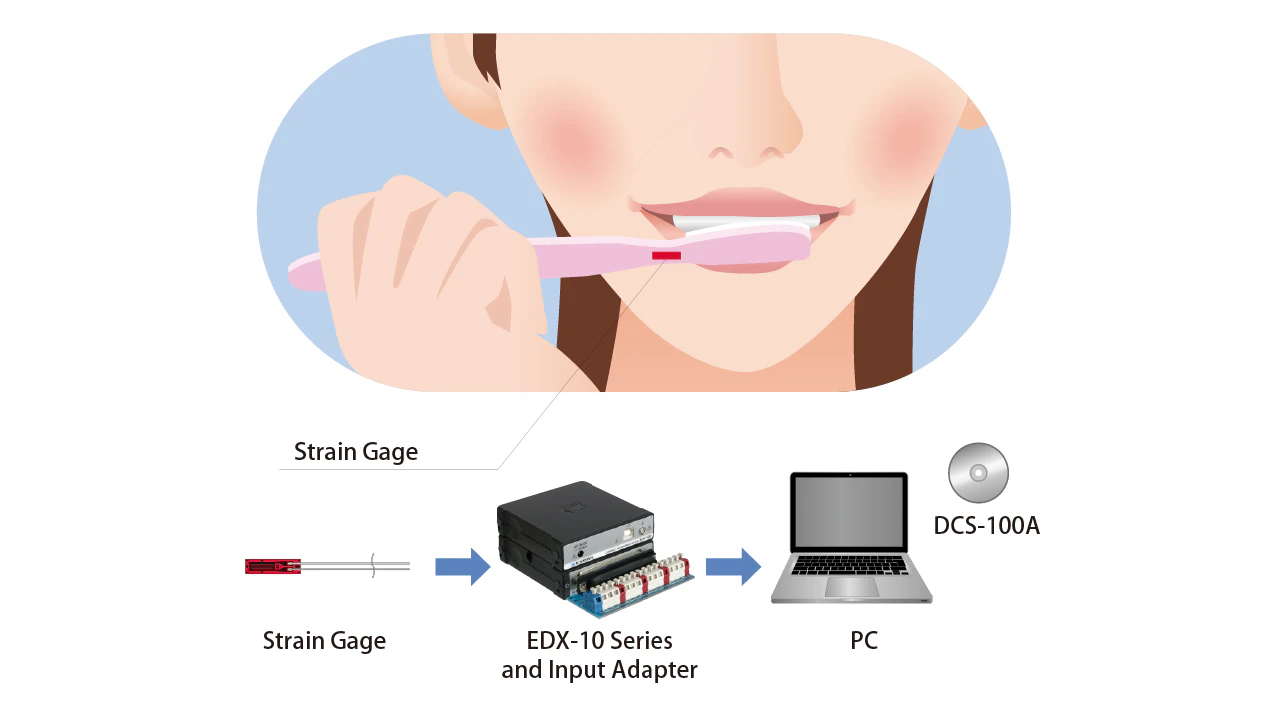

Toothbrush Stress Measurement

Strain gages can be used to measure toothbrush strain and determine toothbrush stress when brushing, in order to verify whether toothbrush quality has improved or whether a particular method of brushing is effective. EDX-10 Series devices are recommended as measuring instruments. They can be powered over USB from a PC, making it easy to take measurements even at sinks or other areas where access to power is limited.

Haptic Control of Robot Arms

LFM-A can be used to measure six component forces (force on three directions and moment around each axis) simultaneously, for use as a haptic sensor. The hollow structure makes it simple to wire to a robot arm. It is also lightweight (compared with other Kyowa products), reducing its impact on whatever is being measured.

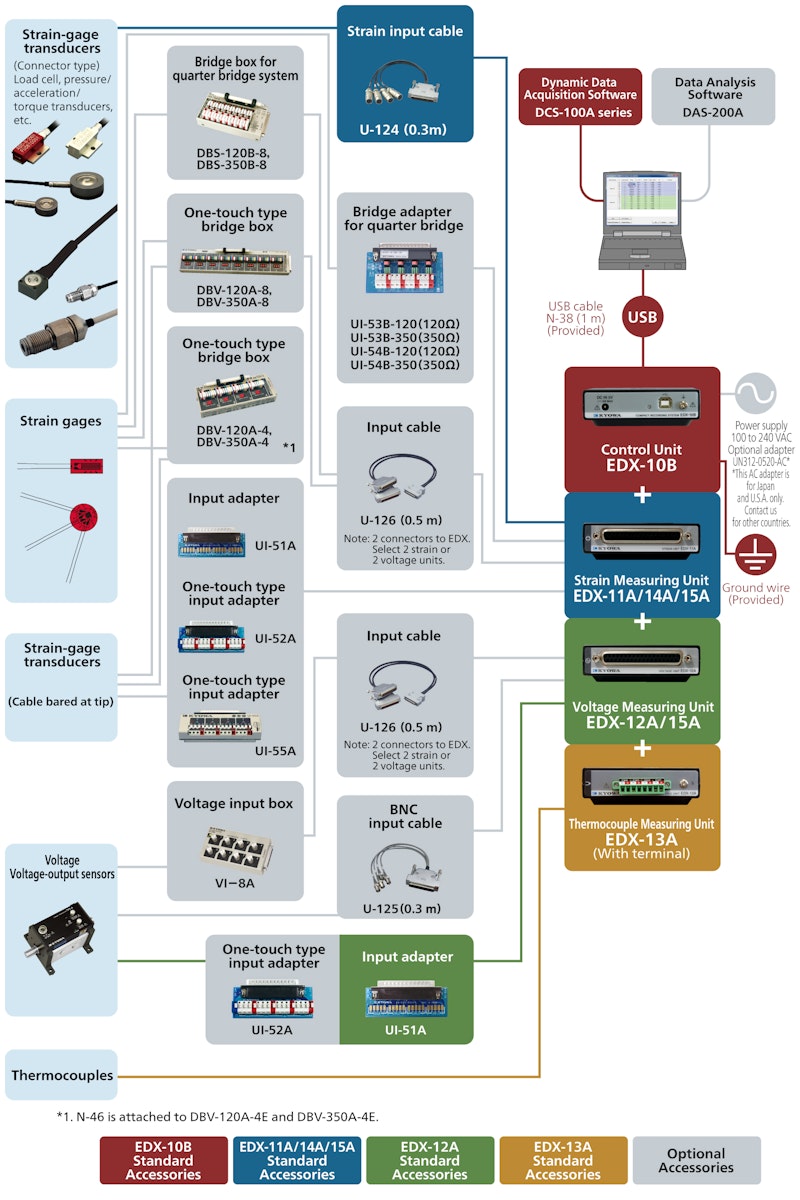

Simplified configuration of the EDX-10 series

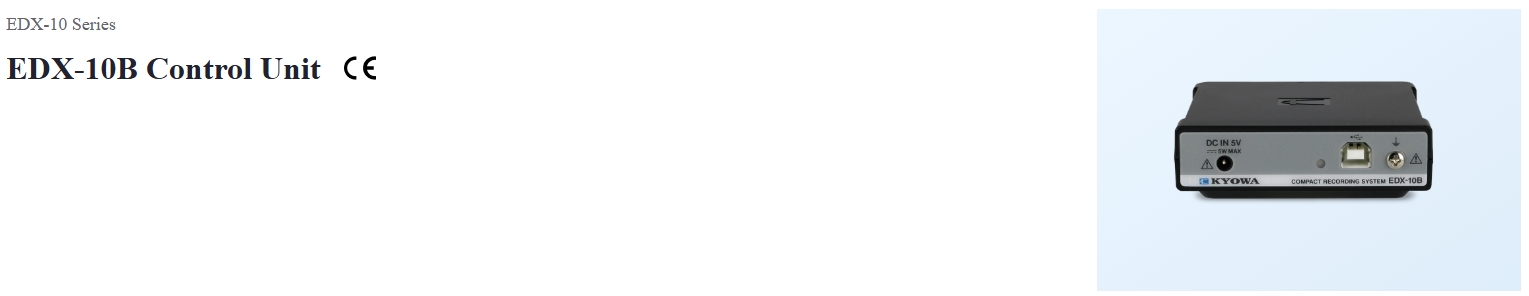

Specifications
Interfaces
USB2.0 compliant
Connector configuration: USB standard B receptacle
Installed Measuring Units
Max. 4 (16 channels)
Sampling Frequencies
1 Hz to 20 k Hz (1 to 4 channels)
1 Hz to 10 k Hz (1 to 8 channels)
1 Hz to 5 k Hz (1 to 16 channels)
Operating Temperature
0 to 40ºC
Operating Humidity
20 to 90% (Non-condensing)
Power Supply
5 VDC USB bus-power (*1)(*2), or Optional Accessory AC adapter (*3)
Current Consumption
140 mA or less (5 VDC)
Weight
Approx. 170 g
Dimensions
84.0 W x 26.6 H x 84.0 D mm (Excluding protrusions)
Control Software
DCS-100A
Compliance
Directive 2014/30/EU (EMC)
Directive 2011/65/EU, (EU) 2015/863 (10 restricted substances) (RoHS)
Standard Accessories
USB cable N-38 (1 m)
Ground wire P-72 (5 m)
DVD (Dynamic data acquisition software DCS-100A)
Optional Accessories
AC adapter UN312-0520-AC

(*1) When using USB bus-power, please connect directly to the USB port of the PC without using a USB hub.

(*2) The number of measurement units at USB bus-power operation, refer to the following table.

USB ports
The number of EDX-11A
The number of EDX-12A/13A/14A/15A
The maximum number of the unit
USB 3.0
0
Up to 4 units in any combination
Max. 4
1
Until either 1 unit
Max. 2
2
0
USB 2.0
0
Up to 2 units in any combination
Max. 2
1
0
Max. 1

(*3) When using AC adapter, it can be connected up to 4 units in any combination using the EDX-11A/12A/13A/14A/15A.

Dimensions

Specifications

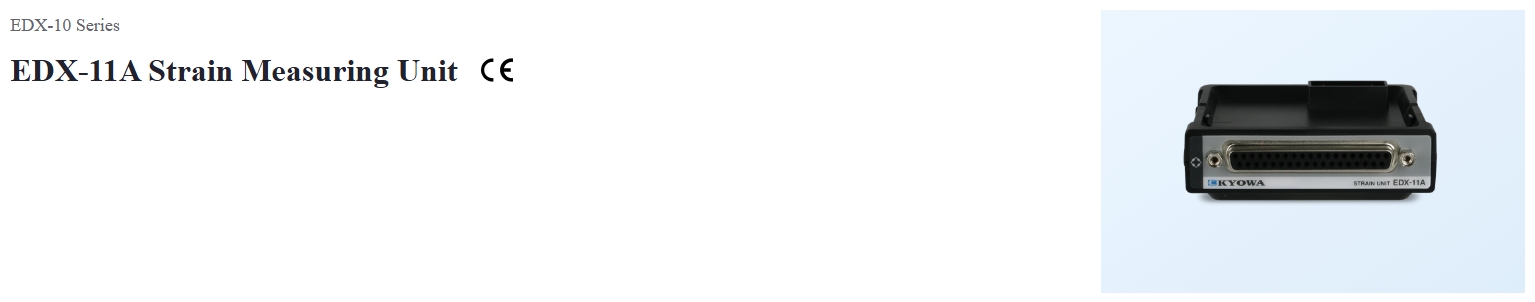

Measuring Targets
Strain-gage transducers, strain gage
*Bridge boxes or input adapters are required for strain measurement.
Channels
4
Measuring Range
10 k, 50 k ×10-6 strain (2 steps)
Balance Adjustment
Within ±1/2 F.S. of setting range
Compatible Bridge Resistance
120 Ω to 1 kΩ
Bridge Excitation
2 VDC
Gage Factor
2.00 fixed
Range Accuracy
Each range within ±0.3%FS
Nonlinearity
Within ±0.1%FS
AD Converter
24 bits
Frequency Response
DC to 2 kHz
LPF
Cutoff frequencies : Lo (100 Hz), Hi (2 k Hz)
Transfer characteristic : 2nd order Butterworth
Operating Temperature
0 to 40ºC
Operating Humidity
20 to 90% (Non-condensing)
Input Connectors
D-sub 37-pin connector
Power Supply
5 VDC supplied by control unit
Current Consumption
180 mA or less
(120 Ω load with all channels connected, at power supply 5 VDC)
Weight
Approx. 150 g
Dimensions
84.0 W × 26.6 H × 84.0 D mm
(Excluding protrusions)
Compliance
Directive 2014/30/EU (EMC)
Directive 2011/65/EU, (EU) 2015/863 (10 restricted substances) (RoHS)
Standard Accessories
Strain input cable U-124 (30 cm)
Optional Accessories
Bridge box connection cable U-126 (50 cm)
Input connector set EDX10-DSUB
Input adapter UI-51A
One-touch type input adapter UI-52A, UI-55A
Bridge adapter for quarter bridge system UI-53B-120/350
Bridge adapter for quarter bridge system UI-54B-120/350

Dimensions

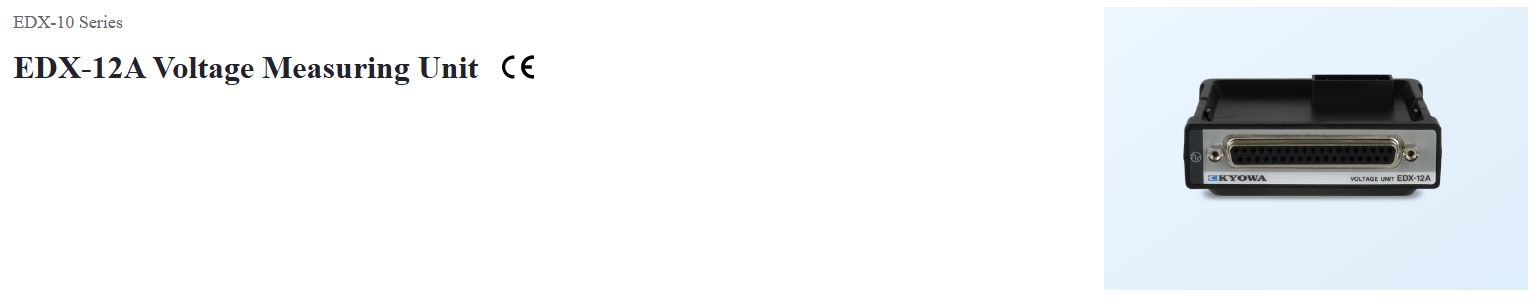

Specifications
Measuring Targets
Voltage
Channels
4 (Single end)
Measuring Range
10 V, 50 V (2 steps)
Range Accuracy
Each range within ±0.3%FS
Balance Adjustment
Within ±1/2 FS of setting range
Nonlinearity
Within ±0.1%FS
AD Converter
24 bits
Frequency Response
DC to 2 kHz
LPF
Cutoff frequencies : 100 Hz, 2 k Hz
Transfer characteristic : 2nd order Butterworth
Operating Temperature
0 to 40ºC
Input Connectors
D-sub 37-pin connector
Power Supply
5 VDC supplied by control unit
Current Consumption
110 mA or less (5 VDC)
Weight
Approx. 150 g
Dimensions
84.0 W × 26.6 H × 84.0 D mm
(Excluding protrusions)
Compliance
Directive 2014/30/EU (EMC)
Directive 2011/65/EU, (EU) 2015/863 (10 restricted substances) (RoHS)
Standard Accessories
Input adapter UI-51A
Optional Accessories
BNC input cable U-125 (30 cm)
Bridge box connection cable U-126 (50 cm)
Input connector set EDX10-DSUB
One-touch type input adapter UI-52A
Dimensions

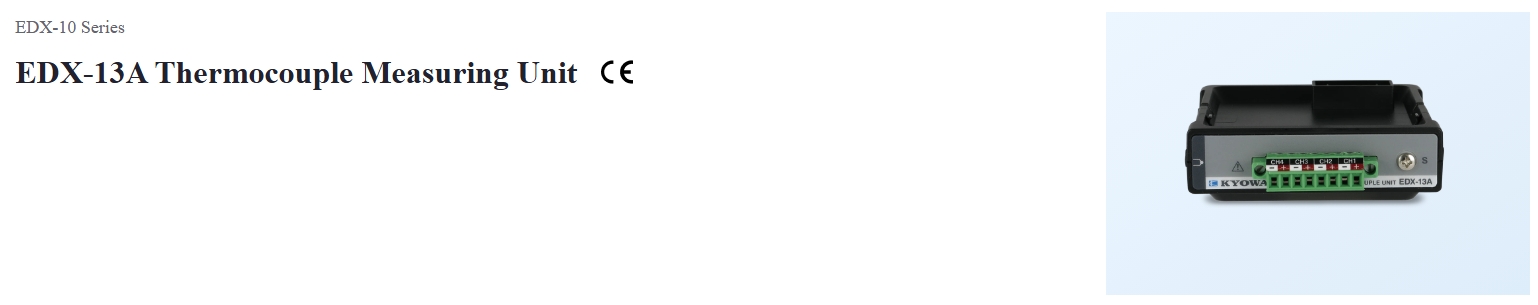

Specifications
Measuring Targets
Thermocouples
Channels
4
Input Connectors
Screw type terminal box
Applicable Thermocouples
K, T, J, N
(Resistance of thermocouple: 1 kΩ or less)
Range
K: -200.0 to 1370.0ºC
T: -200.0 to 400.0ºC
J: -200.0 to 1200.0ºC
N: -200.0 to 1300.0ºC
Resolution
0.1°C
Accuracy
[K]
−200.0 to below -100.0°C: ± (0.2％ of reading + 0.6ºC)
−100.0 to 1370.0°C: ± (0.1％ of reading + 0.4ºC)

[T]
−200.0 to below -100.0°C: ± (0.2％ of reading + 0.6ºC)
−100.0 to 400.0°C: ± (0.1％ of reading + 0.4ºC)

[J]
−200.0 to below -100.0°C: ± (0.2％ of reading + 0.6ºC)
−100.0 to 1200.0°C: ± (0.1％ of reading＋0.4ºC)

[N]
−200.0 to below -100.0°C: ± (0.2％ of reading + 0.6ºC)
−100.0 to 1300.0°C: ± (0.1％ of reading＋0.4ºC)

Note: The measurement accuracy does not include the accuracy of the internal reference junction compensator and thermocouples.
Accuracy of internal reference junction compensator
±1.0°C
〔Input terminal temperature at equilibrium〕
〔Ambient temperature: 25 ±10°C〕
Mount the EDX-13A on the bottom when using it with measuring units other than the EDX-13A.

±2.0°C
〔Input terminal temperature in equilibrium〕
For temperatures other than those in the ambient temperature and operating temperature described above
Check Functions
Burnout check
AD Converter
24 bits
Sampling System
Scanning
Inside Samping Frequencies
Approx. 0.5 Hz, approx. 2.0 Hz
Operating Temperature
0 to 40℃
Operating Humidity
20 to 90% (Non-condensing)
Input Connector
Screw type terminal box
Power Supply
5 VDC supplied by control unit
Current Consumption
120 mA or less (5 VDC)
Weight
Approx. 130 g
Dimensions
84.0 W × 26.6 H × 84.0 D mm
(Excluding protrusions)
Compliance
Directive 2014/30/EU (EMC)
Directive 2011/65/EU, (EU) 2015/863 (10 restricted substances) (RoHS)
Standard Accessories
Terminal box 1 piece
Screwdriver 1 piece
Dimensions

Specifications
Measuring Targets Strain-gage transducers, strain gages
*Bridge boxes or input adapters are required for strain measurement.
Channels 4
Measuring Range 10 k, 50 k ×10-6 strain (2 steps)
Compatible Bridge Resistance 120 Ω to 1 kΩ
Bridge Excitation 1 VDC
Gage Factor 2.00 fixed
Range Accuracy Within ±0.3%FS
Balance Adjustment Within ±1/2 F.S. of setting range
Nonlinearity Within ±0.1%FS
AD Converter 24 bits
Frequency Response DC to 2 kHz
LPF Cutoff frequencies : 100 Hz, 2 k Hz
Transfer characteristic : 2nd order Butterworth
Operating Temperature 0 to 40ºC
Operating Humidity 20 to 90% (Non-condensing)
Input Connectors D-sub 37-pin connector
Power Supply 5 VDC supplied by control unit
Current Consumption 140 mA or less
(120 Ω load with all channels connected, at power supply 5 VDC)
Weight Approx. 150 g
Dimensions 84.0 W × 26.6 H × 84.0 D mm
(Excluding protrusions)
Compliance Directive 2014/30/EU (EMC)
Directive 2011/65/EU, (EU) 2015/863 (10 restricted substances) (RoHS)
Standard Accessories
Strain input cable U-124 (30 cm)
Optional Accessories
Bridge box connection cable U-126 (50 cm)
Input connector set EDX10-DSUB
Input adapter UI-51A
One-touch type input adapter UI-52A
Bridge adapter for quarter bridge system UI-53B-120/350
Bridge adapter for quarter bridge system UI-54B-120/350
One-touch type input adapter UI-55A
Dimensions

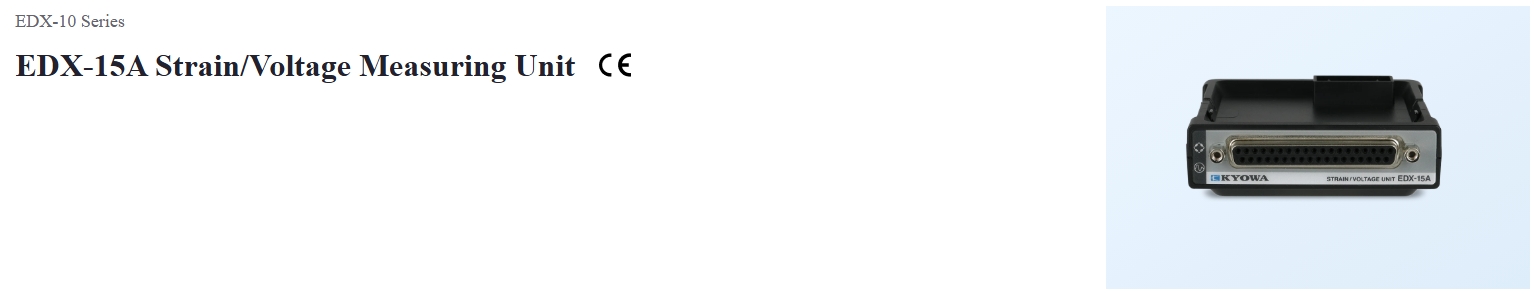

Specifications
Measuring Targets
Strain gage transducer and strain gage (*1)
Voltage (Unbalanced input)
Channels
4
Measuring Range
Strain measurement:10000, 50000 m/m (2 range)
Voltage measurement:10, 50 V (2 range)
Compatible Bridge Resistance
Strain measurement:120 to 1 kΩ
Voltage measurement:—
Excitation Voltage
Strain measurement:1 VDC
Voltage measurement:—
Gage Factor
Strain measurement:2.00 fixed
Voltage measurement:—
Range Accuracy
Within ±0.3%FS
Balance Adjustment
Within ±1/2 F.S. of setting range
Nonlinearity
Within ±0.1%FS
AD Converter
24 bits
Frequency Response
DC to 2 kHz
LPF
Cutoff frequencies : 100 Hz, 2 k Hz
Transfer characteristic : 2nd order Butterworth
Operating Temperature
0 to 40ºC
Operating Humidity
20 to 90% (Non-condensing)
Input Connectors
D-sub 37-pin connector
Power Supply
5 VDC supplied by control unit
Current Consumption
150 mA or less
(120 Ω load with all channels connected, at power supply 5 VDC)
Weight
Approx. 150 g
Dimensions
84.0 W × 26.6 H × 84.0 D mm
(Excluding protrusions)
Compliance
Directive 2014/30/EU (EMC)
Directive 2011/65/EU, (EU) 2015/863 (10 restricted substances) (RoHS)
(*1) When using the strain gage will require additional the bridge box or the input adaptor.
Standard Accessories
Strain input cable U-124 (30 cm)
Conversion adapter FV-1A x 4
Optional Accessories
Bridge box connection cable U-126 (50 cm)
Input connector set EDX10-DSUB
Input adapter UI-51A
One-touch type input adapter UI-52A
Bridge adapter for quarter bridge system UI-53B-120/350
Bridge adapter for quarter bridge system UI-54B-120/350
One-touch type input adapter UI-55A
BNC input cable U-125 (30 cm)
Dimensions
