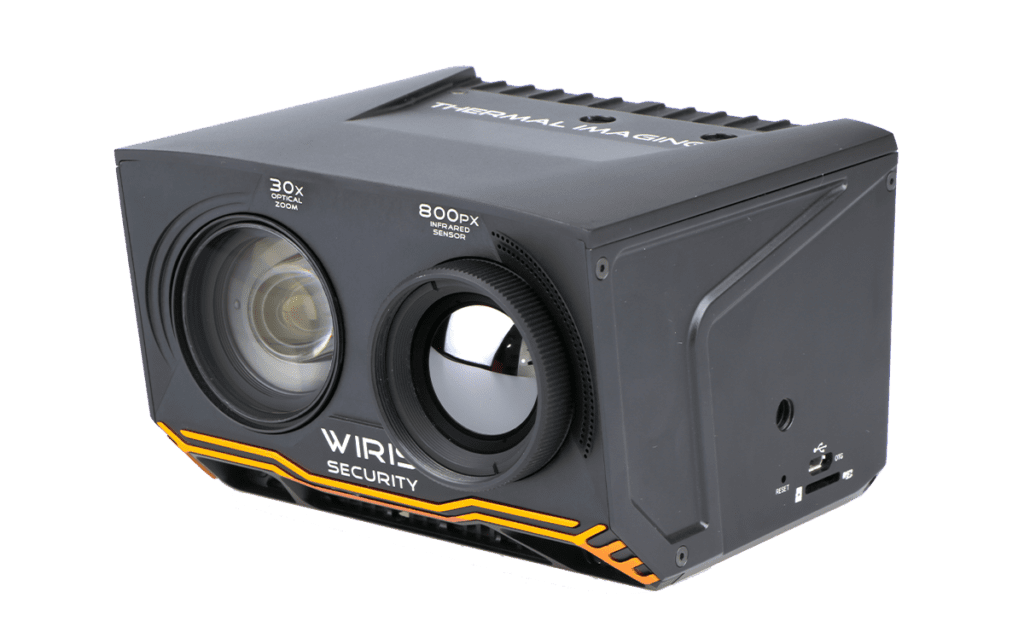

WIRIS Security

SECURITY THERMAL CAMERA

Presenting Workswell’s solution for security and search & rescue operations: The WIRIS Security. This thermal camera is designed for use with drones, or UAVs, and it has a critical role to play in life-and-death situations. In addition to helping teams search for missing persons, the WIRIS Security enhances building and perimeter surveillance, firefighting operations, field research, and wildlife surveys.

For more detailed information, please visit our separate product page.

Categories: , , ,
Contact Sales Spec Sheet

Description

800X600 RESOLUTION

The WIRIS Security’s thermal camera is built to enhance search and rescue operations. Its high-resolution imager boasts a native resolution of 800×600 px, and it comes with a wide assortment of lenses. The camera offers excellent temperature sensitivity, and is protected by a rugged mechanical case made of lightweight aluminum. Clocking in at 780 grams, the Workswell WIRIS Security is a compact 111x80x103 mm. The thermal camera’s spectral range is aligned with the industry standard for an LWIR camera: 7.5–13.5 μm.

30X OPTICAL ZOOM RGB CAMERA

In addition to its highly sensitive thermal camera, the WIRIS Security features a specialized visual band, or RBG, camera. This imager is designed to be highly sensitive during dusk and dawn, delivering a clear image even at a minimum light of 0.0008 lux. Since the focal length and field of vision are variable within the intervals of 129.0 mm – 4.3 mm, or 2.3° – 3.7°,  the camera delivers up to 30x optical ZOOM. What’s more, the WIRIS Security offers a wide range of functionalities, not limited to an automatic switch from day to night mode, fog impact compensation mode, and advanced image stabilisation.

HIGH THERMAL RESOLUTION

An absolutely unrivalled microbolometer – with a resolution of 800×600 px – positions the WIRIS Security as the clear market leader. No other drone-mounted thermal camera can match its thermal resolution. The WIRIS Security’s detection sensitivity comes in at 40mK, rendering it an indispensable aid to search and rescue operations. The camera’s 35 mm focal length lens offers a 21.2° x 16.2° field of vision, as well as Digital Detail Enhancement functionality for image quality improvement. Two image frequency options are available – 9 Hz and 25 Hz. Video output via the HDMI port is provided as well.

WIFI & SSD

RTSP video streaming, image, and command transfer through Wi-Fi are among the WIRIS’ other functionalities. These features are provided by the RJ 45 Ethernet port.

What’s more, the Workswell WIRIS Security camera is equipped with a built-in SSD disc with 512 GB or 256 GB memory.

THE WIRIS OS OPERATING SYSTEM

The WIRIS Security is equipped with our WIRIS OS operating system, which offers a range of functions that were specially designed for security and search operations. This platform enables the maximum utilization of both incorporated cameras. For example, WIRIS OS offers bispectral coaxial zoom delivering 12x digital zoom for the thermal camera, and up to 30x optical zoom for the RGB imager. In addition, artificial intelligence enhances the detection of persons within the image. All of the WIRIS OS’ features are available through the RC controller as the drone is flying.

WIRIS SECURITY VIDEOS









TECHNICAL INFORMATION & DOCUMENTS

WIRIS Security Key feature specification
High sensitivity Night vision modes in visual Full HD camera Advanced Noise Reduction Technology

  • filters noise from the image for clearer results in low-light conditions
  • the de-fog feature allows clearer viewing in foggy or misty scenes
  • when the feature is activated, the camera detects the haze level and automatically applies the required effects.

Auto IR-cut Filter Function

  • in low-light conditions, the camera automatically switches from Day to Night vision mode
  • the IR-cut filter function allows to boost sensitivity for clear pictures in darkness.

Wide-D Image Processing Technology

  • gives the ability to see clear, detailed images in high-contrast or backlit environments
Operating onboard system WIRIS OS for full real-time data streaming and control during the flight

  • operating system ensures the full access to all camera functions
  • easy camera control via S.Bus, CAN bus, MavLink, RJ-45 or Trigger
30x Optical Antivibration zoom Full HD 30x optical zoom camera with anti-vibration compensation
Thermal camera specification
IR camera resolution 800 x 600 pixels
Scene range -20 °C to +150 °C (-4 °F to +302 °F)
Temperature sensitivity Extra sensitivity of 0.04 °C (40 mK, 0.072 °F)
Frame rate 25 Hz or 9 Hz
Spectral range / detector 7.5 – 13.5 μm / Uncooled VOx microbolometer
Available lenses 35 mm (21.2° x 16.2°), visit FOV calculator
Digital zoom 1 – 12x continuous
10-pin digital port Interface S.BUS
CAN bus for DJI M600 and A3 controllers
MavLink
CANbus & UART
External GPS connectivity & External trigger
