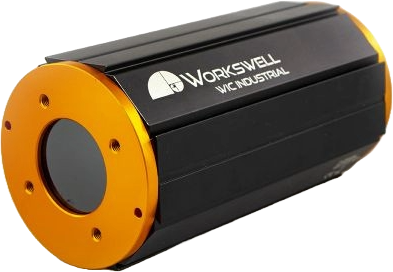

WORKSWELL WIC Industrial

WORKSWELL
WIC Industrial

THERMAL CAMERA WITH IP67

Workswell WIC Industrial is a thermal camera designed and manufactured for easy and user-friendly plug&play integration for all process control and quality control applications. Customers can choose from two types of camera resolution, ie. 640×512 or 336×256 px, also from several different lenses and can choose temperature range up to 1 500 °C. Internal electronics is protected by high IP66/IP67 rating enclosure and can be installed in harsh conditions from -50 °C to +200 °C. Also 30mK sensitivity is offered in standard.

Description

ONE THERMAL CAMERA FOR ALL OF YOUR NEEDS

Temperature measurement is the second most common measurement in industry today. WIC thermal cameras are already enabling contact-free temperature measurement in hundreds of different applications around the world.

FOR EXAMPLE

TECHNICAL INFORMATION & DOCUMENTS

Thermal and optical data
Resolution	640 x 512 pixels or 336 x 256 pixels
Framerate	60Hz, 30 Hz or <9 Hz available
Temperature range	-25 °C to +150 °C (-13 °F to 302 °F) -40 °C °C to +550 °C (-40 °F to 1 022 °F) optional temperature range +50 – 1 000 °C (122 °F to 1 832 °F) optional temperature range +400 – 1 500 °C (752 °F to 2 732 °F)
Accuracy	±2 % or ±2 °C (±3.6 °F) (in temperature range -10 °C to +150 °C (-13 °F to 302 °F) and 0 °C to +550°C (-40 °F to 1 022 °F))
Temperature sensitivity	≤0.03°C (30mK) @ 30°C
Spectral range	7.5 – 13.5 μm
Dynamic range	14bit radiometric temperature data, 14bit RAW data
Calibration	Radiometric and calibrated
Detector Type	Uncooled VOx microbolometer
Available Lenses	6.8mm, 9mm, 13mm, 19mm (more information in FOV calculator)
Focus	Manual continuous (Min. focus distance depends on lens)
Communication and Power Supply Interface
Ethernet version	Gigabit Ethernet, RJ-45 connector
Input Supply Voltage	Power over Ethernet 48V type
Power Dissipation	< 1.3 W (max. 3 W during NUC calibration time)
