Series Super Phosphor Oscilloscopes

  • Key Features

    • Supports multi-language display and embedded help
    • Screensaver from 1 minute to 5 hours
    • Digital filter and waveform recorder function
    • Shortcut storage function key
    • 7-inch TFT-LCD display with 800 * 480 resolution

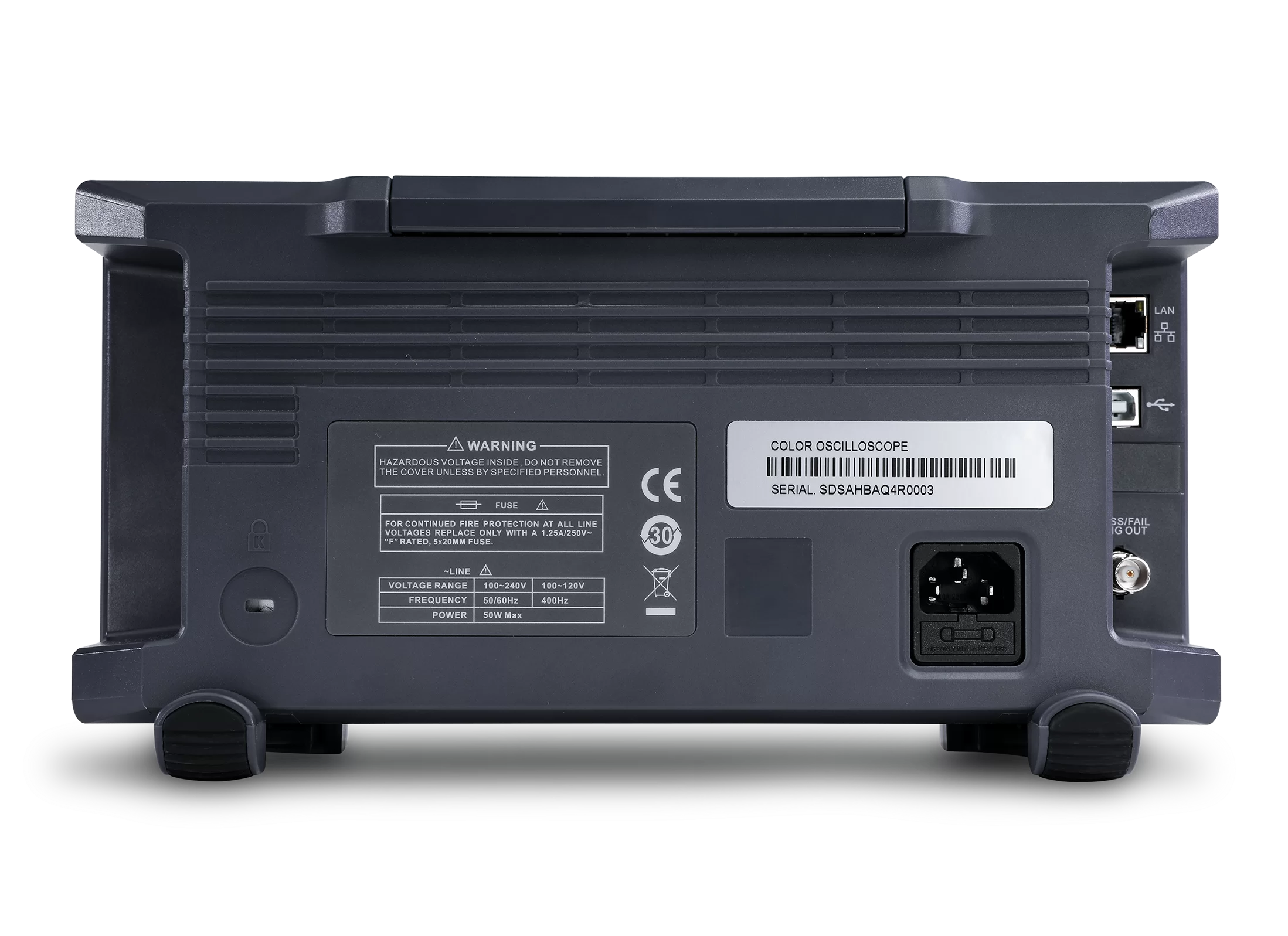

    • Multiple interfaces: USB Host, USB Device (USBTMC), LAN (VXI-11), Pass / Fail


Product Overview

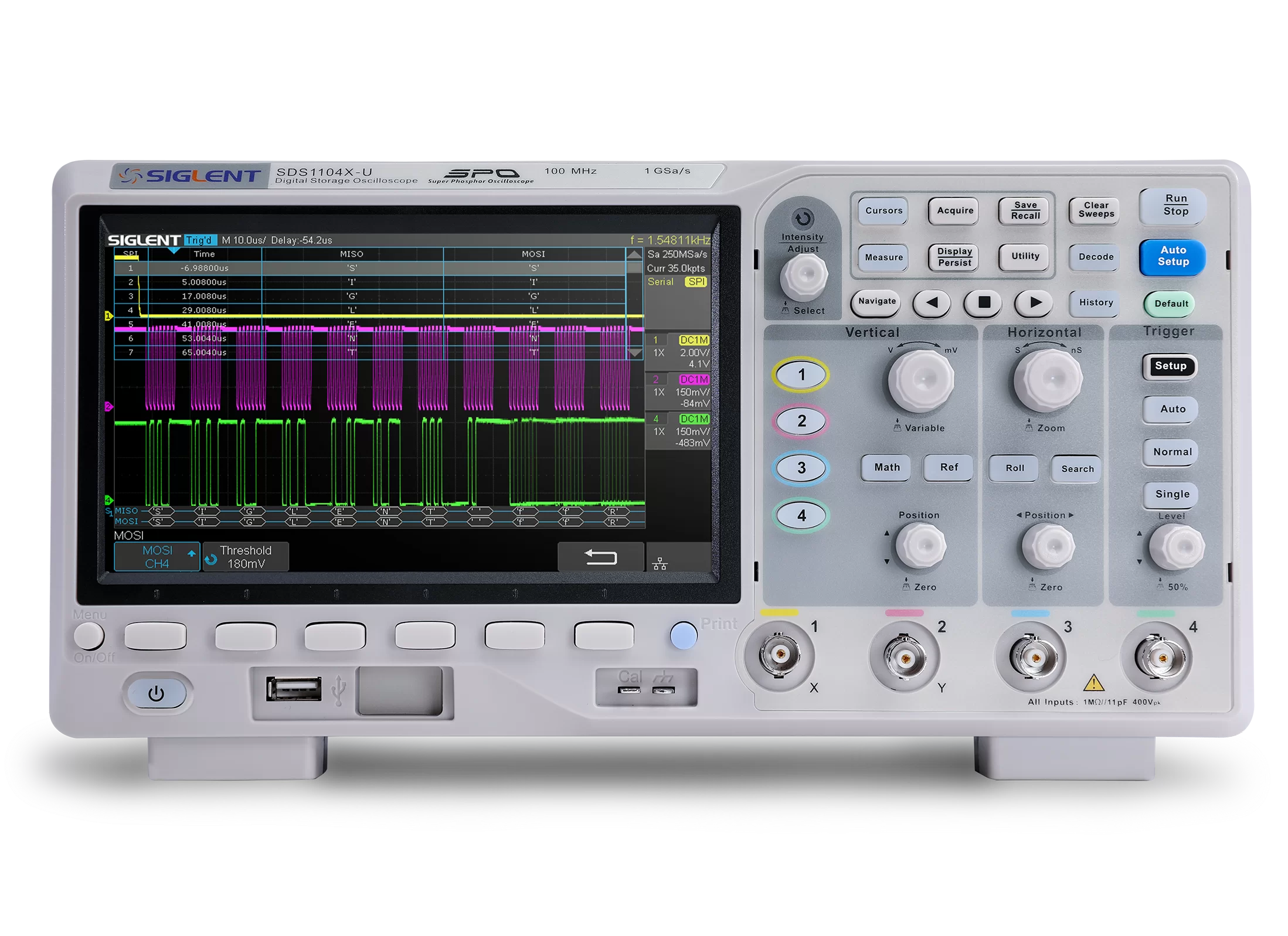

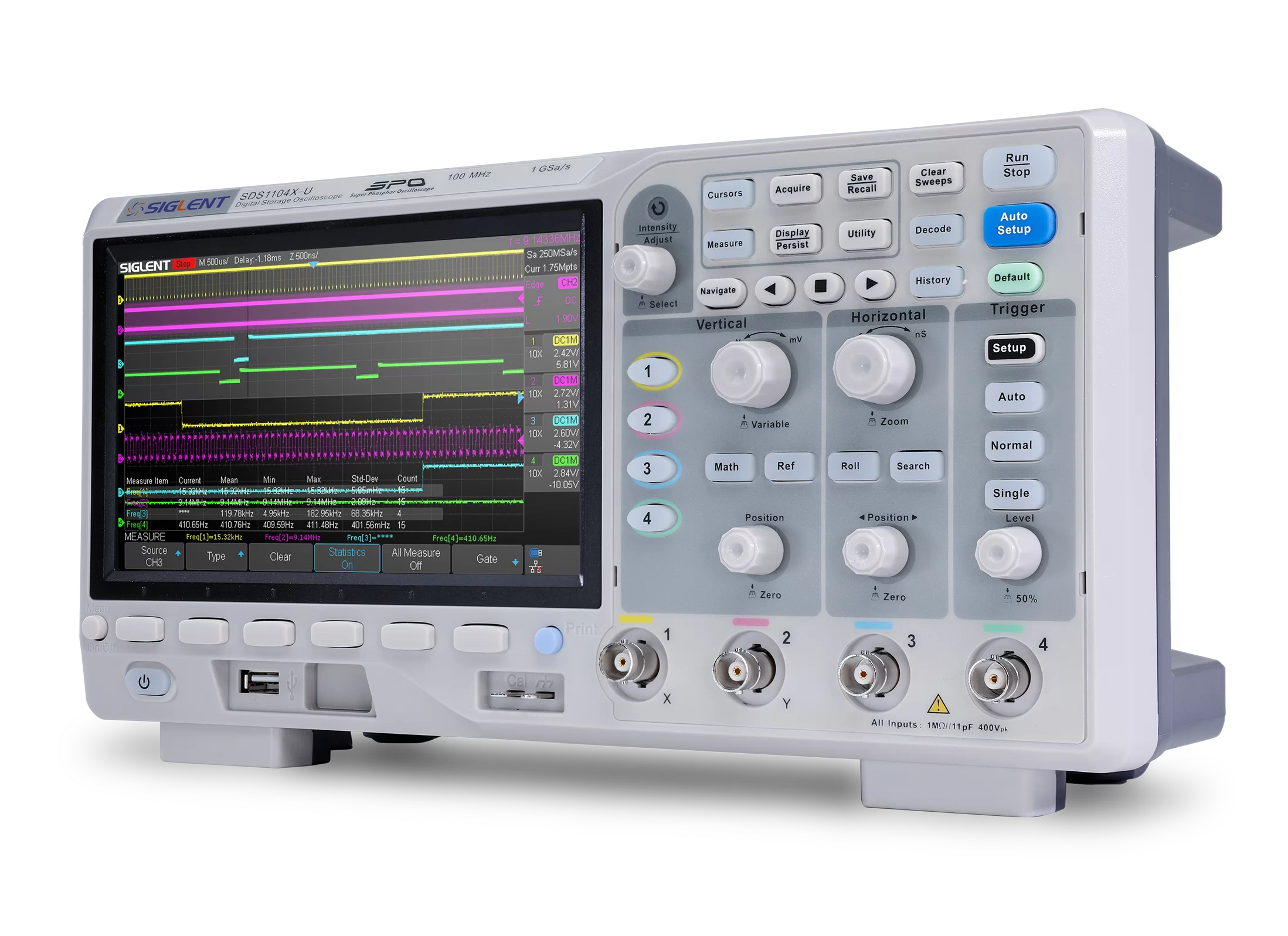

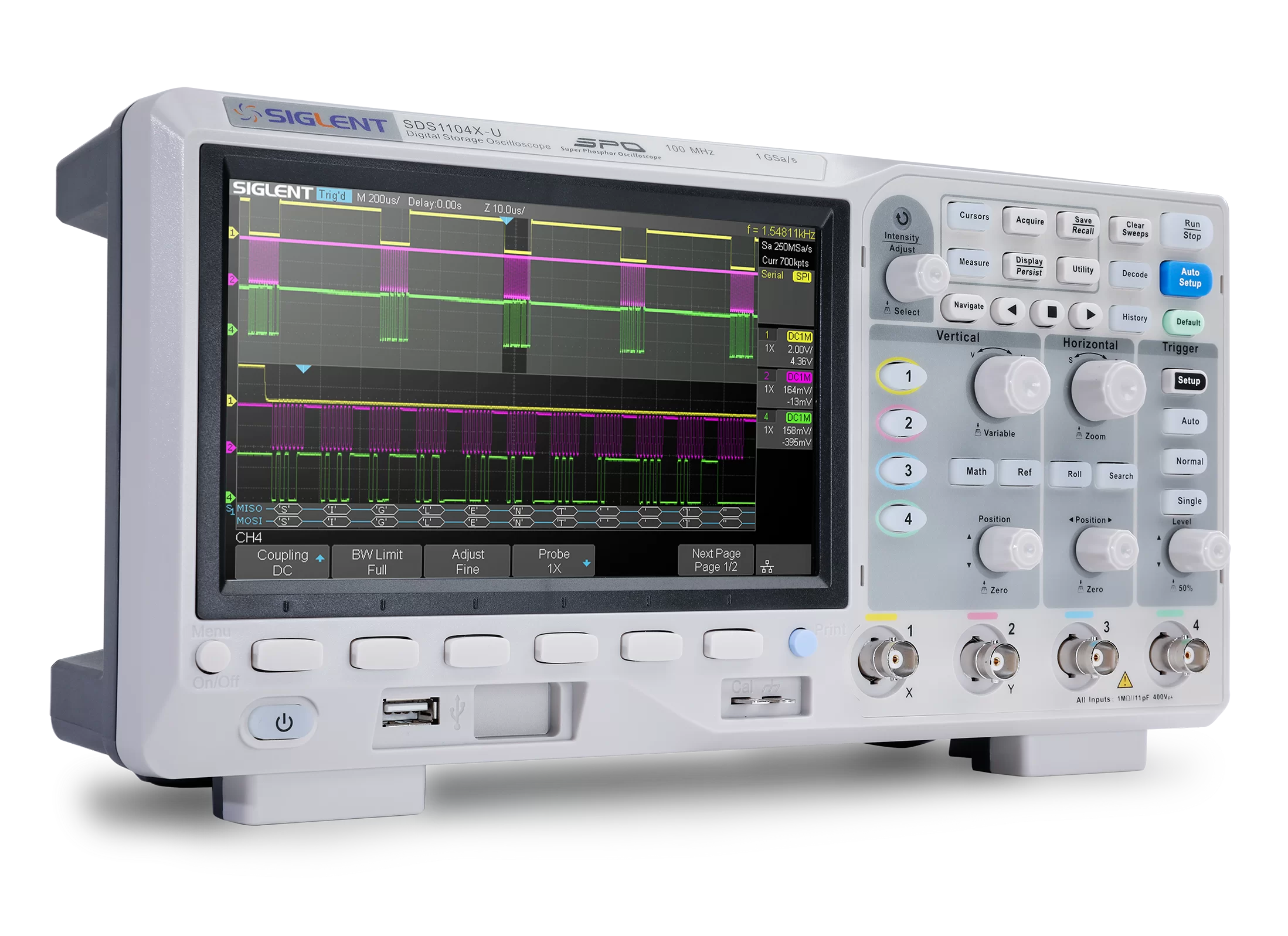

SIGLENT’s SDS1000X-U Series Super Phosphor Oscilloscopes is available in one bandwidth, 100 MHz. It has a maximum sample rate of 1 GSa/s and a maximum record length of 14 Mpts. For ease of use, the most commonly used functions can be accessed with its user-friendly front panel design.

The SDS1000X-U series employs SPO (Super Phosphor Oscilloscope) technology that provides excellent signal fidelity and performance. It comes with an innovative digital trigger system with high sensitivity and low jitter, and a waveform capture rate of 400,000 frames/sec (sequence mode). The SDS1000X U also employs a 256 level intensity grading display function and a color temperature display mode not found in other models in this class.

Another powerful addition is the new 128 k point FFT math function that gives the SDS1000X-U very high-frequency resolution when observing signal spectra. SDS1000X-U also supports searching and navigating. The features and performance of SIGLENT’s new SDS1000X-U cannot be matched anywhere else in this price class.

Bandwidth Channels Real time
sampling rate
Capture rate Memory depth Price
SDS1104X-U 100 MHz 4 1 GSa/s 4 00,000 wfm/s 14 Mpts $399 USD
