SIGLENT
SDG7000A Series
Pulse/Arbitrary Waveform Generator

  • Key Features

    • Dual-channel differential/single-ended output, 16-bit LVDS/LVTTL digital bus outputs (optional)
    • High-performance sampling system with 5 GSa/s sample rate and 14 -bit vertical resolution
    • 1 GHz maximum bandwidth
    • Generates arbitrary waveform with sample rates of 0.01 Sa/s ~ 2.5 GSa/s
    • Memory depth of 512 Mpts
    • Segmented editing /playback functions

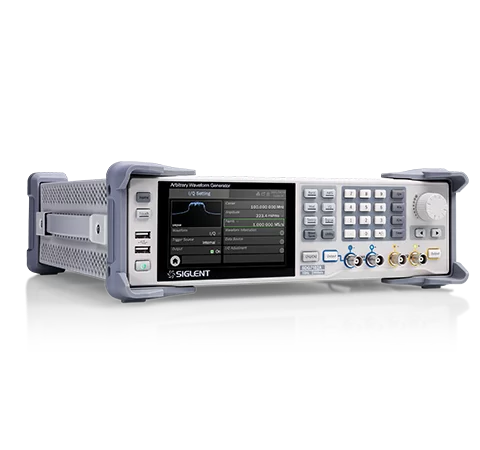

    • Generates vector signals with up to 500 MS/s symbol rate

Description

Product Overview

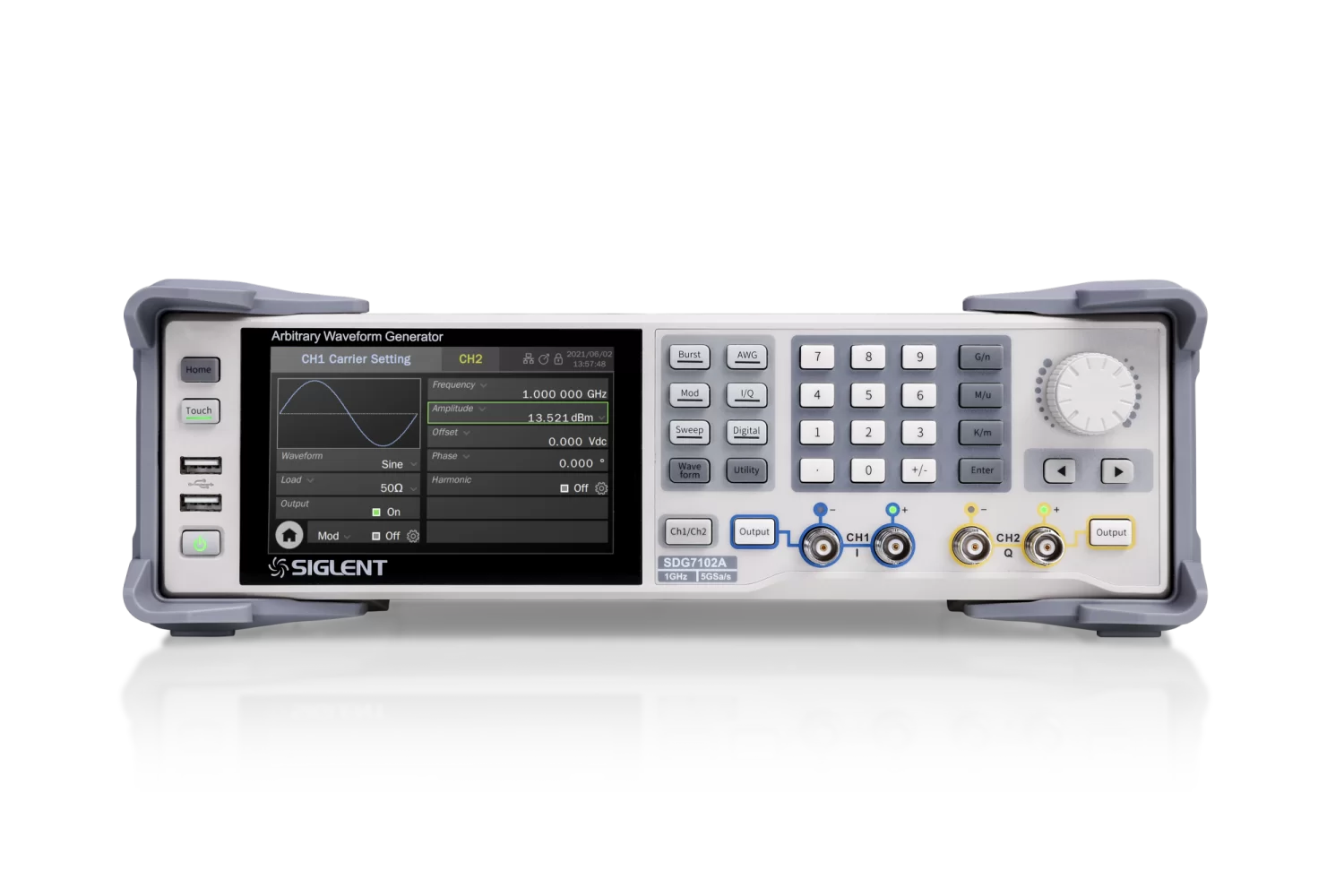

SIGLENT’s SDG7000A Arbitrary Waveform Generators feature up to 1 GHz bandwidth, a maximum sample rate of 5 GSa/s, and 14-bit vertical resolution. It can generate arbitrary waveforms point by point with a maximum 2.5 GSa/s sample rate and vector signals with a maximum of 500 MSa/s. It also has the ability to generate a variety of signals such as continuous wave, Pulse, Noise, PRBS patterns, and a 16-bit digital bus. The SDG7000A supports the generation of complex signals such as modulation, sweeping, bursting, and dual-channel copying/coupling/tracking and superposition. The outputs are user selectable for differential or single-ended connections and support a maximum output range of ± 24 V. The SDG7000A waveform generator can ensure a large amplitude under high-frequency which eliminates an external power amplifier in some applications and addresses a wider range of requirements.

Key Features

  • Generates low jitter pulses with 1 ns minimum pulse width and 500 ps minimum edge
  • Up to 1 GHz bandwidth and White Gaussian Noise with adjustable bandwidth
  • PRBS up to 312.5 Mbps
  • LVTTL and LVDS Digital bus options for digital signal sourcing  up to 1 Gbps
  • Includes popular analog/digital modulation types, sweeping and bursting functions
  • Enhanced dual-channel operation functions: inter-channel tracking, coupling, and copying
  • Dual-channel superposition function
  • Mutual modulation between channels
  • The 24 Vpp analog output is superimposed with ± 12 Vdc offset to provide a maximum output range of ± 24 V (48 V)
  • High precision Frequency Counter
  • 5-inch capacitive touch screen with a resolution of 800×480
  • External mouse and keyboard operation
  • WebServer to control the instruments remotely without downloading software
  • Includes 10 MHz In, 10 MHz Out, Trigger In/Out, and Marker sync connections
  • Full SCPI command manual for easy integration into test systems
