SIGLENT

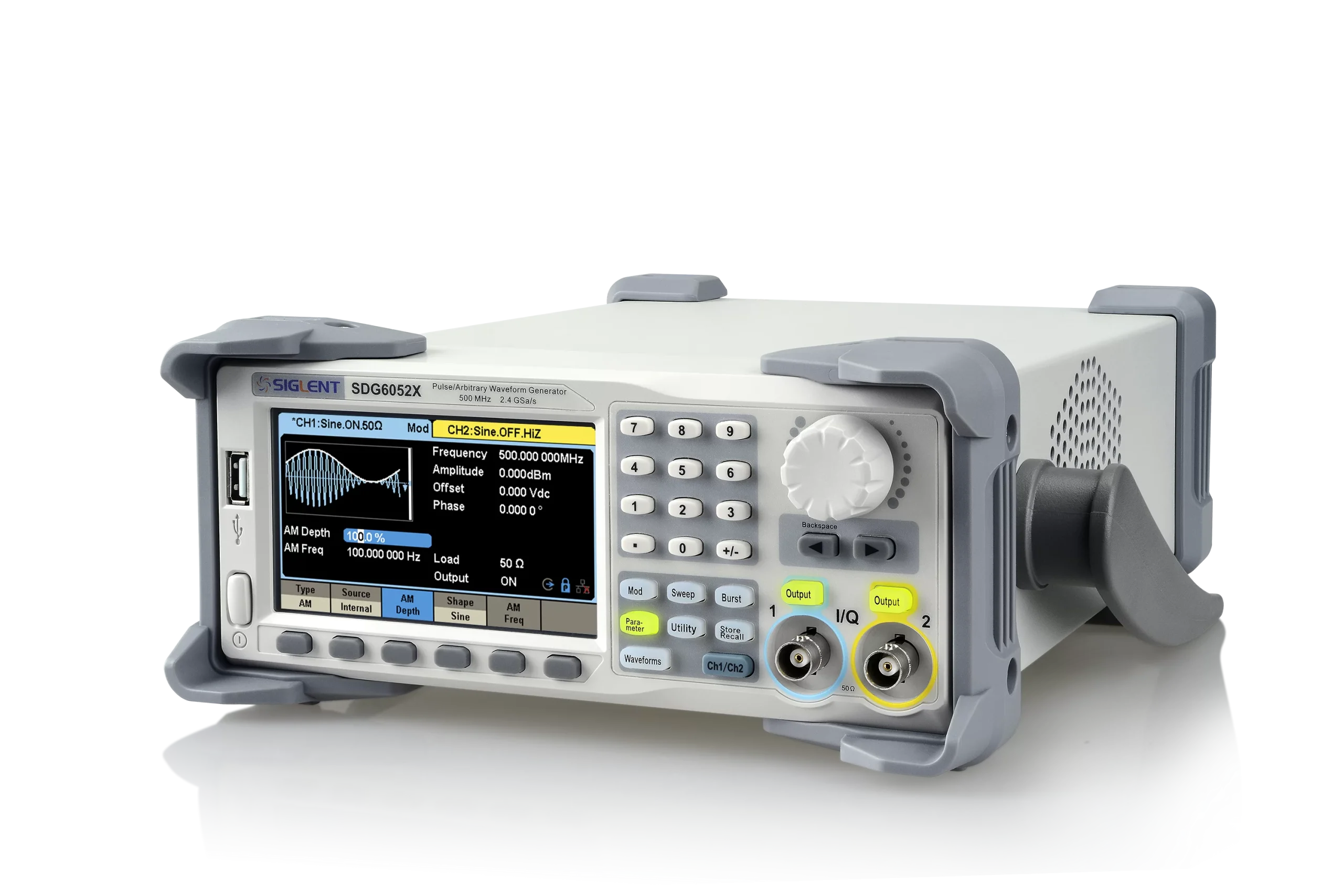

SDG6000X Series
Pulse/Arbitrary Waveform Generator

  • Dual-Channel, 500 MHz maximum bandwidth, 20 Vpp maximum output amplitude, high fidelity output with 80 dB dynamic range
  • High-performance sampling system with 2.4 GSa/s sampling rate and 16-bit vertical resolution
  • EasyPulse circuit lowers jitter and increases pulsed performance
  • Create baseband and IF IQ modulated waveforms (optional)
Categories: ,
Contact Sales Spec Sheet

Description

Product Overview

SIGLENT’s SDG6000X is a series of dual-channel Pulse/ Arbitrary Waveform Generators that feature up to 500 MHz bandwidth, a maximum sample rate of 2.4 GSa/s and 16-bit vertical resolution. They also include proprietary TrueArb & EasyPulse technology that help to solve the weaknesses inherent in traditional DDS generators when generating arbitrary, square and pulse waveforms. In addition, the SDG6000X is a multi-function device which can generate Noise, IQ signals and PRBS patterns. These features enable the SDG6000X to provide a variety of high fidelity and low jitter signals, meeting the growing requirements of complex and intensive applications.

Models Available:

SDG2122X

SDG2082X

SDG2042X
