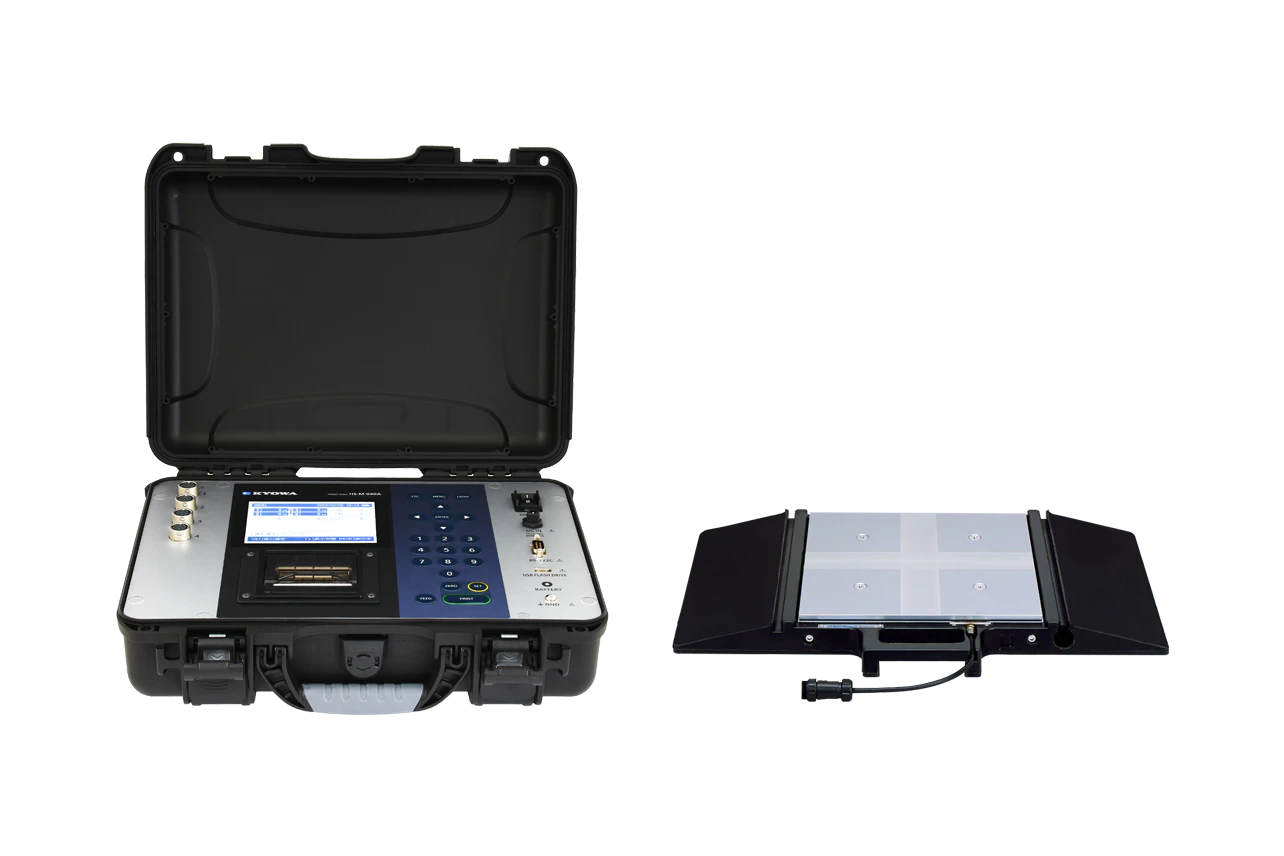

Description
Models
Model
|
Rated Capacity
|
Maximum Wheel Load
|
Detection units and connection cables.
|
HS-A-1001-4
|
4000 kg
|
1000 kg
|
4
|
HS-A-1002-4
|
8000 kg
|
2000 kg
|
HS-A-1003-4
|
12000 kg
|
3000 kg
|
HS-A-1005-4
|
20000 kg
|
5000 kg
|
- Types with 2, 3, 6 or 8 detectors can also be manufactured.
- The display language of the indicator is Japanese and English.

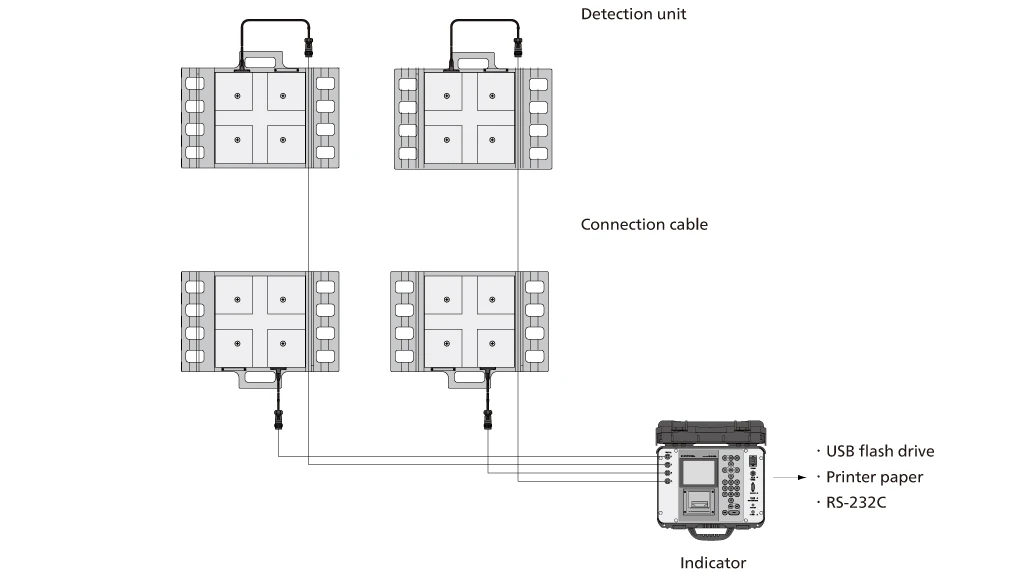

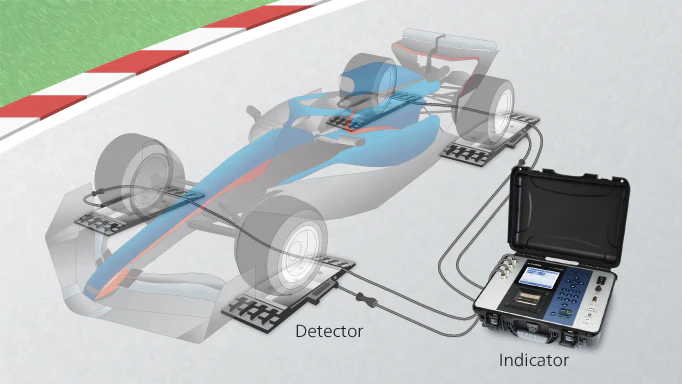

System Configuration Example (Wheel Load Measurement, Four Detection Units)
Features
Features of Detector
●Unique aluminum integrated structure for minimal eccentric error
●Wide platform for easy measurement with Low-profile tire
●Rubber frame for easy landing
●Cable integrated to protect connector against damage due to wheel-Removal
●Diaphragm on both sides improves drip and moisture proofness
Features of Indicator
●Contrast-adjustable LCD screen imaging tire positions
●Operates on AC 100V to 240V, no switchover required. Operation on DC 12V possible with optional battery kit
●4-channel HM04E8 provides 3 display modes of “individual wheel load,” “axle load” and “%.”
8-channel HM08E9 provides 2 display modes of “wheel load” and “axle load” selectable with the cursor key.
●Car No. is input and printed with the built-in printer.
●RS-232C interface
●Functions, such as a “indicated-value stable mark” and a “acceleration-due-to-gravity compensation function”, are substantial.
System Components
Models
|
Indicator
|
Detection unit
|
Connection Cable
|
Number of detection unit and Number of connection cable
|

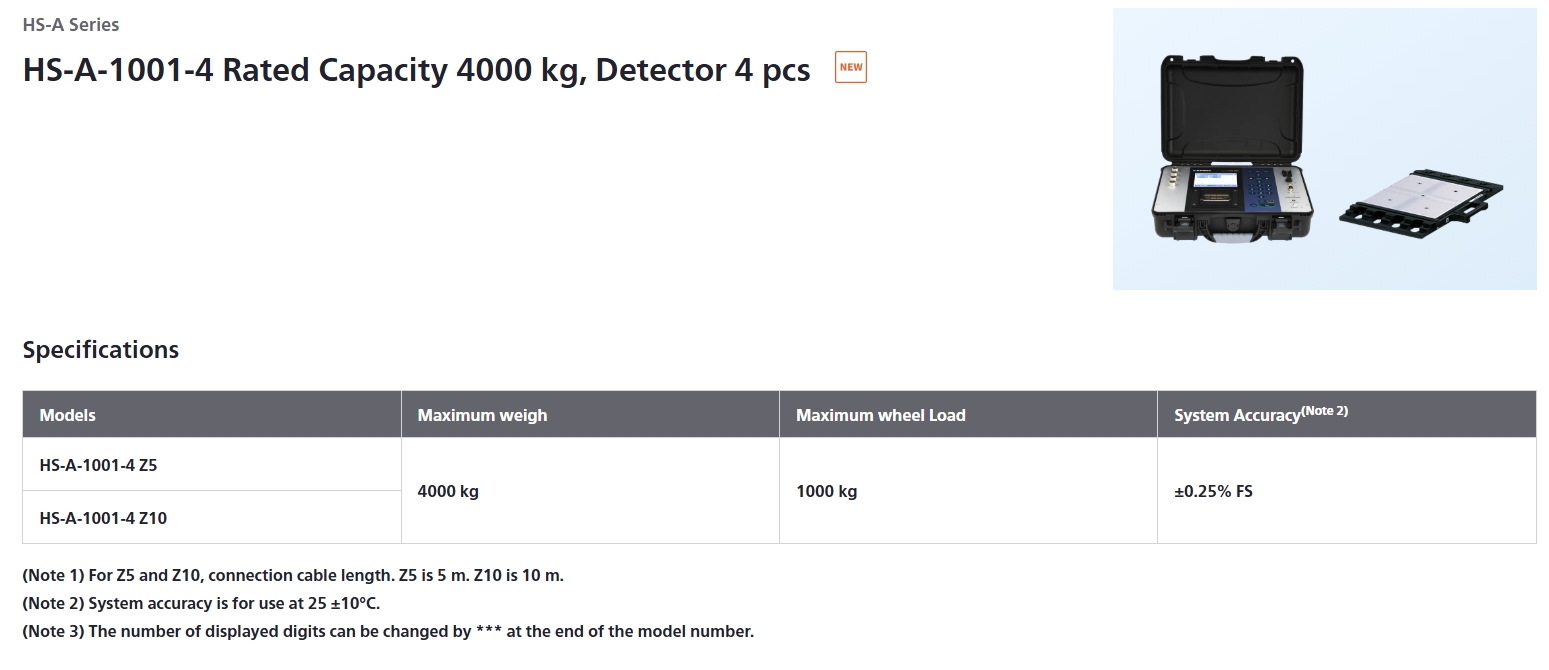

HS-A-1001-4 Z5/Z10
|
HS-M-040A
|
HS1001-N
|
Z5: HS-TT-01 Z5
or
Z10: HS-TT-01 Z10
|
4
|
Standard Accessories
- AC adapter (Included with HS-M-040A)
- For detection unit soft case
- Printer paper (Included with HS-M-040A)
- Cable bag

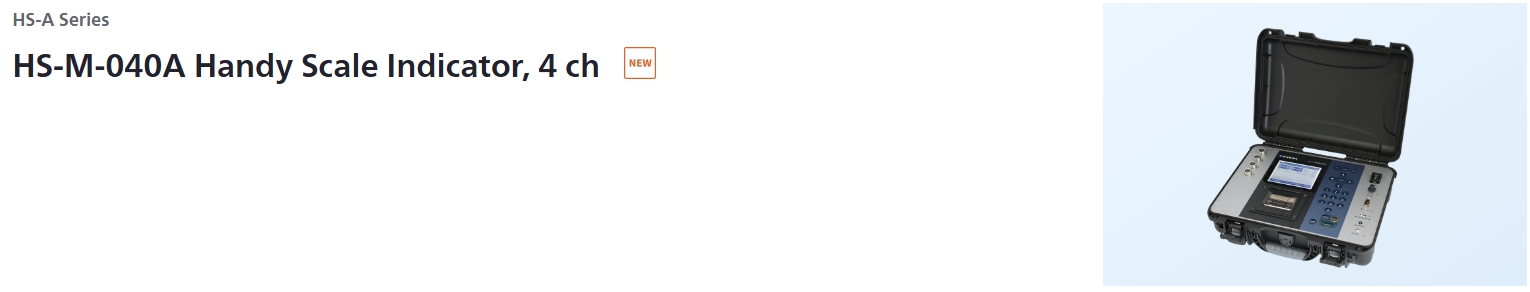

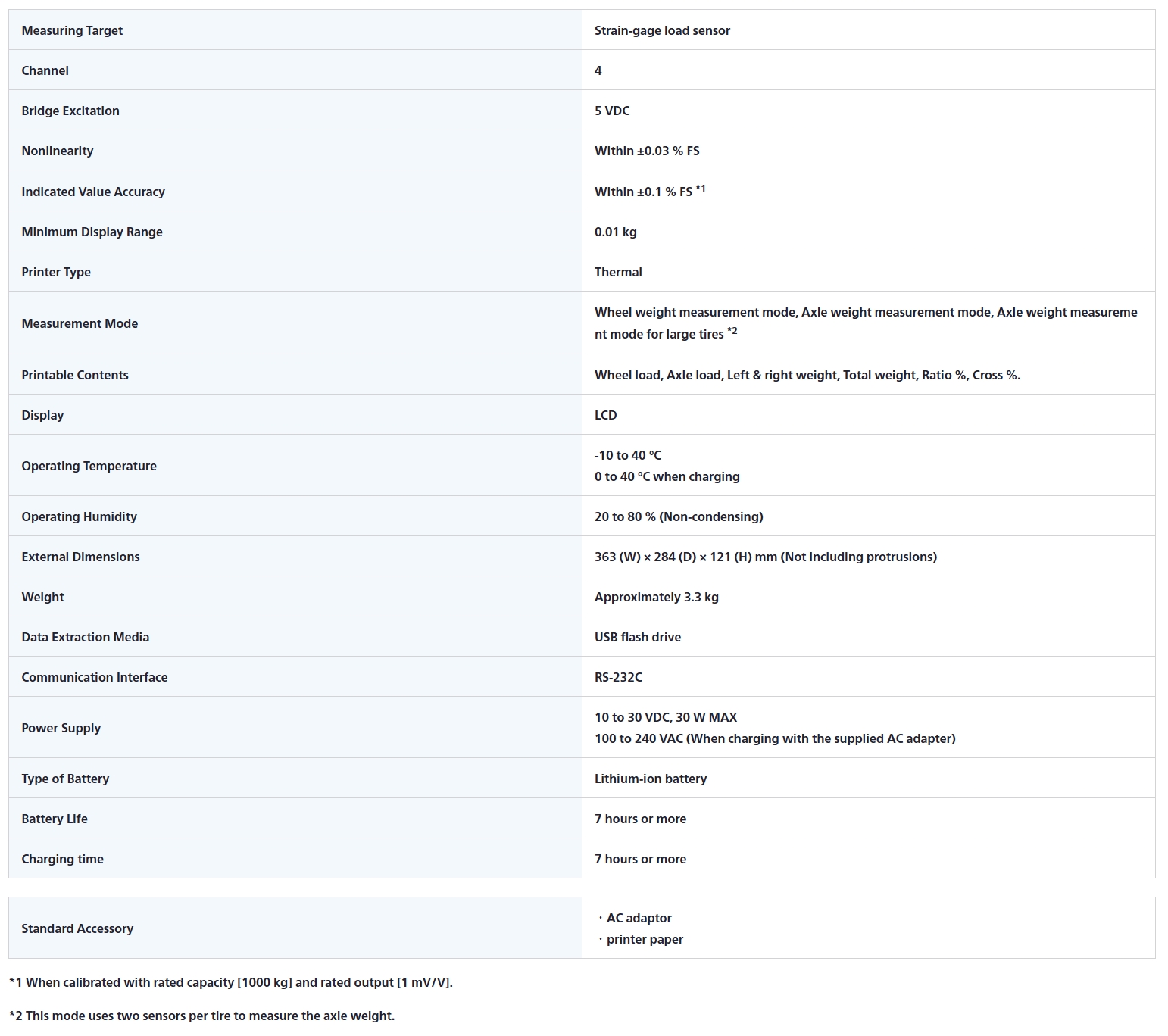

Indicator Specification
The specification of indicator is as below.
Indication Value
|
Integer (Standard shipping status)
(Note)
Inspection can also be performed and shipped with one decimal place.
|
Indication Content
|
・Wheel weight, Axle Weight, Left-right, weight and Total weght
Wheel weght, Axle weight and Left-right weight can be switched between [kg] and [%].
・Cross % display
Cross % display means the ratio of the weight of the right front wheel + left rear wheel and the left front wheel + right rear wheel to the total weight.
|
Print Paper
|
Thermal roll paper (Width: 58 mm, Diameter: 38 mm, Length: 19 m)
Model: TP-S245L-1
|
Supply Voltage
|
10 to 30 V DC, 30 W MAX
100 to 240 V AC (When using accessory AC adapter for charging.)
|
Operating Temperature
|
Indicator: -10 to 40°C (However, charging is 0 to 40℃)
Detection unit: -10 to 60°C
(Note)
Use in a not condensing environment. Avoid sudden temperature changes when storing and measuring.
|
Installation Location
|
The maximum display error is 1% because the acceleration of gravity differs depending on the location. Refer to the instruction manual and enter the gravitational acceleration at the location where the product will be used. If you know the gravitational acceleration of the location where the product will be used in advance, specify it when ordering.
|
Precautions
|
・Measure on a level paved surface without any unevenness on the installation surface. Do not insert objects between the installation surface and the detection unit. Doing so may adversely affect the measurement accuracy.
Check the installation surface carefully before use.
・If there is vibration during measurement, the measurement value may not be stable.
・The detection unit is drip-proof. Submersion in a puddle, exposure to water such as in rainy or snowy environments, or exposure to high-pressure water flow or spray from high – pressure washing may cause malfunction.
・The indicator has no protection class.
Submersion in a puddle, exposure to water such as rain or snow, exposure to high – pressure water flow or spray such as high – pressure washing, or use in the hot sun or direct sunlight exceeding the operating temperature range may cause malfunction.
|
Specifications of Detector
Performance
Rated Capacity
|
1000 kg
|
Nonlinearity
|
Within ±0.1％ RO
|
Hysteresis
|
Within ±0.1％ RO
|
Repeatability
|
0.1％ RO or less
|
Rated Output
|
Approx. 1.0 mV/V
|
Environmental Characteristics
Safe Temperature
|
-20 to 70°C (Non condensing.)
|
Compensated Temperature
|
-10 to 60°C (Non condensing.)
|
Temperature Effect on Zero
|
Within ±0.01% RO/°C
|
Temperature Effect on Output
|
Within ±0.01% /°C
|
Electrical Characteristics
Safe Excitation
|
20 V DC
|
Recommended Excitation
|
1 to 10 V DC
|
Input Resistance
|
395 ±5 Ω
|
Output Resistance
|
350 ±5 Ω
|
Cable
|
4-conductor (0.3 mm2) chloroprene shielded cable, 6 mm diameter by Approx. 20 cm long, terminated with a connector plug NJW-207-AdF6
(Shield wire is connected to the case.)
|
Mechanical Properties
Safe Overloads
|
120％
|
Weight
|
Approx. 8 kg (Including cable)
|
Degree of Protection
|
IP63 (JIS C 0920/IEC 60529)
[Note] IP63 is not permanent. Waterproof performance could be decreased depending on the usage environment.
|
Dimensions
System Components
Models
|
Indicator
|
Detection unit
|
Connection Cable
|
Number of detection unit and Number of connection cable
|

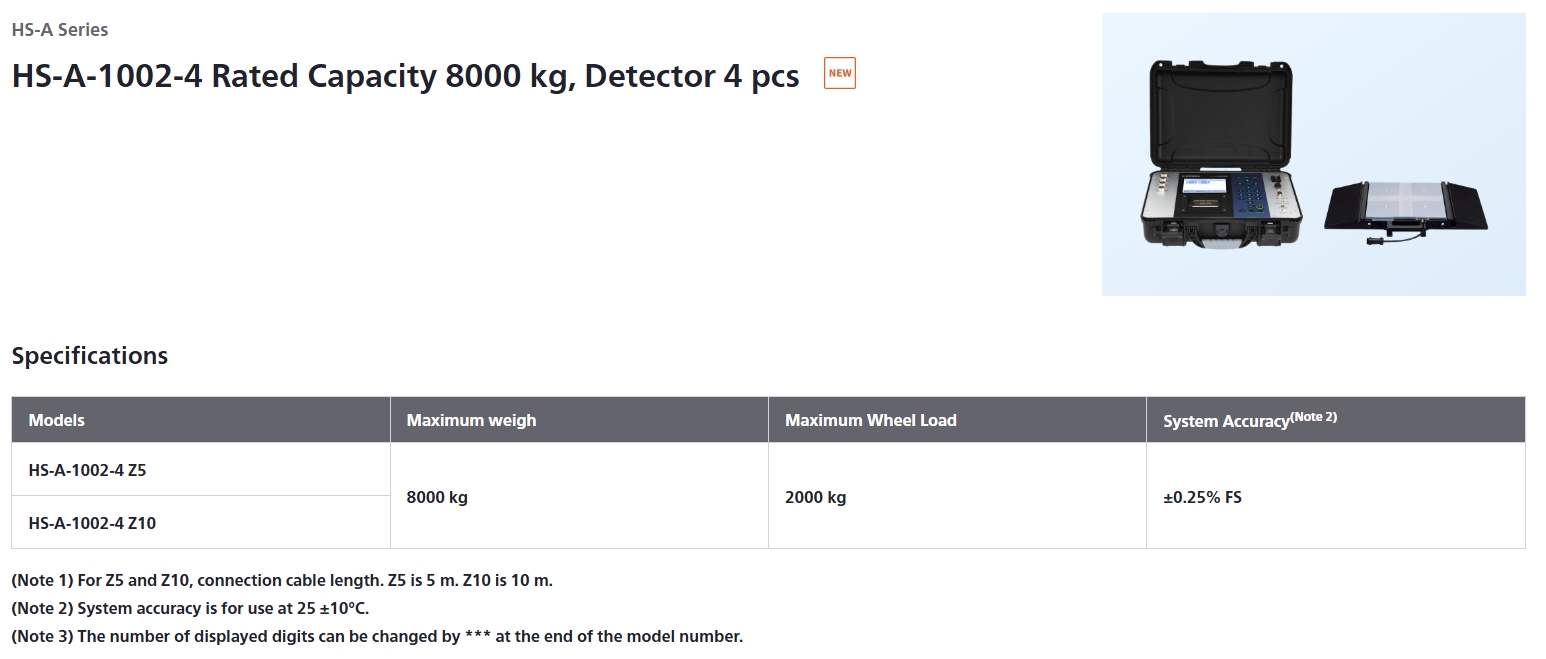

HS-A-1002-4 Z5/Z10
|
HS-M-040A
|
HS1002-NA
|
Z5: HS-TT-01 Z5
or
Z10: HS-TT-01 Z10
|
4
|
Standard Accessories
- AC adapter (Included with HS-M-040A)
- For detection unit soft case
- Printer paper (Included with HS-M-040A)
- Cable bag
Indicator Specification
The specification of indicator is as below.
Indication Value
|
Integer (Standard shipping status)
(Note)
Inspection can also be performed and shipped with one decimal place.
|
Indication Content
|
・Wheel weight, Axle Weight, Left-right, weight and Total weght
Wheel weght, Axle weight and Left-right weight can be switched between [kg] and [%].
・Cross % display
Cross % display means the ratio of the weight of the right front wheel + left rear wheel and the left front wheel + right rear wheel to the total weight.
|
Print Paper
|
Thermal roll paper (Width: 58 mm, Diameter: 38 mm, Length: 19 m)
Model: TP-S245L-1
|
Supply Voltage
|
10 to 30 V DC, 30 W MAX
100 to 240 V AC (When using accessory AC adapter for charging.)
|
Operating Temperature
|
Indicator: -10 to 40°C (However, charging is 0 to 40℃)
Detection unit: -10 to 60°C
(Note)
Use in a not condensing environment. Avoid sudden temperature changes when storing and measuring.
|
Installation Location
|
The maximum display error is 1% because the acceleration of gravity differs depending on the location. Refer to the instruction manual and enter the gravitational acceleration at the location where the product will be used. If you know the gravitational acceleration of the location where the product will be used in advance, specify it when ordering.
|
Precautions
|
・Measure on a level paved surface without any unevenness on the installation surface. Do not insert objects between the installation surface and the detection unit. Doing so may adversely affect the measurement accuracy.
Check the installation surface carefully before use.
・If there is vibration during measurement, the measurement value may not be stable.
・The detection unit is drip-proof. Submersion in a puddle, exposure to water such as in rainy or snowy environments, or exposure to high-pressure water flow or spray from high – pressure washing may cause malfunction.
・The indicator has no protection class.
Submersion in a puddle, exposure to water such as rain or snow, exposure to high – pressure water flow or spray such as high – pressure washing, or use in the hot sun or direct sunlight exceeding the operating temperature range may cause malfunction.
|
Specifications of Detector
Performance
Rated Capacity
|
2000 kg
|
Nonlinearity
|
Within ±0.1％ RO
|
Hysteresis
|
Within ±0.1％ RO
|
Repeatability
|
0.1％ RO or less
|
Rated Output
|
Approx. 0.7 mV/V
|
Environmental Characteristics
Safe Temperature
|
-20 to 70°C (Non condensing.)
|
Compensated Temperature
|
-10 to 60°C (Non condensing.)
|
Temperature Effect on Zero
|
Within ±0.01% RO/°C
|
Temperature Effect on Output
|
Within ±0.01% /°C
|
Electrical Characteristics
Safe Excitation
|
20 V DC
|
Recommended Excitation
|
1 to 10 V DC
|
Input Resistance
|
395 ±5 Ω
|
Output Resistance
|
350 ±5 Ω
|
Cable
|
4-conductor (0.3 mm2) chloroprene shielded cable, 6 mm diameter by Approx. 20 cm long, terminated with a connector plug NJW-207-AdF6
(Shield wire is connected to the case.)
|
Mechanical Properties
Safe Overloads
|
120％
|
Weight
|
Approx. 11 kg (Including cable)
|
Degree of Protection
|
IP63 (JIS C 0920/IEC 60529)
[Note] IP63 is not permanent. Waterproof performance could be decreased depending on the usage environment.
|
System Components
Models
|
Indicator
|
Detection unit
|
Connection Cable
|
Number of detection unit and Number of connection cable
|

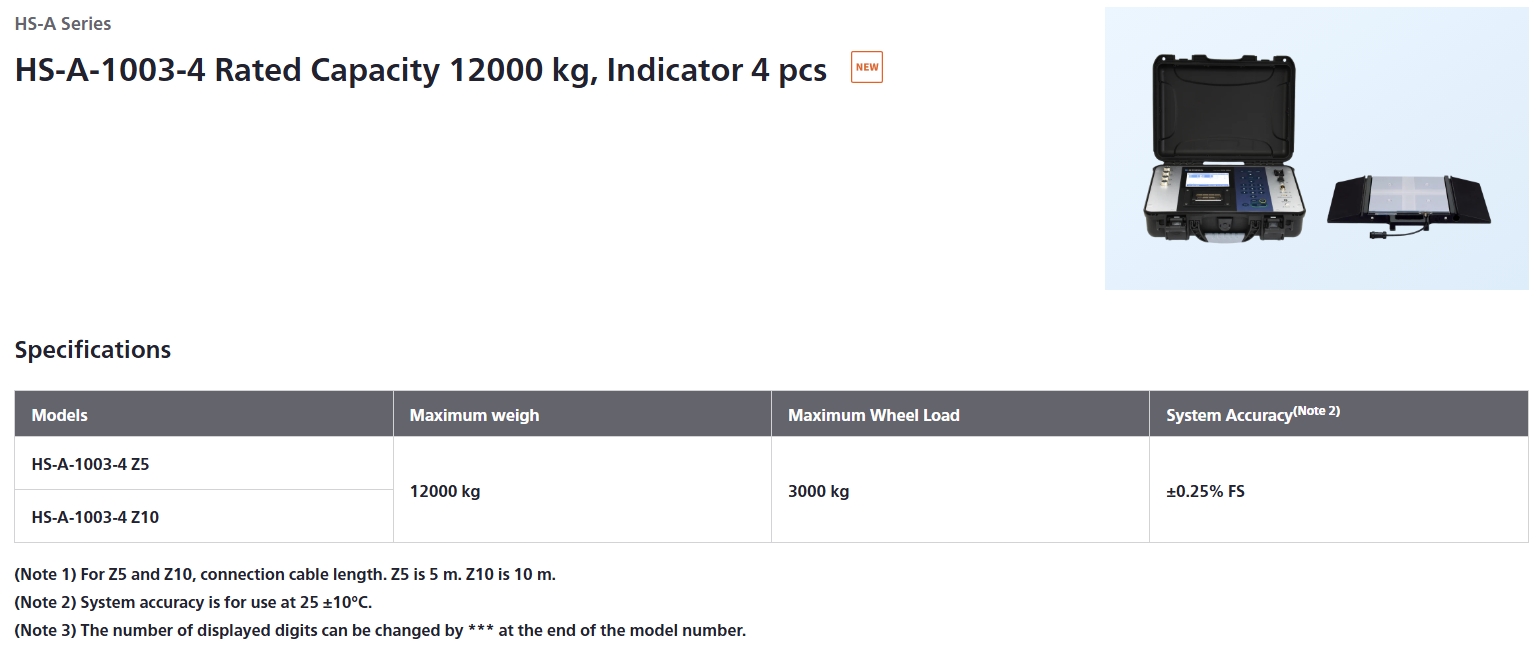

HS-A-1003-4 Z5/Z10
|
HS-M-040A
|
HS1003-NA
|
Z5: HS-TT-01 Z5
or
Z10: HS-TT-01 Z10
|
4
|
Standard Accessories
- AC adapter (Included with HS-M-040A)
- For detection unit soft case
- Printer paper (Included with HS-M-040A)
- Cable bag
Indicator Specification
The specification of indicator is as below.
Indication Value
|
Integer (Standard shipping status)
(Note)
Inspection can also be performed and shipped with one decimal place.
|
Indication Content
|
・Wheel weight, Axle Weight, Left-right, weight and Total weght
Wheel weght, Axle weight and Left-right weight can be switched between [kg] and [%].
・Cross % display
Cross % display means the ratio of the weight of the right front wheel + left rear wheel and the left front wheel + right rear wheel to the total weight.
|
Print Paper
|
Thermal roll paper (Width: 58 mm, Diameter: 38 mm, Length: 19 m)
Model: TP-S245L-1
|
Supply Voltage
|
10 to 30 V DC, 30 W MAX
100 to 240 V AC (When using accessory AC adapter for charging.)
|
Operating Temperature
|
Indicator: -10 to 40°C (However, charging is 0 to 40℃)
Detection unit: -10 to 60°C
(Note)
Use in a not condensing environment. Avoid sudden temperature changes when storing and measuring.
|
Installation Location
|
The maximum display error is 1% because the acceleration of gravity differs depending on the location. Refer to the instruction manual and enter the gravitational acceleration at the location where the product will be used. If you know the gravitational acceleration of the location where the product will be used in advance, specify it when ordering.
|
Precautions
|
・Measure on a level paved surface without any unevenness on the installation surface. Do not insert objects between the installation surface and the detection unit. Doing so may adversely affect the measurement accuracy.
Check the installation surface carefully before use.
・If there is vibration during measurement, the measurement value may not be stable.
・The detection unit is drip-proof. Submersion in a puddle, exposure to water such as in rainy or snowy environments, or exposure to high-pressure water flow or spray from high – pressure washing may cause malfunction.
・The indicator has no protection class.
Submersion in a puddle, exposure to water such as rain or snow, exposure to high – pressure water flow or spray such as high – pressure washing, or use in the hot sun or direct sunlight exceeding the operating temperature range may cause malfunction.
|
Specifications of Detector
Performance
Rated Capacity
|
3000 kg
|
Nonlinearity
|
Within ±0.1％ RO
|
Hysteresis
|
Within ±0.1％ RO
|
Repeatability
|
0.1％ RO or less
|
Rated Output
|
Approx. 1.0 mV/V
|
Environmental Characteristics
Safe Temperature
|
-20 to 70°C (Non condensing.)
|
Compensated Temperature
|
-10 to 60°C (Non condensing.)
|
Temperature Effect on Zero
|
Within ±0.01% RO/°C
|
Temperature Effect on Output
|
Within ±0.01% /°C
|
Electrical Characteristics
Safe Excitation
|
20 V DC
|
Recommended Excitation
|
1 to 10 V DC
|
Input Resistance
|
395 ±5 Ω
|
Output Resistance
|
350 ±5 Ω
|
Cable
|
4-conductor (0.3 mm2) chloroprene shielded cable, 6 mm diameter by Approx. 20 cm long, terminated with a connector plug NJW-207-AdF6
(Shield wire is connected to the case.)
|
Mechanical Properties
Safe Overloads
|
120％
|
Weight
|
Approx. 11 kg (Including cable)
|
Degree of Protection
|
IP63 (JIS C 0920/IEC 60529)
[Note] IP63 is not permanent. Waterproof performance could be decreased depending on the usage environment.
|
Dimensions
System Components
Models
|
Indicator
|
Detection unit
|
Connection Cable
|
Number of detection unit and Number of connection cable
|

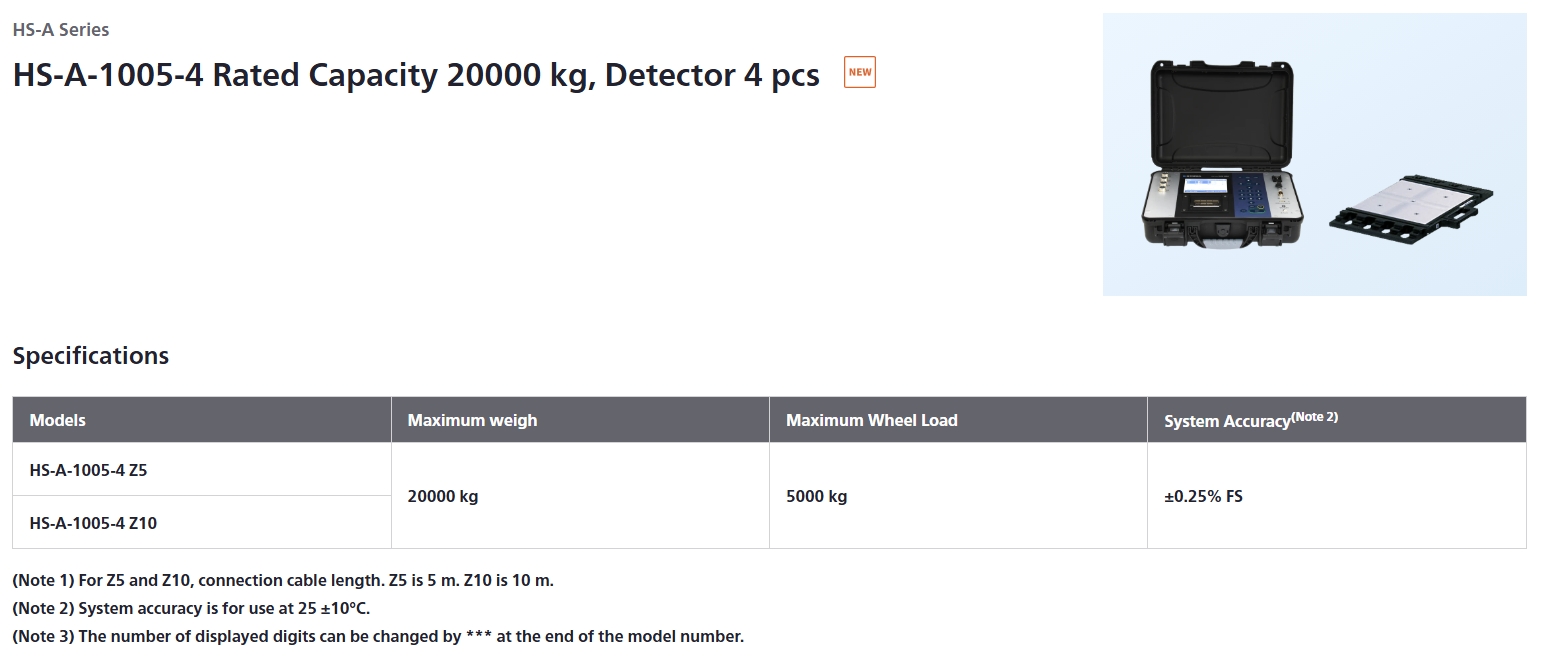

HS-A-1005-4 Z5/Z10
|
HS-M-040A
|
HS1005-N
|
Z5: HS-TT-01 Z5
or
Z10: HS-TT-01 Z10
|
4
|
Standard Accessories
- AC adapter (Included with HS-M-040A)
- For detection unit soft case
- Printer paper (Included with HS-M-040A)
- Cable bag
Indicator Specification
The specification of indicator is as below.
Indication Value
|
Integer (Standard shipping status)
(Note)
Inspection can also be performed and shipped with one decimal place.
|
Indication Content
|
・Wheel weight, Axle Weight, Left-right, weight and Total weght
Wheel weght, Axle weight and Left-right weight can be switched between [kg] and [%].
・Cross % display
Cross % display means the ratio of the weight of the right front wheel + left rear wheel and the left front wheel + right rear wheel to the total weight.
|
Print Paper
|
Thermal roll paper (Width: 58 mm, Diameter: 38 mm, Length: 19 m)
Model: TP-S245L-1
|
Supply Voltage
|
10 to 30 V DC, 30 W MAX
100 to 240 V AC (When using accessory AC adapter for charging.)
|
Operating Temperature
|
Indicator: -10 to 40°C (However, charging is 0 to 40℃)
Detection unit: -10 to 60°C
(Note)
Use in a not condensing environment. Avoid sudden temperature changes when storing and measuring.
|
Installation Location
|
The maximum display error is 1% because the acceleration of gravity differs depending on the location. Refer to the instruction manual and enter the gravitational acceleration at the location where the product will be used. If you know the gravitational acceleration of the location where the product will be used in advance, specify it when ordering.
|
Precautions
|
・Measure on a level paved surface without any unevenness on the installation surface. Do not insert objects between the installation surface and the detection unit. Doing so may adversely affect the measurement accuracy.
Check the installation surface carefully before use.
・If there is vibration during measurement, the measurement value may not be stable.
・The detection unit is drip-proof. Submersion in a puddle, exposure to water such as in rainy or snowy environments, or exposure to high-pressure water flow or spray from high – pressure washing may cause malfunction.
・The indicator has no protection class.
Submersion in a puddle, exposure to water such as rain or snow, exposure to high – pressure water flow or spray such as high – pressure washing, or use in the hot sun or direct sunlight exceeding the operating temperature range may cause malfunction.
|
Specifications of Detector
Performance
Rated Capacity
|
5000 kg
|
Nonlinearity
|
Within ±0.1％ RO
|
Hysteresis
|
Within ±0.1％ RO
|
Repeatability
|
0.1％ RO or less
|
Rated Output
|
Approx. 1.0 mV/V
|
Environmental Characteristics
Safe Temperature
|
-20 to 70°C (Non condensing.)
|
Compensated Temperature
|
-10 to 60°C (Non condensing.)
|
Temperature Effect on Zero
|
Within ±0.01% RO/°C
|
Temperature Effect on Output
|
Within ±0.01% /°C
|
Electrical Characteristics
Safe Excitation
|
20 V DC
|
Recommended Excitation
|
1 to 10 V DC
|
Input Resistance
|
395 ±5 Ω
|
Output Resistance
|
350 ±5 Ω
|
Cable
|
4-conductor (0.3 mm2) chloroprene shielded cable, 6 mm diameter by Approx. 25 cm long, terminated with a connector plug NJW-207-AdF6
(Shield wire is connected to the case.)
|
Mechanical Properties
Safe Overloads
|
120％
|
Weight
|
Approx. 20 kg (Including cable)
|
Degree of Protection
|
IP63 (JIS C 0920/IEC 60529)
[Note] IP63 is not permanent. Waterproof performance could be decreased depending on the usage environment.
|
Dimensions
Contact Sales
Spec Sheet
