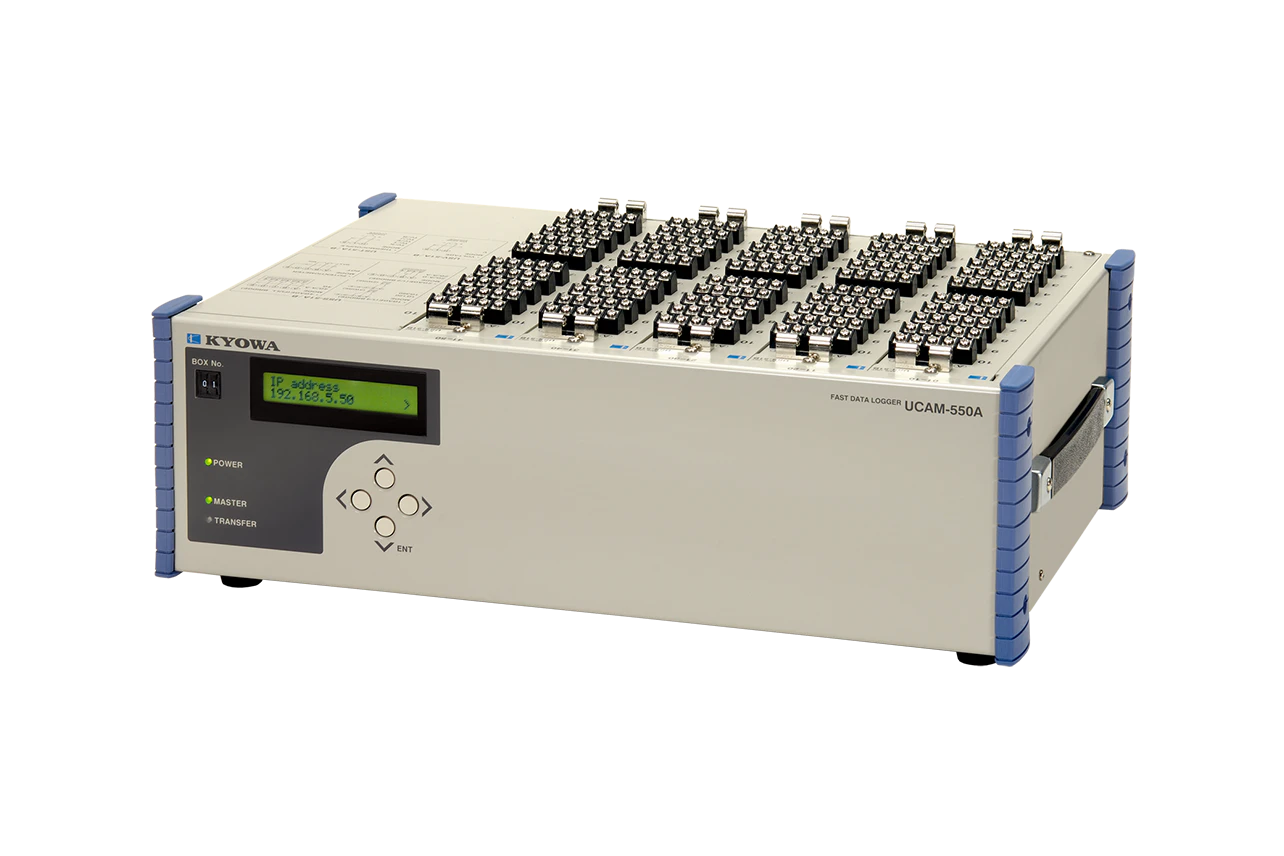

UCAM-550A Fast Data Logger
UCAM-550A is a fast data logger that repeatedly measures a maximum of 1000 channels at an interval of 0.02 s.
Because it is capable of high-speed synchronous measurement, this unit measures a wide range of phenomena, from static to dynamic phenomena.
Block diagrams:
UCAM-550A, Fast Data Logger
Channels: Maximum of 50 channels/unit
(Possible up to 5 units of the measuring unit)
(Each measuring unit measures 10 channels.)
Measurement is possible of up to 1000 channels at maximum by adding an optional software DCS-106A.
Sampling Frequencies: 1, 2, 10, 20, and 50 Hz
USM-51B, Strain/Voltage/Thermocouple Unit, 10 channels
Input Tereminals: NDIS 4102 (7 pins) connectors, and screw soldering terminal blocks
Measuring Targets:
- Strain gages,
- Strain-gage Transducers,
- Potentiometer-type sensors,
- Voltage,
- Thermocouples
USM-52B, Strain/Voltage/Thermocouple Unit, 10 channels
Input Terminals: NDIS4102 (7 pins) connectors, and one-touch terminal blocks
Measuring Targets:
- Strain gages,
- Strain-gage Transducers,
- Potentiometer-type sensors,
- Voltage,
- Thermocouples
USS-51B, Strain Unit, 10 channels
Measuring Targets:
- Strain gages,
- Strain-gage Transducers,
- Potentiometer-type sensors,
UST-51B, Thermocouple Unit, 10 channels
Measuring Targets: Temperature (Thermocouples)
USV-51B, Voltage Unit, 10 channels
Measuring Targets:
- DC voltage,
- Voltage output type sensors
