IR-TCM HD Basic Series

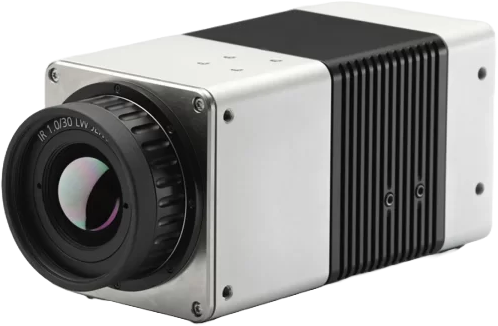

The IR-TCM HD Basic thermography camera is the entry-level model from Jenoptik for professional use in stationary or mobile systems. The thermal imager is based on state-of-the-art sensor technology with 17 µm pitch and optimized lenses.

  • Microbolometer detector with (640 × 480) IR pixels
  • GigE Vision interface
  • Robust light metal housing (IP67)
  • Wide range of lenses
  • Convenient camera control and data acquisition
  • Made in Germany


Stationary thermography cameras for maximum measuring accuracy

These infrared cameras have proven their quality in industrial applications and are easy to integrate into existing plants and systems.

Jenoptik offers a whole range of thermography cameras for stationary use, for example in industrial plants or mobile systems. These cameras feature state-of-the-art technology and are the product of our many years of expertise in high-quality thermography technology. We have been developing and producing thermal imagers for a wide range of applications for more than 25 years. When it comes to resolution, the 3.1 IR megapixels offered by our devices make us the global technological market leader.

The cameras can be used to measure temperature distributions on surfaces with maximum accuracy. The data is transferred to an external computer in real time, enabling detailed visualizations and analyses to be performed. Standard interfaces such as WLAN, DVI-D and GigE Vision ensure the infrared camera is easy to integrate into your own system. In solar power plants, for example, the camera can be used to measure the temperature on the absorber to prevent it from overheating.

The measuring method is non-contact and extremely accurate: A high spatial resolution thanks to the dynamic resolution enhancement function ensures precise results. This method increases the resolution and makes even the smallest details visible. Jenoptik has extensive expertise in the application of resolution-based technology in radiometric thermal imagers and is constantly refining this technology. All thermography cameras are fitted in robust housings that protect them against damage. As uncooled Jenoptik thermal imaging technology requires very little maintenance, there are hardly any follow-up costs.


  • Precise: Maximum measuring accuracy thanks to a high spatial resolution and exceptionally accurate calibration.
  • Efficient: Wide measuring ranges are captured in high resolution.
  • Durable: Stable housing, uncooled Jenoptik camera technology requires minimal maintenance.
  • Flexible: Wide range of connection options enable the thermography camera to be installed in customer-specific systems.
  • Fast: Radiometric imaging in real time.
  • Modular: Choose from a wide range of high-quality infrared optical systems

Fields of application

  • Electronics industry and automotive industry: Quality control and assurance, process control, optimization and monitoring.
  • Research and development: Non-destructive testing of materials and components.
  • Renewable energies: Solar power plants, aerial photography, environmental monitoring.
  • Automation technology: Thermal test benches, process monitoring, optimization and control.
  • Process monitoring in the raw materials industry: Plant monitoring and plant safety.
  • Security technology: Site surveillance, fire protection.
  • Thermal aerial photography: Geology studies and environmental monitoring.

Infrared optics and lenses

For IR-TCM HD infrared cameras we offer a broad choice of lenses and converters suitable for various thermal imaging applications.

Each thermographic camera from Jenoptik is individually calibrated for the lenses purchased with the camera. If you are changing the lens, the camera automatically detects the lens type and selects the corresponding calibration profile.

Lenses are available either with IP54 proof bayonet mount or with IP67 proof thread mount.

All lenses are manufactured by Jenoptik and come with sophisticated optical coating, for example anti-reflective coating or spectral-selective interference filters. Depending on lens type or focal length, some lenses are additionally coated with a highly resistant DLC (Diamond Like Carbon) coating for special surface protection.

Tech­nical Specific­a­tions

Spectral range (7.5 … 14) µm
Detector Uncooled Microbolometer Focal Plane Array
Detector format (IR pixels) (640 × 480)
Temperature measuring range (-40 … 600) °C, up to 1,700 °C*
Measurement accuracy ± 2 °C or ± 2 %
Temperature resolution @ 30 °C Up to 0.03 K*
Frame rate Full-frame: 30 Hz (640 × 480), sub-frame: 60 Hz (384 × 288)
Window mode * Yes
Storage media SDHC Card, external control computer for camera control and data acquisition*
Image storage Time-, trigger- and temperature controlled recording of 16 bit single frames or image sequences with timestamp, video streaming in MPEG format
Lens mount Automatic objective detection
Focus Motor-driven, automatic or manual, accurately adjustable
Zoom Up to 32× digital, stepless
Dynamic range 16 bit
Interfaces GigE-Vision* | DVI-D (HDMI) | C-Video | RS232 | USB 2.0 | WLAN* | Process interface*
Trigger * 2 × digital I/O, 2 × analogue I/O
Tripod adapter 1/4″ photo thread
Power supply AC adapter, (12 … 24) V DC, PoE*
Storage and operation temperature (-40 … 70) °C, (-25 … 55) °C
Protection degree IP54, IEC 60529, IP67 with screw-on interface*
Impact strength/vibration resistance in operation 25 G (IEC 68 – 2 – 29), 2 G (IEC 68 – 2 – 6)
Dimensions; weight (221 × 90 × 94) mm; 1.15 kg (basic configuration with standard lens)
Further functions Camera internal emissivity correction, shutter free operation, temperature alarm
Analysis and evaluation software* * IRBIS® 3, IRBIS® 3 plus, IRBIS® 3 professional, IRBIS® 3 view, IRBIS® 3 remote, IRBIS® 3 online, IRBIS® 3 process, IRBIS® 3 vision, IRBIS® 3 active, IRBIS® 3 mosaic
Depending on model
