GUIDE Infrared

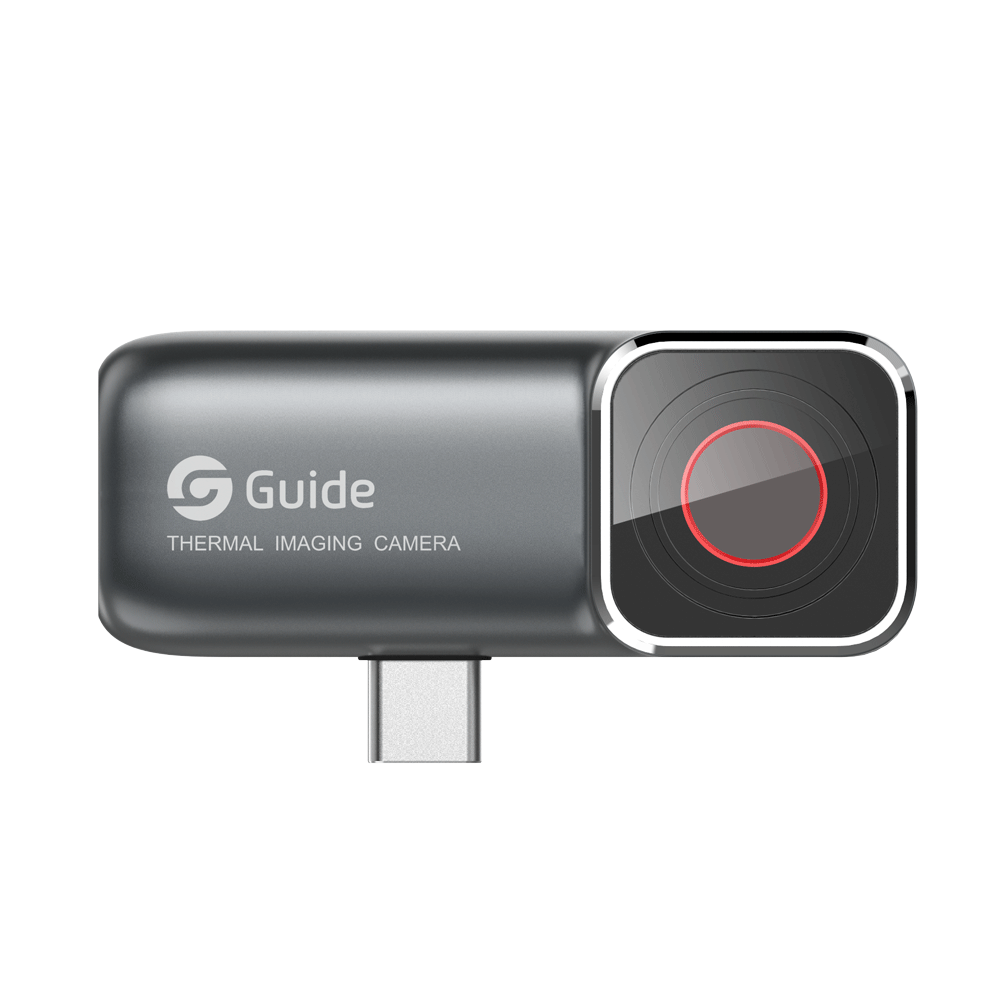

MobIR 2S

Thermal Camera for Smartphone

MobIR 2 series is a new generation of infrared thermal imager for smartphone launched by Guide sensmart. Built-in the world’s first autofocus WLP infrared module, with higher resolution and performance comparable to professional thermal imaging cameras. This product allows you to see things that you can’t see with the naked eye, it can realize real-time temperature measurement, night vision, photography, video and other functions through the mobile phone APP. It is an all-round partner for your daily work, home life and adventure travel.

256×192IR resolution

7mmFocus

25°FOV

AutofocusFocus method

Description

Versatile Thermal Camera for Smartphone

•100-meter night vision- It helps you clearly identify people and animals hundreds of meters away in the darkness field

•Autofocus- Clearly no matter near or far

•Plug and play- Battery-free design, Easy to use

•±2℃ Conventional temperature measurement accuracy, comparable to professional testing tools.

•Human Temperature Measurement- Quickly screen human temperature, a good helper for epidemic prevention

The World’s First Autofocus,Infrared Thermal Camera for Smartphone

MobIR 2 built-in world’s first autofocus WLP infrared module. Whether the subject is static or moving, you can automatically focus on it by touching the screen to quickly produce clear thermal images.

Resolution 256×192,Rich and Clear Details

256×192@12μm indigenously developed WLP encapsulated infrared detector, 49,152 temperature points are presented with cutting-edge technology, high-definition thermal imaging, 4x upgrade.

Durable, powered by your smartphone

•Battery-free design, Plug and play,Easy to use

•Low power consumption, Continue working more than 3hrs

±2°C Accuracy, Comparable to Industrial-Class Testing tools

Industrial-class accuracy of ±2°C for temperature measurement, up to 3 spots, 1 line and 2 areas of subjects to be analyzed simultaneously; newly upgraded APP view for conventional temperature measurement, which shows temperature of subjects more intuitively without interference with each other.

Over 100 Meters of Outdoor Night Vision for Seeing Further and More Clearly

MobIR 2 helps you clearly identify people and animals hundreds of meters away in the darkness field, which is helpful in safe exploration and efficient search and rescue. Long range night vision is more meaningful under seeing clearly.

Technical Parameters

Model MobIR 2S

Imaging and Optics
Detector Type and Pitch WLP, 12 µm
IR Resolution 256×192
Spectral Range 7.5 to 14μm
FOV 25°
Focus Automatic
Measurement and Analysis
Measurement Range -20℃-150℃
Measurement Accuracy ± 2 ° C or ± 2% of the reading
