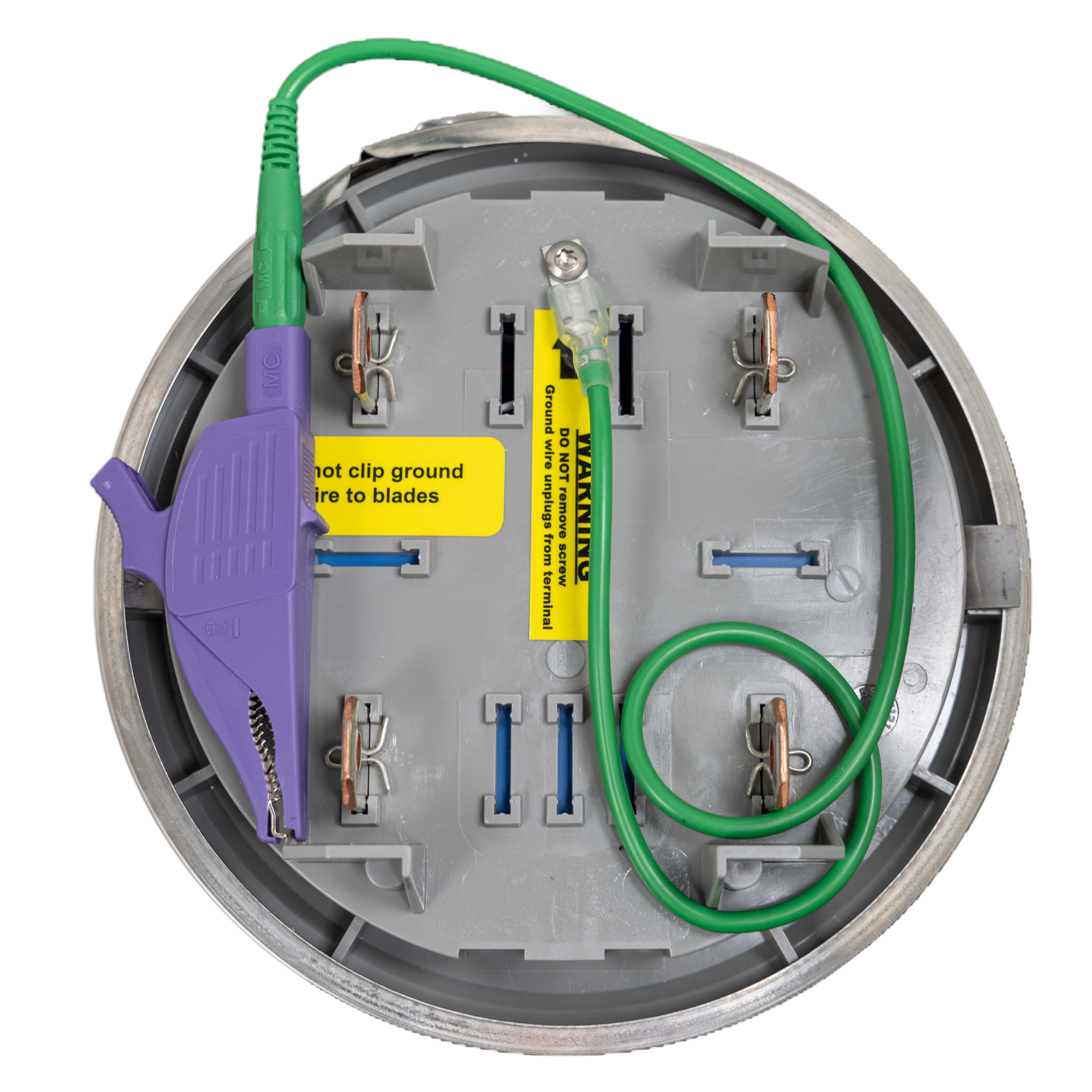

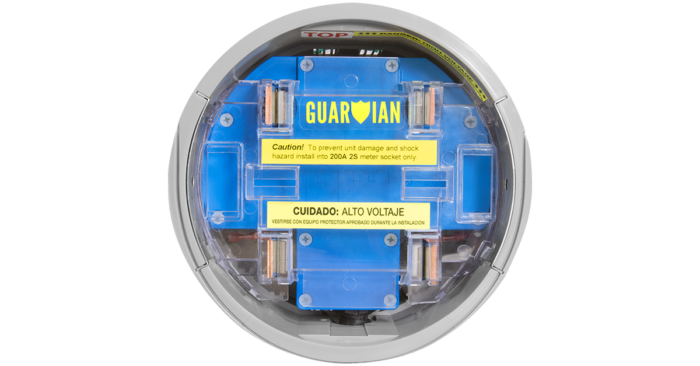

Description
Inputs
AC Voltage 0 to 150 per channel
AC Current 200 Amps RMS
Sample Rate 256 samples/cycle/channel
Channels
Voltage 2 channels
Current 2 channels
Measured Quantities Per Cycle
RMS Voltage Volts
RMS Current Amps
Real Power Watts
Apparent Power VAs
Reactive Power VARs
Phase Angle Degrees
Power Factor Watts/VA
Displacement PF cos (phase angle)
Power Usage kWh, kVARh, kVAh
Accuracy
Voltage 0.33% of full scale
Current 1.0% of full scale
Power 1.0% of full scale
Phase Angle 1.0°
Power Factor ±0.02
Displacement PF ±0.02
Power Fail Operation
The recorder can operate without any input voltage for up to 1 minute. This allows it to to send alerts and messages during an interruption.
Harmonics
Voltage to the 51st
Current to the 51st
Measures Magnitude, phase, THD
Communications
Standard USB
Cell modem (Optional)
WiFi (Optional)
Information Storage
Data Storage 16 MB (Standard); 128 MB, 512MB or 1 GB (Optional)
Significant Change 1000 records
Flicker 1000 records
Record Settings
Interval Graphs 1 cycle to 4 hour interval, user selected, stop-when-full or wrap-around memory modes
Significant Change 1V to 8V in 1V steps
Flicker Settings User-defined, or conform to IEEE 1453/IEC 61000-4-15, and IEEE Std. 141
Waveform Capture Voltage and current threshold, periodic capture, waveshape, event cross triggers
Power Supply Requirements
Power Consumption Less than 5 watts
Environmental
Operating Temp -20°F to +135°F
Shock 60 Hz to 2 kHz, acceleration 25G
Vibration 10Hz to 60Hz, amplitude 1.8mm

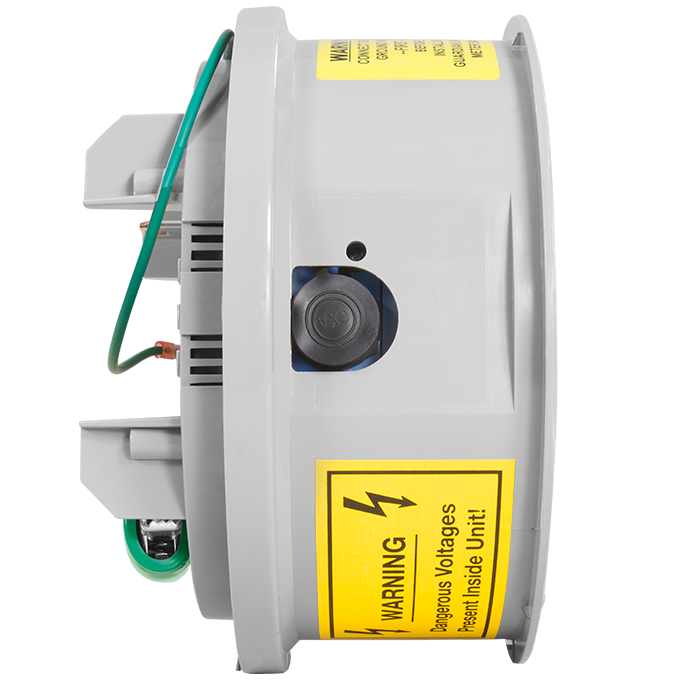

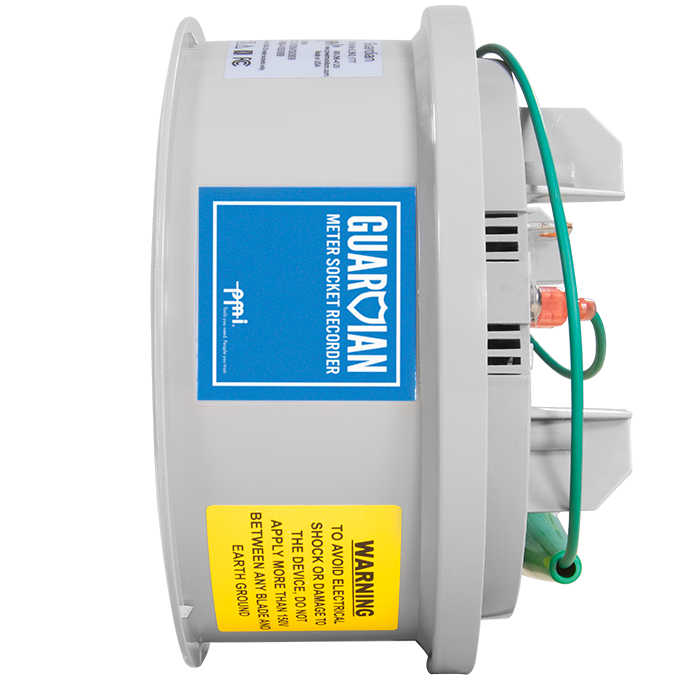

Physical Dimensions
Size 4.625” L x 6.75” W
Weight 2.1 Lbs
